Connectors
Angle Brackets

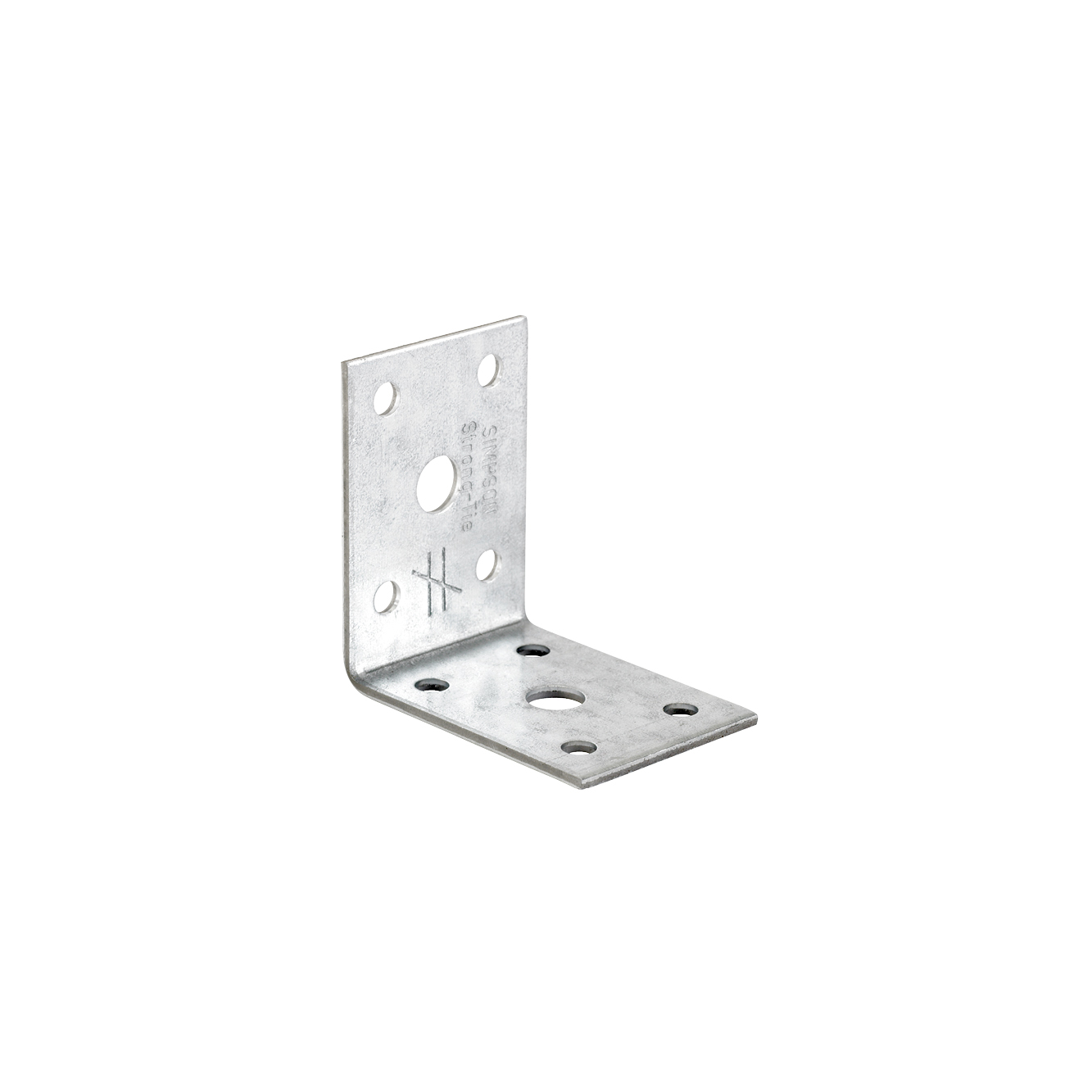

AC35350

AC35350

For uniform load is recommended to use two angles for each joint. Combination wood / wood or wood / construction joints



Technical Data Sheet
Service class 2

Product Details

Images

AC35350 inst..jpg

Features

Material

Steel quality:

S250GD + Z275 according to DIN EN10346

Corrosion protection:

275 g / m galvanized on both sides 20mm

Benefits

• Compact bracket
• Various connections nails, screws, etc.

Application

Applicatons

Wood, wood products, concrete



Scope

• For joints wood / wood small cross, windows, windowsills



Technical Data

Dimensions


Product Dimensions

References Tun / DB nr. NOB nr. Product Dimensions [mm] Joist Holes flange B Box Quantity
A B C t Ø5 Ø8,5 Ø5 Ø8,5
AC3535052940822899851650503524141100

Installation

Installation

Fasteners

• Fasten nails or screws CNA4,0xl CSA5,0xl
• For installation in concrete anchor bolts in concrete M8

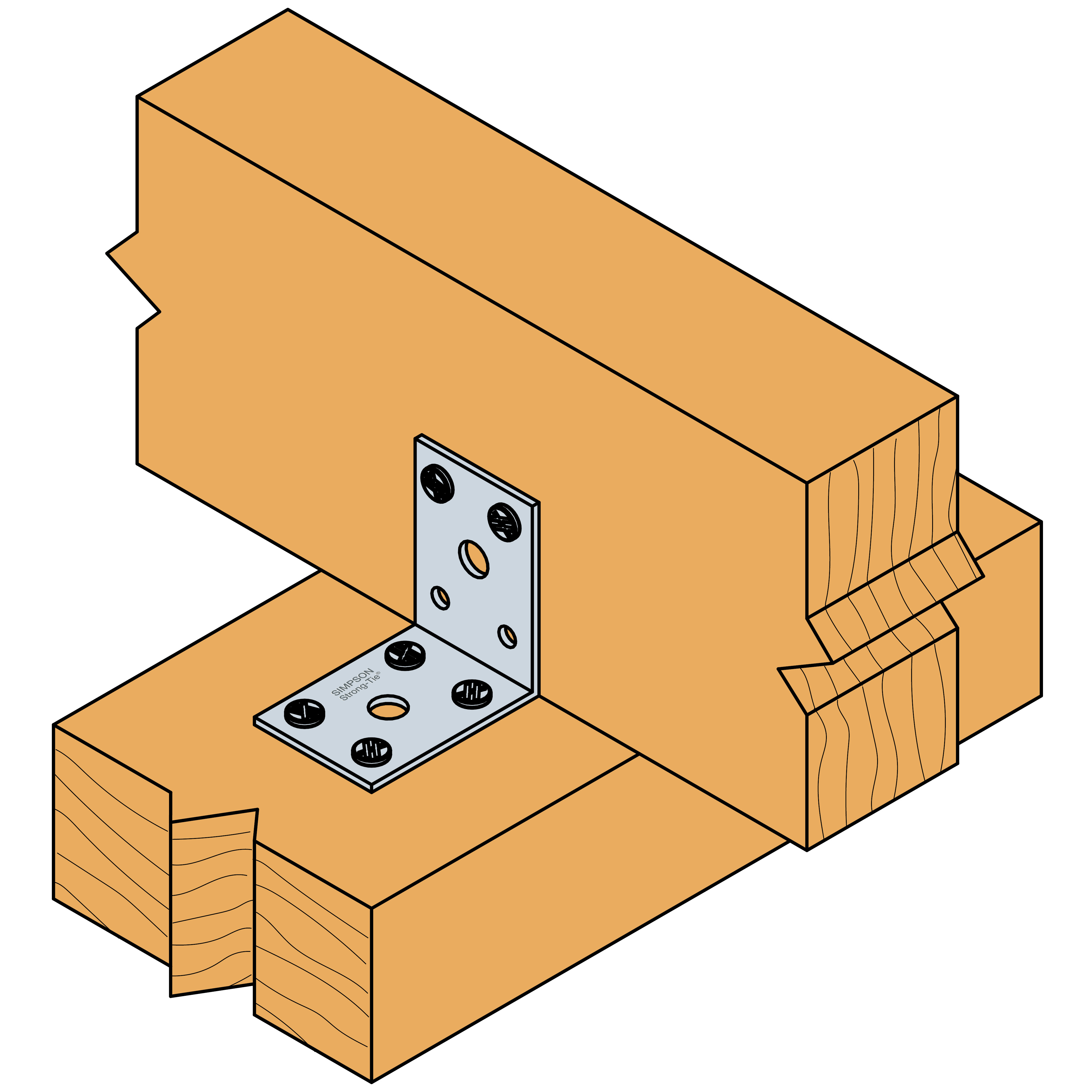

AC35350 inst..jpg
