AA60280

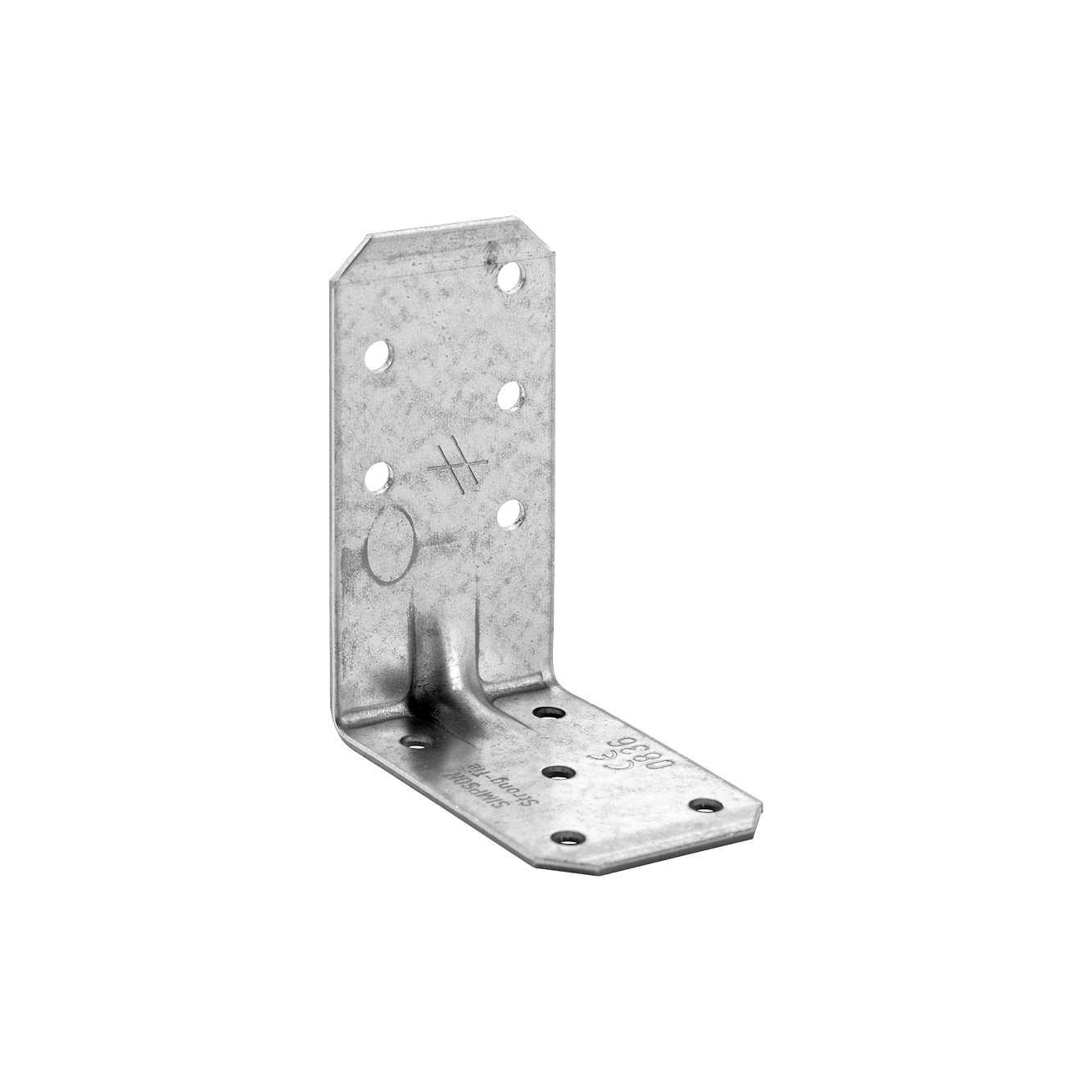

Angle bracket
The AA angle bracket with a small rib are made of 2.0mm galvanized sheet steel.
CE Marking
ETA
Service class 2
Product Details
Features
Material
Steel quality:
Quality steel-S250GD + Z275 according to DIN EN10346
Corrosion protection:
275 g / m galvanized on both sides 20mm
Benefits
- Have various uses, especially in places where they are to be made stable joints with small size timber.
- Load capacity in all directions
Application
Applicatons
Supporting member:
Solid wood, engineered wood
Supported member:
Solid wood, engineered wood
Scope
- They are used inter alia for coupling cross beams at smaller timber construction .
- They are used for coupling cross beams at smaller wooden structures
Technical Data
Product capacities
References | Product capacities - Timber to timber - Full nailing | |||||||
---|---|---|---|---|---|---|---|---|
Number of Fasteners | Characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||||
Joist | Flange B | R1.k | R2.k = R3.k | R4.k = R5.k | ||||
Qty | Qty | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
AA60280 | 5 | 5 | 2.9 | 4.5 | 4.1 | 6.2 | min (1,4; 1,3 / kmod ) | min (2,2; 2,1 / kmod ) |
* Capacity information for b = 80 mm and e = 120 mm
Design
For the superimposition of the action be proved:
Product capacities - simplified
References | Simplified product capacities - Timber to timber – Full nailing | |||||||
---|---|---|---|---|---|---|---|---|
Number of Fasteners | Simplified characteristic capacities - Timber C24 - 2 angle brackets per connection [kN] | |||||||
Joist | Flange B | R1.k | R2.k = R3.k | |||||
Qty | Type | Qty | Type | CNA4.0x40 | CNA4.0x60 | CNA4.0x40 | CNA4.0x60 | |
AA60280 | 5 | CNA | 5 | CNA | 2.9 | 4.6 | 4.1 | 6.1 |
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – kmod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities
