ACR4712
Angle bracket

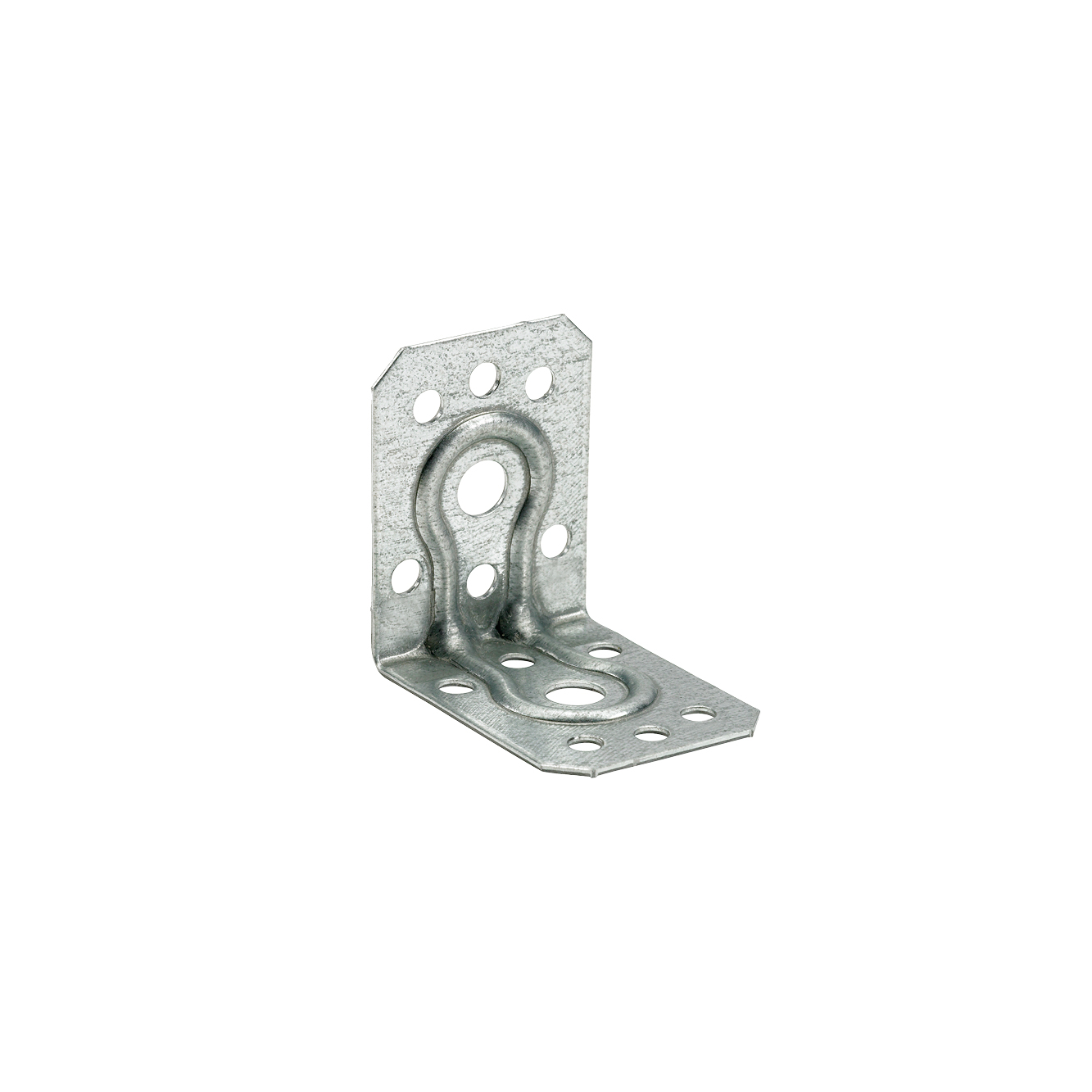

ACR4712 angle brackets are used for smaller timber dimensions in wood-wood assemblies or for assembly between wooden beam and concrete.
Each assembly requires two angle brackets.
Service class 2
Product Details
Images
Features
Application
Technical Data
Dimensions
Product Dimensions
| References | DB. nr. | NOB nr. | Dimensions [mm] | Joist | Holes flange B | Box Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | t | Ø5 [mm] | Ø8 [mm] | Ø5 [mm] | Ø8 [mm] | ||||
| ACR4712 | 1544663 | 45155952 | 48 | 48 | 37 | 1.25 | 5 | 1 | 5 | 1 | 100 |
