BNSP

BNSP - winbracing system

BNSP clamping device must be permanently mounted and tightened.

Technical Data Sheet

CE Marking

ETA

Service class 2

Electrogalvanized steel Z275

Product Details

Images

Features

Material

Steel quality:
S 250 GD + Z 275 according to DIN EN 10346
Corrosion protection:
275 g / m galvanized on both sides 20mm
• Screws: Quality 8.8
• Trn:
Steel quality:
S 235 JR according to EN 10025 DIN
Corrosion protection:
Galvanizing layer thickness of about 55 microns in accordance with DIN EN 1461

Benefits

• Connection tapes with other clamping elements and the subsequent withdrawal.
• When using any screws or pins are the ultimate common connector always more than just connecting tape

Application

Applicable materials

• Fasteners BNK, BNF, BNG

Application area

• From an economic application of Simpson Strong-Tie bracing belt, there are other products that have been developed for simple solutions to connectivity problems. In summary, the products of this group are called bracing systems
• They are available for the respective widths 25, 40 and 60 mm
• To connect the 80 mm tapes up to 60 items of the system can be used.
• bracing system can be easily clamped by means BNSP or products BNF or BNK BNG (see following pages)
• When turning threaded rods right / left hand, there is another option tension.

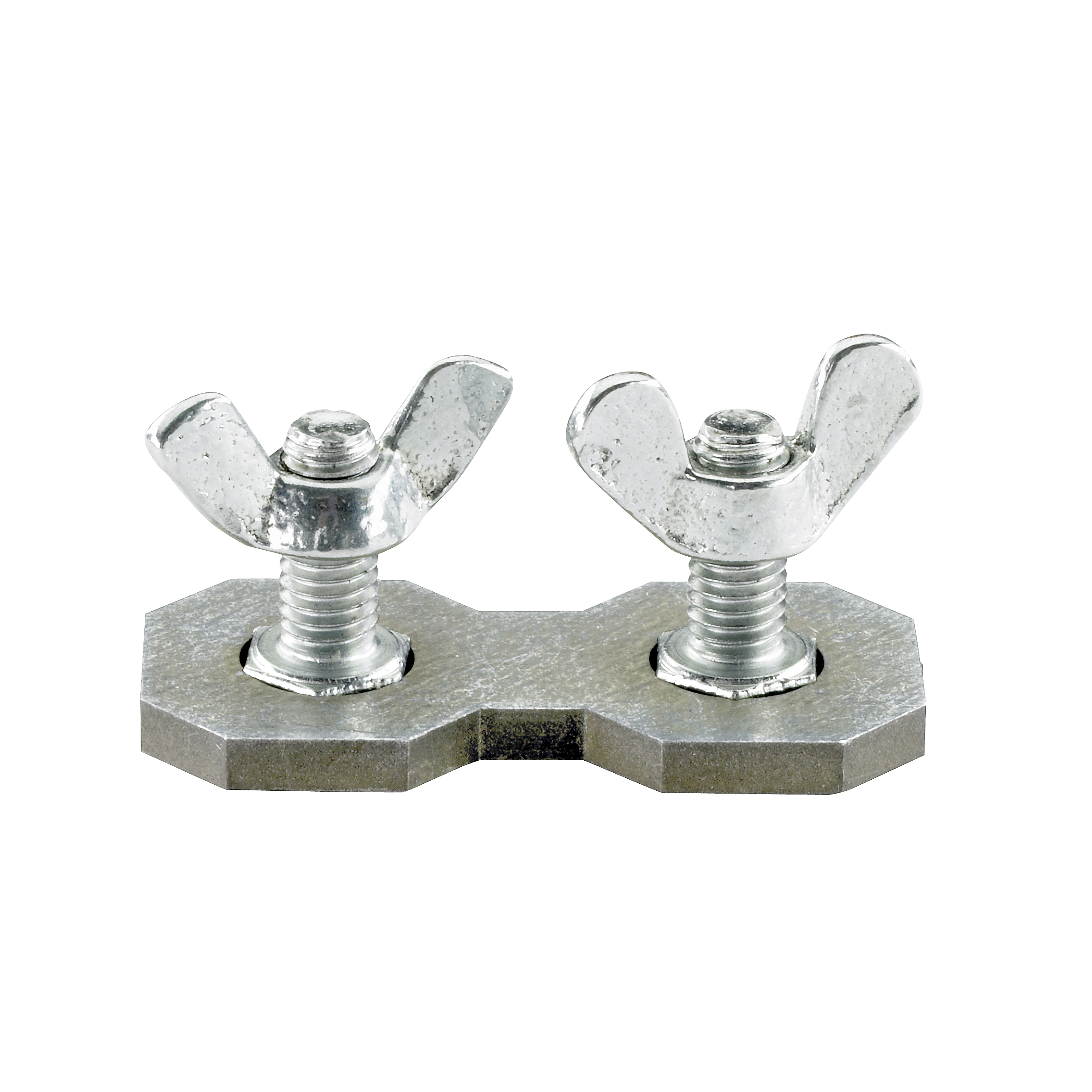

• The connection between the connection lugs of the belt is achieved CLIPS20 or CLIPS23 on other products cotter

Technical Data

Dimensions

Dimensioner

References	DB. nr.	NOB nr.	Dimensions [mm]			Holes			Passende bånd	Medleverede skruer/clips	Båndspænder fastgjort til		Antal pr. kasse
References	DB. nr.	NOB nr.	A	B	C	Ø	Venstre (antal)	Højre (antal)	Passende bånd	Medleverede skruer/clips	Bånd	BNF: BNG: BNK	Antal pr. kasse
BNSP25	-	-	265-305	30	25	5 + 6.5	6 + 2	6 + 2	BANxx20xx; BANxx25xx	4 x M6; 6 x M5	x	-	-
BNSP40-B	-	-	300-350	40	28	5	5	5	BANxx40xx	4 x BF4060M5	x	-	-
BNSP60-B	-	-	300-350	60	35	5	7	7	BANxx60xx	4 x BF4060M5	x	-	4
BNSP80-B	8271264	21217146	300-360	80	35	5 + 21	11 + 0	8 + 1	BANxx80xx	2 x BF4060M5; 4 x BF25M5	x	x	4
BNSP4060B-B	-	-	350-400	60	35	5 + 21	7 + 0	0 + 1	BANxx40xx ; BANxx60xx ; BANxx80xx	2 x BF4060M5; 1 x Ø20*	-	x	4
BNSP25B	-	-	265-305	30	25	5 + 6.5 + 12.5	6 + 2 + 0	0 + 0 + 1	BANxx20xx; BANxx25xx	2 x M6; 3 x M5	-	x	-
