C2 - C4

Bulldog-sided C2-C4

Anchor blade, which is used to join two pieces of timber with pin.

Technical Data Sheet

CE Marking

Service class 3

Outdoor

Galvanised steel

Product Details

Images

Features

Material

• DC01

Benefits

Wood-steel and wood, wood joints.
The pins must fit snugly, directly involved in the transfer of power.

Application

Applicatons

wood

Scope

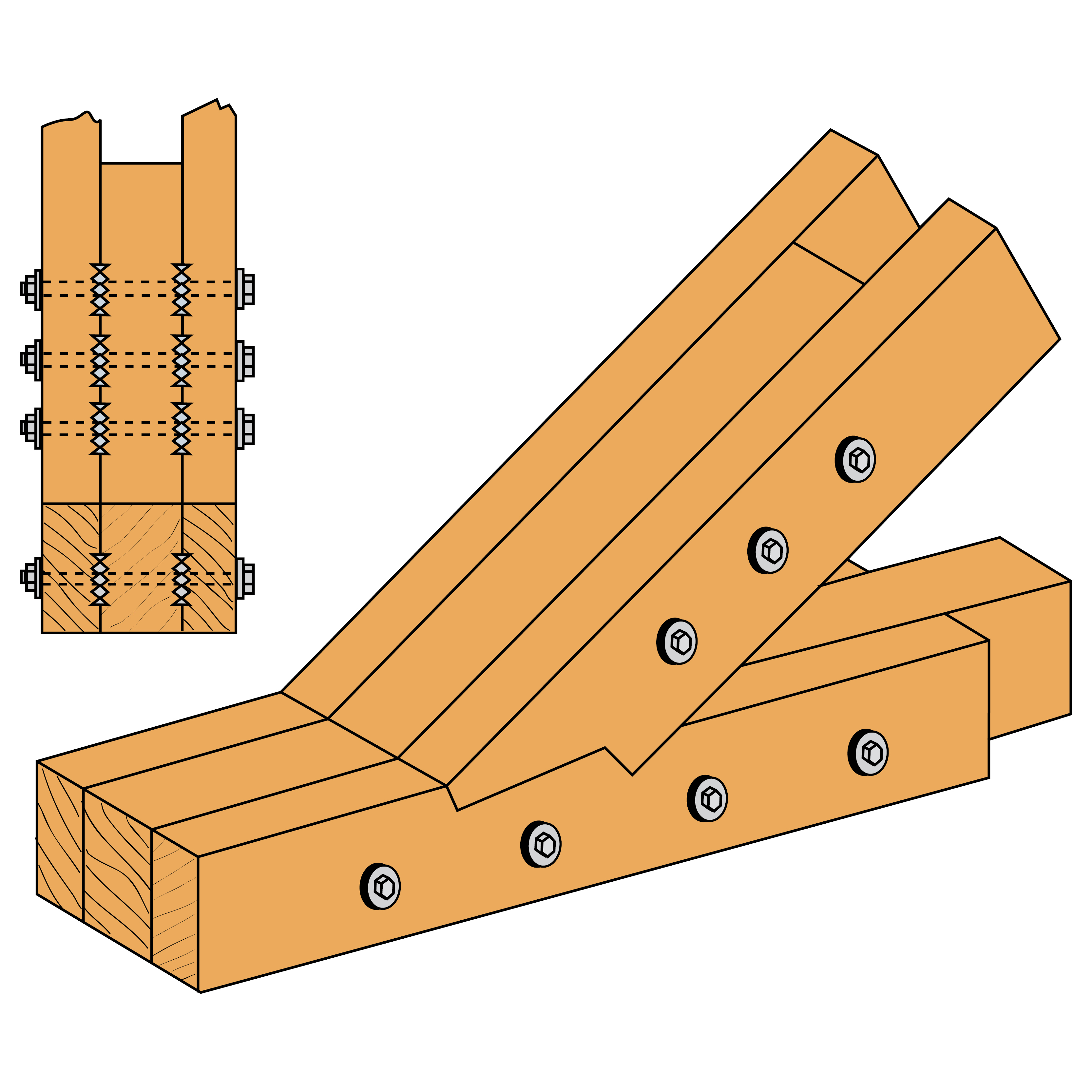

• purlins, other wooden joints

Technical Data

Dimensions

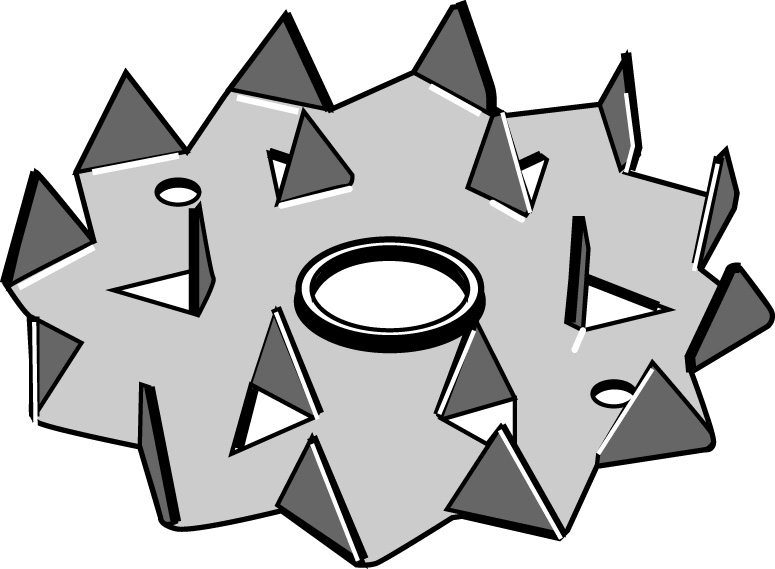

Dimensions - Round single sided C2

References	Type	Tun / DB nr.	NOB nr.	Connector dimensions [mm]
				Diameter		Height		Thickness
				External	Center hole	Teeth	Total	t
				d_c	d₁	h₁	h_c	t
C2-50M10G-B	C2	8978397	24794026	50	10.4	5.6	6.6	1
C2-50M12G	C2	8271306	24794034	50	12.4	5.6	6.6	1
C2-50M12G-B	C2	-	-	50	12.4	5.6	6.6	1
C2-50M16G-B	C2	8271314	24794042	50	16.4	5.6	6.6	1
C2-50M20G-B	C2	8978405	24794059	50	20.4	5.6	6.6	1
C2-62M12G	C2	8271322	24794067	62	12.4	7.5	8.7	1.2
C2-62M12G-B	C2	-	-	62	12.4	7.5	8.7	1.2
C2-62M16G-B	C2	8271330	24794075	62	16.4	7.5	8.7	1.2
C2-62M20G-B	C2	8271348	24794083	62	20.4	7.5	8.7	1.2
C2-75M12G	C2	8978413	24794091	75	12.4	9.2	10.4	1.3
C2-75M12G-B	C2	-	-	75	12.4	9.2	10.4	1.3
C2-75M16G-B	C2	8271355	24794109	75	16.4	9.2	10.4	1.3
C2-75M18G	C2	-	-	75	18.4	9.2	10.4	1.3
C2-75M20G-B	C2	8271363	24794117	75	20.4	9.2	10.4	1.3
C2-75M22G	C2	8978439	24794125	75	22.4	9.2	10.4	1.3
C2-75M24G	C2	8978447	24794133	75	24.4	9.2	10.4	1.3
C2-75M26G	C2	-	-	75	26.4	9.2	10.4	1.3
C2-95M16G-B	C2	8271371	24794158	95	16.4	11.4	12.7	1.4
C2-95M20G-B	C2	8978462	24794166	95	20.4	11.4	12.7	1.4
C2-95M22G-B	C2	8978470	24794174	95	22.4	11.4	12.7	1.4
C2-95M24G-B	C2	8978488	24794182	95	24.4	11.4	12.7	1.4
C2-95M26G	C2	-	-	95	26.4	11.4	12.7	1.4
C2-117M16G	C2	8271389	24794208	117	16.4	14.5	16	1.5
C2-117M20G-B	C2	8271397	24794216	117	20.4	14.5	16	1.5
C2-117M22G-B	C2	8978504	24794224	117	22.4	14.5	16	1.5
C2-117M24G-B	C2	8978512	24794232	117	24.4	14.5	16	1.5
C2-117M26G	C2	8978520	24794240	117	26.4	14.5	16	1.5

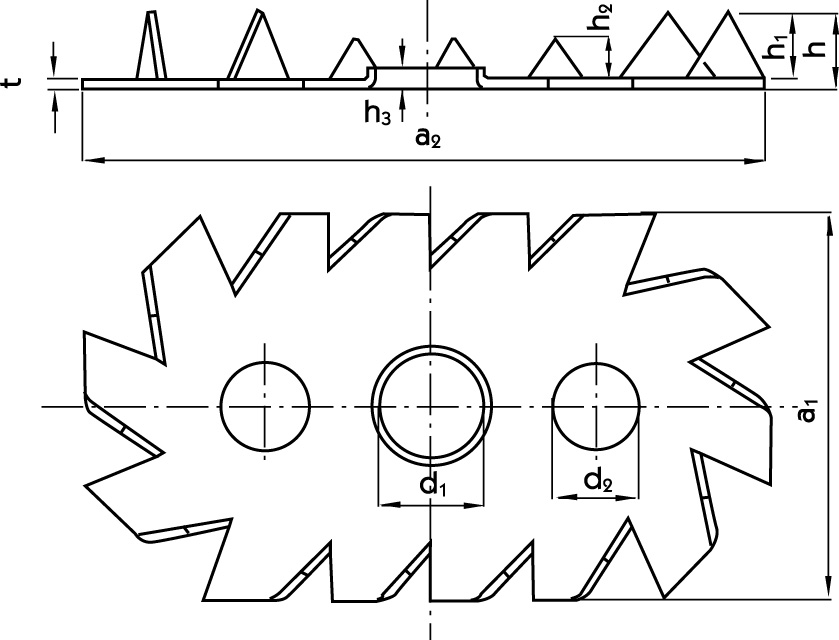

Dimensions - Oval single sided C4

References	Type	Tun / DB nr.	NOB nr.	Connector dimensions [mm]
				Diameter		Height		Thickness	a₁	a₂
				Center hole	Side holes	Teeth	Total	t
				d₁	d₂	h₁	h_c	t
C4-73/130M16G	C4	-	-	16.4	16	13.3	14.8	1.5	73	130
C4-73/130M20G-B	C4	5650023	24794265	20.4	16	13.3	14.8	1.5	73	130
C4-73/130M22G	C4	-	-	22.4	16	13.3	14.8	1.5	73	130
C4-73/130M24G	C4	5650049	24794281	24.4	16	13.3	14.8	1.5	73	130

Minimum distances and characteristic values

References	Type	Bolt Ø	Chosen timber thickness		Minimum distances [mm]						Characteristic shear resistance (bolt resistance not included)
		d_b [mm]	t₁ [mm]	t₂ [mm]	Spacing parallel to grain	Spacing perpendicular to grain	from loaded end	from unloaded end	from loaded edge	from unloaded edge	R_v.k [kN]
		d_b [mm]	t₁ [mm]	t₂ [mm]	a_1 α=0°	a₂	a_3.t	a_3.c α=90°	a_4.t α=90°	a_4.c	R_v.k [kN]
C2-50M10G-B	C2	10	17	28	75	60	75	75	40	30	6.4
C2-50M12G	C2	12	17	28	75	60	75	75	40	30	6.4
C2-50M12G-B	C2	12	17	28	75	60	75	75	40	30	6.4
C2-50M16G-B	C2	16	17	28	75	60	75	75	40	30	6.4
C2-50M20G-B	C2	20	17	28	75	60	75	75	40	30	6.4
C2-62M12G	C2	12	23	38	93	75	93	93	50	38	8.8
C2-62M12G-B	C2	12	23	38	93	75	93	93	50	38	8.8
C2-62M16G-B	C2	16	23	38	93	75	93	93	50	38	8.8
C2-62M20G-B	C2	20	23	38	93	75	93	93	50	38	8.8
C2-75M12G	C2	12	28	46	113	90	113	113	60	45	11.7
C2-75M12G-B	C2	12	28	46	113	90	113	113	60	45	11.7
C2-75M16G-B	C2	16	28	46	113	90	113	113	60	45	11.7
C2-75M18G	C2	18	28	46	113	90	113	113	60	45	11.7
C2-75M20G-B	C2	20	28	46	113	90	113	113	60	45	11.7
C2-75M22G	C2	22	28	46	113	90	113	113	60	45	11.7
C2-75M24G	C2	24	28	46	113	90	113	113	60	45	11.7
C2-75M26G	C2	26	28	46	113	90	113	113	60	45	11.7
C2-95M16G-B	C2	16	35	57	143	114	143	143	76	57	16.7
C2-95M20G-B	C2	20	35	57	143	114	143	143	76	57	16.7
C2-95M22G-B	C2	22	35	57	143	114	143	143	76	57	16.7
C2-95M24G-B	C2	24	35	57	143	114	143	143	76	57	16.7
C2-95M26G	C2	26	35	57	143	114	143	143	76	57	16.7
C2-117M16G	C2	16	44	73	176	141	176	176	94	71	22.8
C2-117M20G-B	C2	20	44	73	176	141	176	176	94	71	22.8
C2-117M22G-B	C2	22	44	73	176	141	176	176	94	71	22.8
C2-117M24G-B	C2	24	44	73	176	141	176	176	94	71	22.8
C2-117M26G	C2	26	44	73	176	141	176	176	94	71	22.8
C4-73/130M16G	C4	16	40	67	146	117	146	146	78	59	17.3
C4-73/130M20G-B	C4	20	40	67	146	117	146	146	78	59	17.3
C4-73/130M22G	C4	22	40	67	146	117	146	146	78	59	17.3
C4-73/130M24G	C4	24	40	67	146	117	146	146	78	59	17.3

The given characteristic shear resistance per shear plane R_v.k is calculated according to the minimum distances given in this table and for timber grade C24. This capacity can be increased with a higher a_3.t or a higher timber grade (see k₂ and k₃ factor according to EN1995). For lower t₁ or t₂, please refer to EN1995. The characteristic bolt shear resistance is not included and should be added.
