ETB

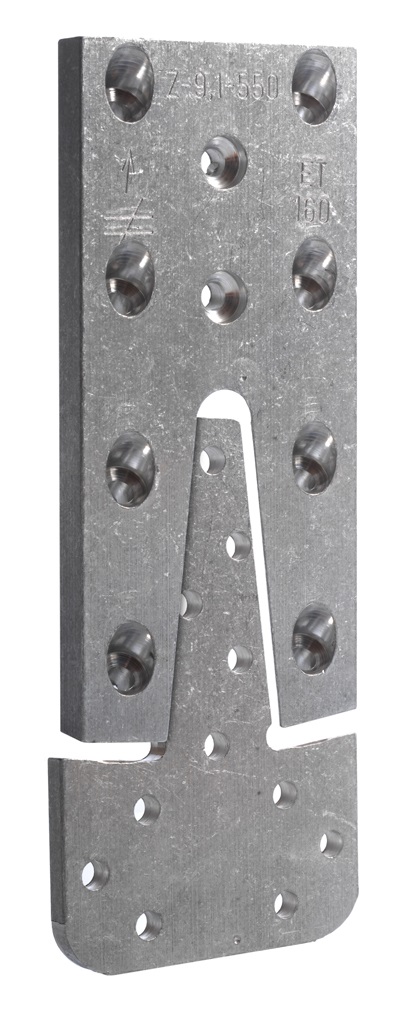

Concealed Beam Hanger
The ETB concealed connector comes in two parts. The first is pocketed in the header timber and fixed with nails, while the second part is fitted to the end of the beam with screws.
No slots or dowel holes are necessary, speeding up production.
Note: Order nails and screws separately.
CE Marking
ETA
Service class 2
Fire resistance R 30
Aluminium
Product Details
Images

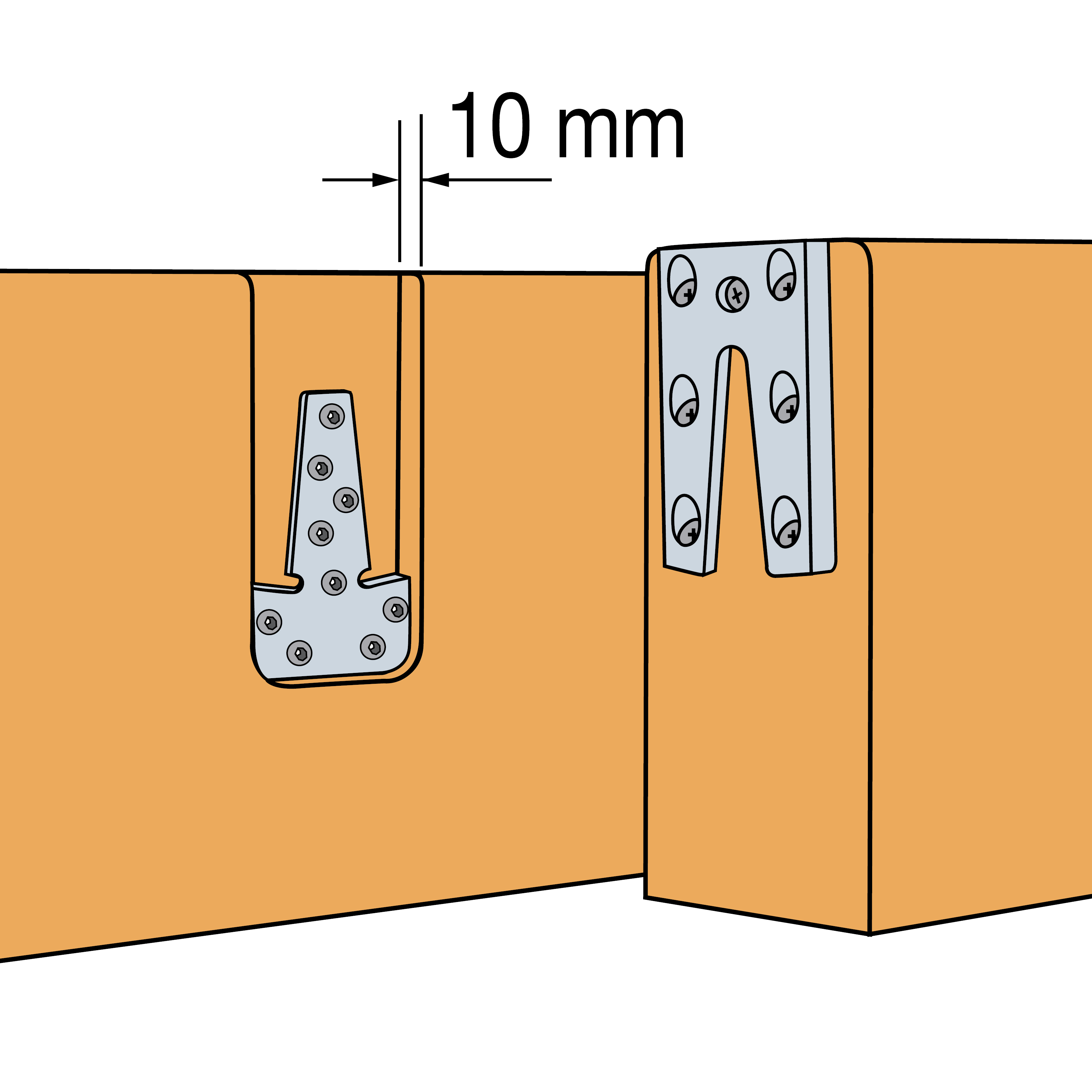

Countersunk within the supported member.
Face fix installation.

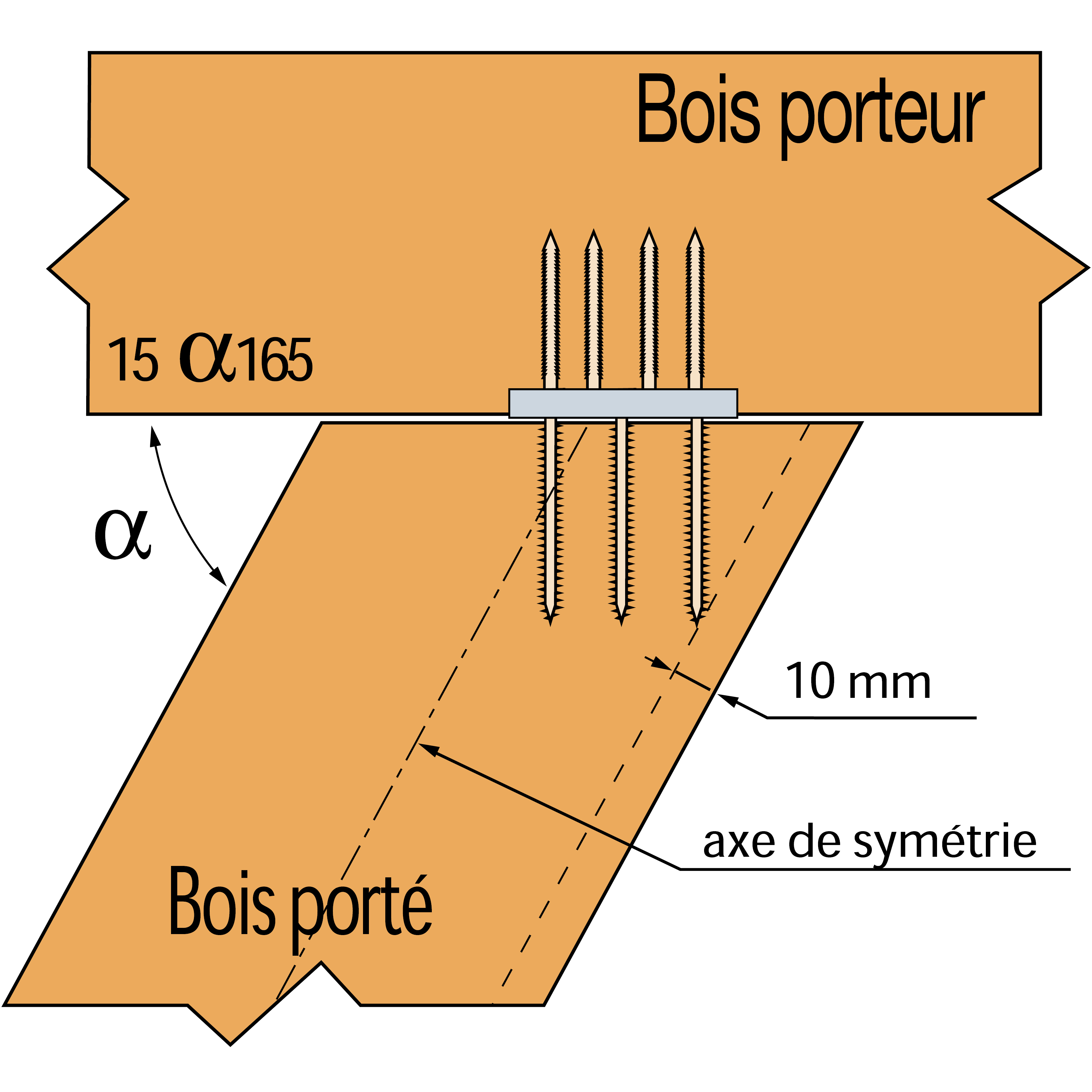

Skewed installation.

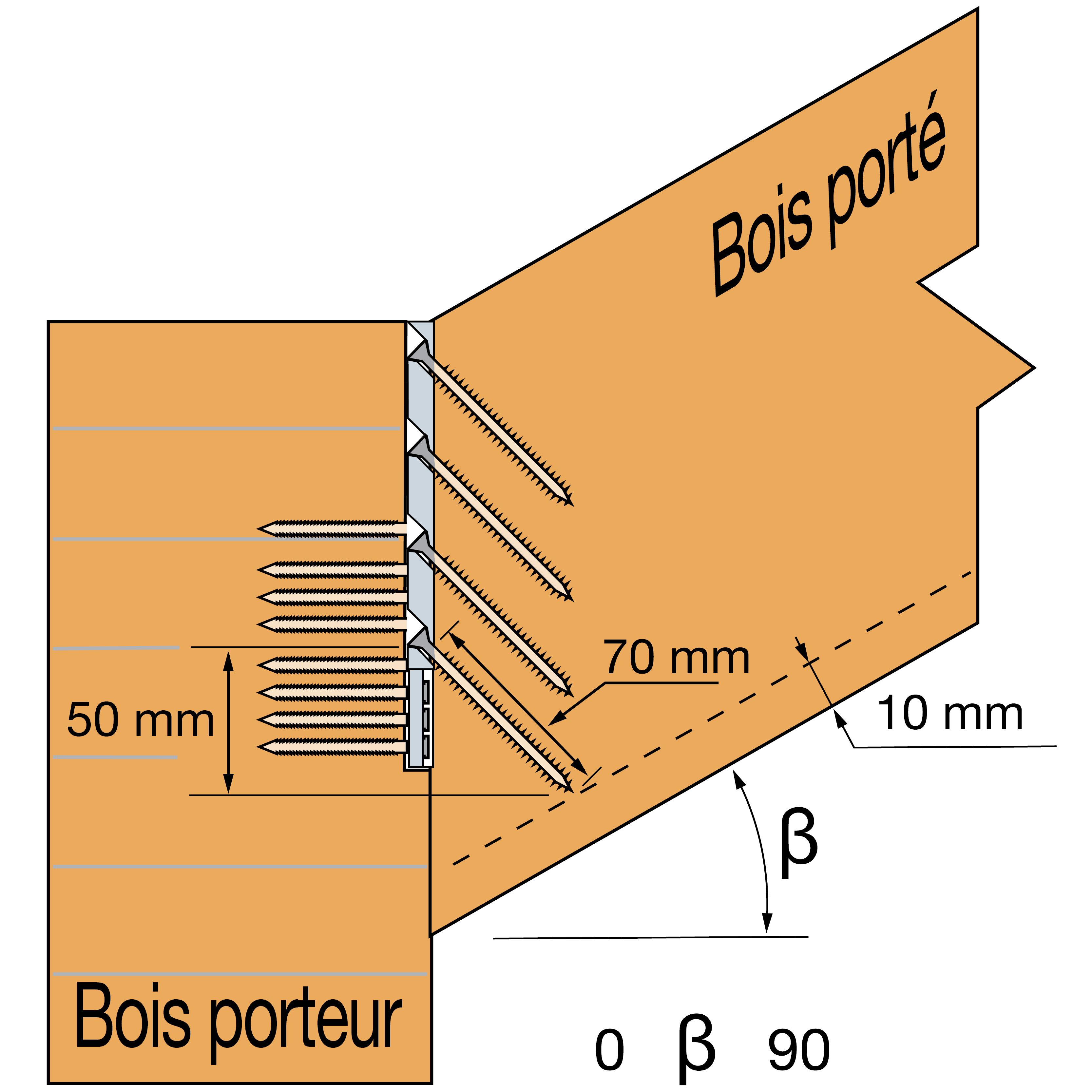

Positive slope installation.
Features
Application
Technical Data
Dimensions

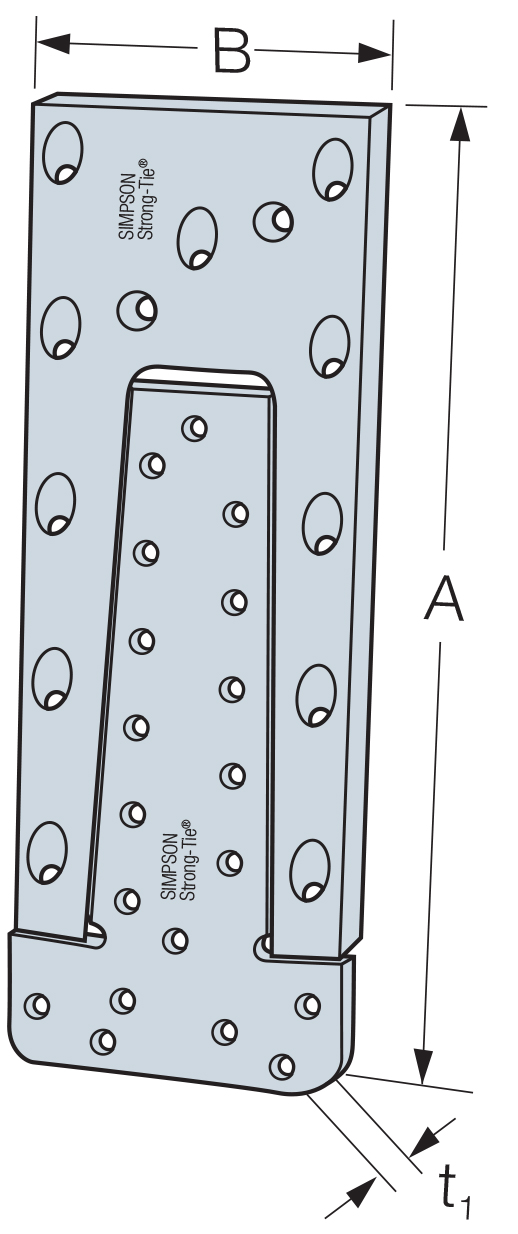

Product Dimensions
| References | Tun / DB nr. | NOB nr. | Joist Size [mm] | Product Dimensions [mm] | Header holes | Joist holes | Box Quantity | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | Height | A | B | C | D | t1 | t2 | Ø5 | Ø5.4 | |||||
| Min | Min | Max. | ||||||||||||
| ETB90-B | 5688246 | 42277162 | 70 | 115 | 150 | 90 | 60 | 58 | 69 | 6 | 10 | 6 | 4 | 25 |
| ETB120-B | 5804558 | 23383334 | 70 | 150 | 200 | 121 | 60 | 85 | 95 | 6 | 10 | 9 | 6 | 25 |
| ETB160-B | 5804559 | 23383342 | 70 | 185 | 250 | 166 | 60 | 95 | 130 | 6 | 10 | 11 | 8 | 25 |
| ETB190-B | 5804560 | 23383359 | 90 | 220 | 300 | 195 | 75 | 138 | 165 | 6 | 10 | 19 | 11 | 25 |
| ETB230-B | 5804561 | 23383367 | 90 | 255 | 350 | 230 | 75 | 138 | 200 | 6 | 10 | 19 | 14 | 25 |

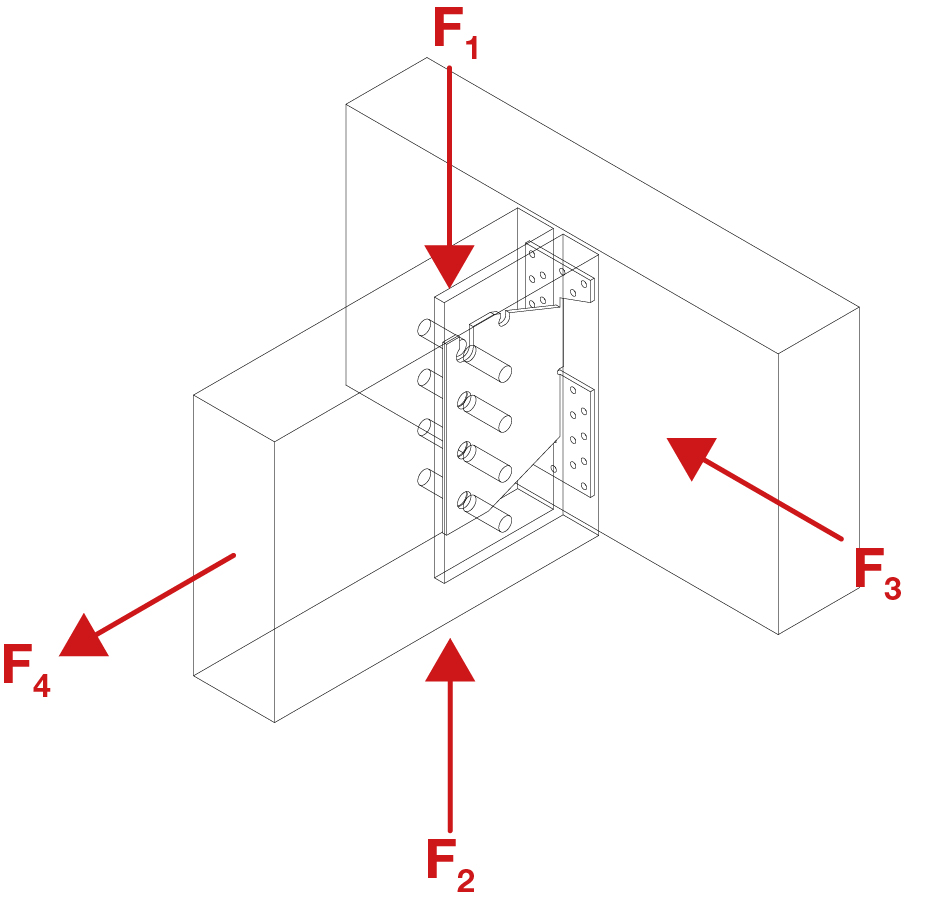

Wood/wood fastening- Characteristic values in kn
| References | Wood/wood fastening- Characteristic values in kn | ||||||
|---|---|---|---|---|---|---|---|
| Number of Fasteners | Characteristic Capacities - Timber C24 [kN] | ||||||
| Header | Joist | R1,k | |||||
| Qty | Type | Qty | TTUFS5,0x70 | TTUFS5,0x100 | FTETL5,0x80 | CSFT5,0x70 | |
| ETB90-B | 6 | CNA4,0x40 | 4 | 5.9 | 8.9 | 9.6 | 11.1 |
| ETB120-B | 9 | CNA4,0x40 | 6 | 8.5 | 12.8 | 13.8 | 16.7 |
| ETB160-B | 11 | CNA4,0x40 | 8 | 11 | 16.5 | 17.8 | 20.4 |
| ETB190-B | 19 | CNA4,0x40 | 11 | 14.7 | 22 | 23.8 | 29.7 |
| ETB230-B | 19 | CNA4,0x40 | 14 | 18.2 | 27.4 | 29.5 | 35.2 |
Product characteristic capacities - Timber beam to timber post
| References | Product characteristic capacities - Timber beam to timber post | ||||||
|---|---|---|---|---|---|---|---|
| Number of Fasteners | Product characteristic capacities - Timber C24 [kN] | ||||||
| Header | Joist | R1,k | |||||
| Qty | Type | Qty | TTUFS5,0x70 | TTUFS5,0x100 | FTETL5,0x80 | CSFT5,0x70 | |
| ETB90-B | 6 | CNA4,0x40 | 4 | 5.9 | 8.9 | 9.6 | 11.1 |
| ETB120-B | 9 | CNA4,0x40 | 6 | 8.5 | 12.8 | 13.8 | 16.7 |
| ETB160-B | 11 | CNA4,0x40 | 8 | 11 | 16.5 | 17.8 | 20.4 |
| ETB190-B | 12 | CNA4,0x40 | 9 | 12.3 | 18.4 | 19.8 | 22.2 |
| ETB230-B | 12 | CNA4,0x40 | 10 | 13.5 | 20.2 | 21.8 | 22.2 |
Installation
Installation

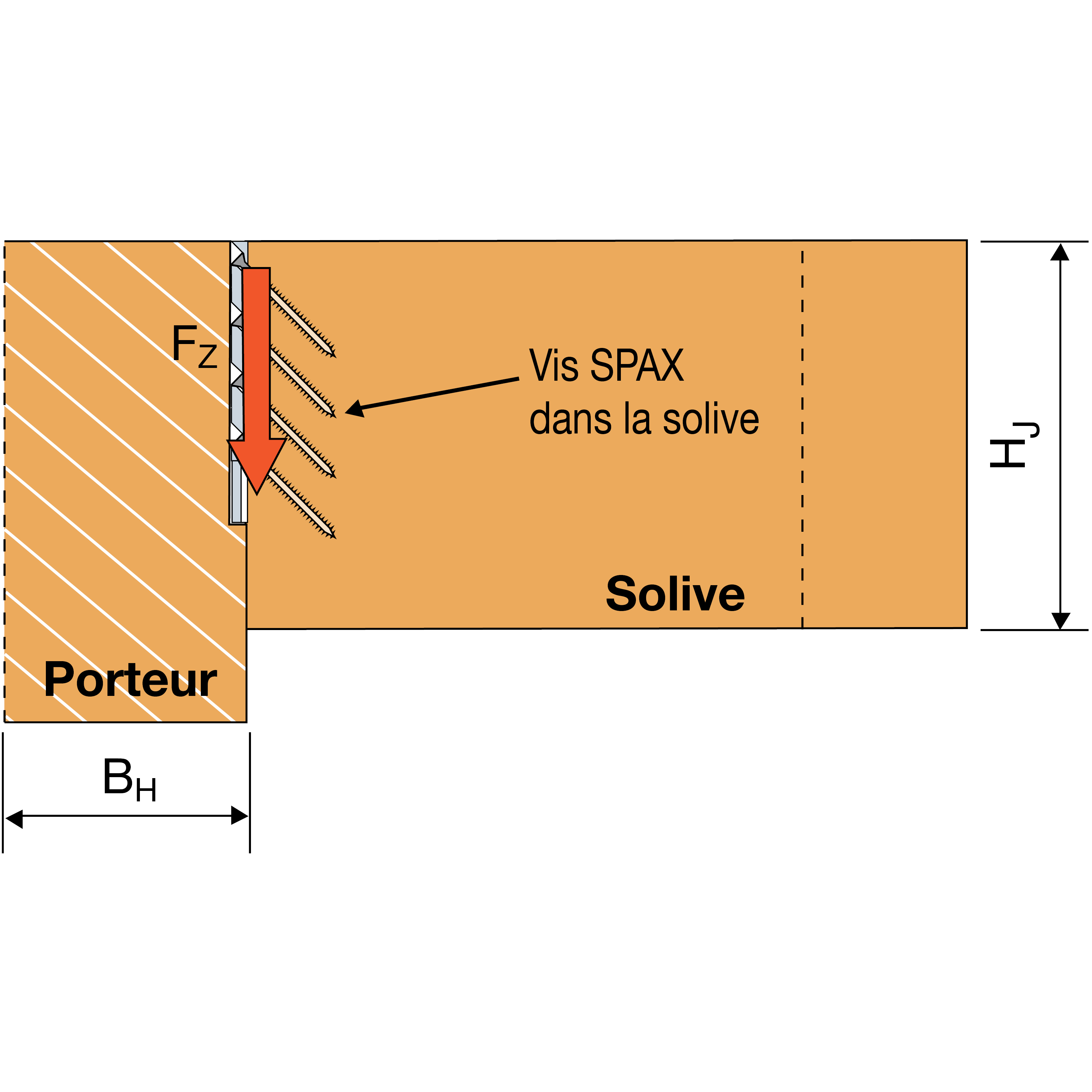

insalled cross section.
Countersunk within the supported member.
Face fix installation.
Face fix installation.
Face fix installation.
Face fix installation.
Positive slope installation.
Skewed installation.
