CNAC15

Connector Nail 15-16° Plastic Coil - Round head, Ring Shank

Plastic coil collated CNA connector nails fit in most common nail guns on the market with a angle of the nail of 15-16°.

Technical Data Sheet
CE Marking
ETA
Service class 2
Electrogalvanized steel 12µm

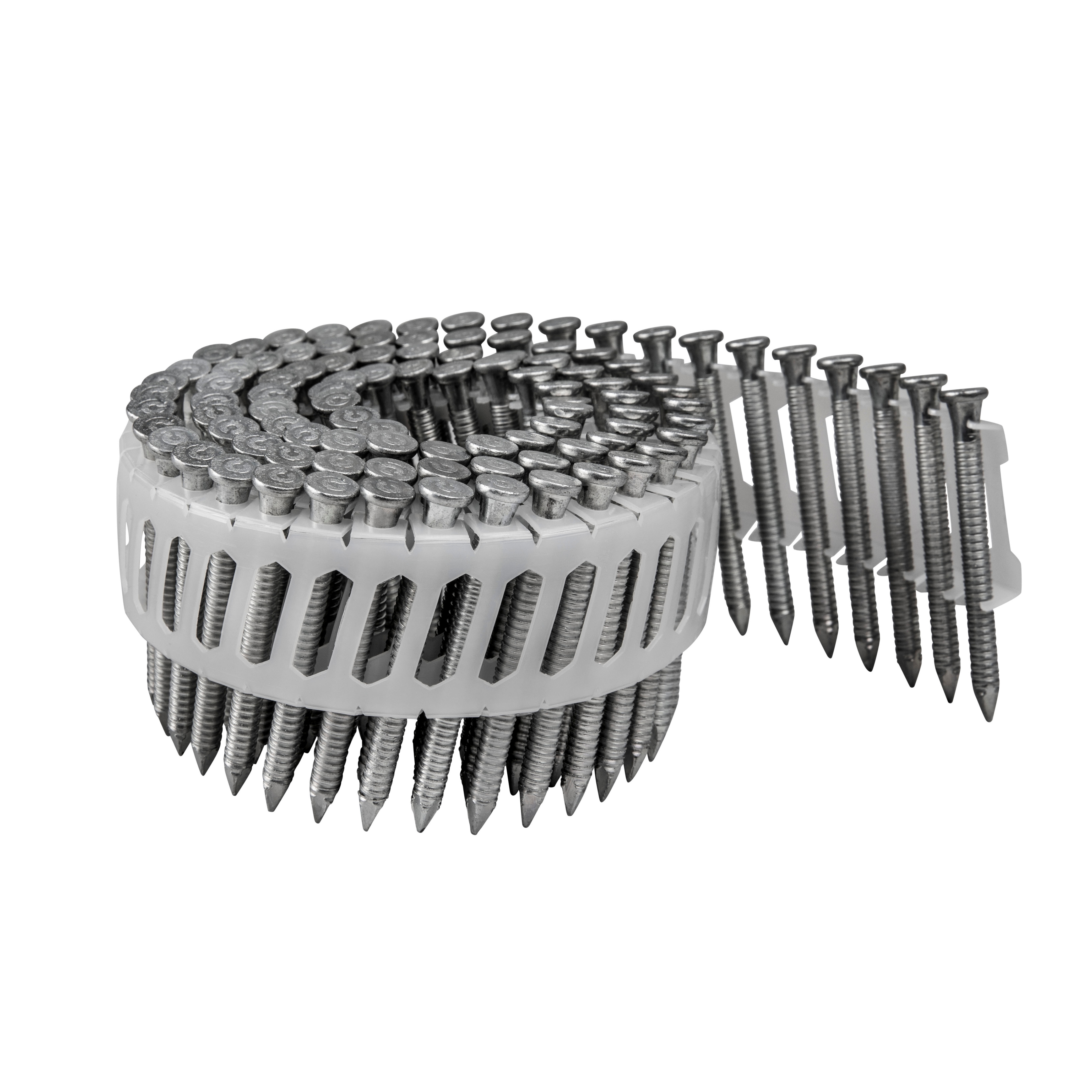

CNAC15 Main Image.jpg

Product Details

Features

Advantages

  • The conical shape under the head ensures that the nail is fully in contact with the hole
  • High withdrawal capacity
  • Annular ring thread
  • Plastic coil 15-16°

Application

Support

  • Connectors to wood

Technical Data

Dimensions

CNAC15 Dim Image.jpg

Product dimensions

References Item Nr. DB nr. Fastener dimensions Qty per coil Qty per box
d l lg dh ht
CNAC15Z4.0X407613821241504402571.51001200
CNAC15Z4.0X50761392124151503571.51001200
CNAC15Z4.0X60761402124152604571.51001200

Characteristic capacities

References Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN]
Rax.k Rlat.k
CNAC15Z4.0X400.71.9
CNAC15Z4.0X5012.2
CNAC15Z4.0X601.22.4

Capacities are for 2mm thick steel plates and Grade C24 timber. Please refer to ETA-04/0013 for capacities of other thickness and timber grades
