STD

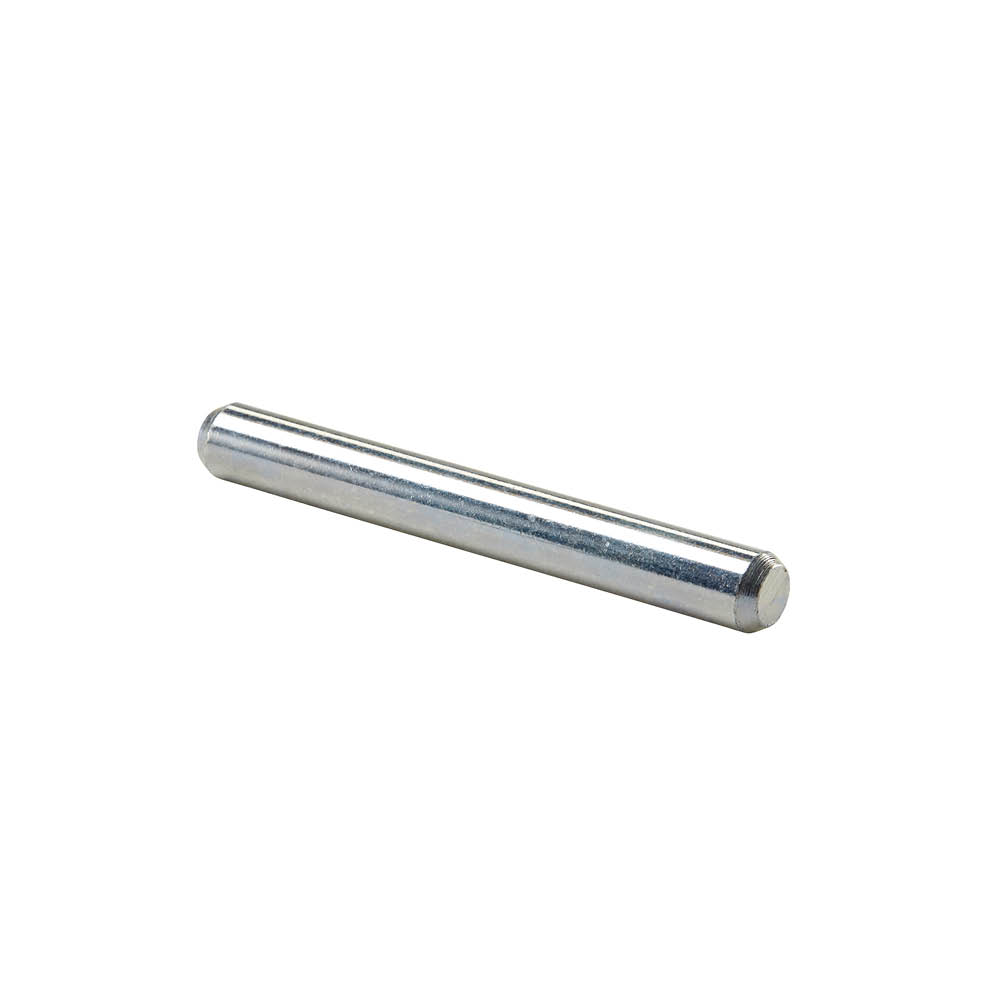

Dowels for concealed connectors

The dowels complement concealed beam hangers ETNM, TU, TUB, TUBS and CBH. They are also used to fasten concealed post bases.

Technical Data Sheet

CE Marking

Service class 2

Electro-galvanized steel

Indoor

Product Details

Images

Fixation 2 broches


Joist connection

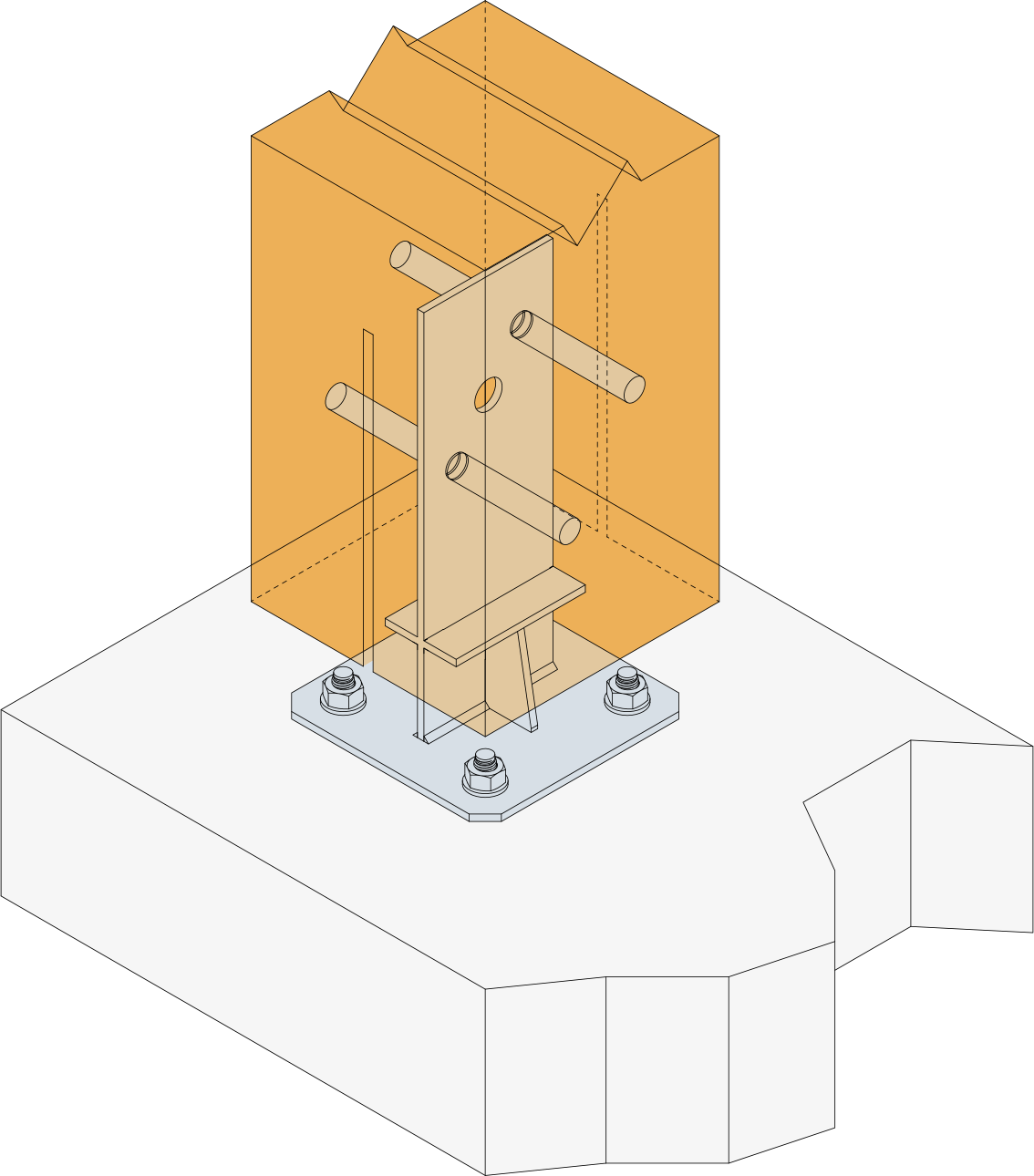

Fixing the postbase by sealing in the concrete. The horizontal plate must be at most 50 mm from the slab.

Features

Material

Steel S235JR according to NF EN 10025: 1993.
Zn12/A dichromate finish according to NF EN ISO 2081.

Benefits

Made in various lengths
Chamfers make the installation easier

Application

Suitable On

Concealed beam hangers.
Structural post bases.

When to Use

Used for mounting of concealed beam hangers and structural post bases
Used where incorporated steel plates are part of an assembly detail in timber

STD dowels complement the following products:

Concealed beam hangers : ETNM, CBH, BTN, etc ...
Post bases : PI, PIL, PIS, PISB, PVI, PVIB, PPSDT etc ...

Technical Data

Dimensions

Product Dimensions

References	Tun / DB nr.	NOB nr.	Fastener dimensions [mm]		Compatible products	Box Quantity
References	Tun / DB nr.	NOB nr.	d	l	Compatible products	Box Quantity
STD8X60-B	1252317	43811066	8	60	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8x70-B	-	-	-	-	-	100
STD8X80-B	1252325	43811104	8	80	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8X100-B	1252330	43810953	8	100	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8X115-B	1252333	43810972	8	115	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8X120-B	1252337	43810998	8	120	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8X140-B	1252346	43811017	8	140	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8X160-B	1252348	43811036	8	160	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8X180-B	-	-	8	180	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD8X200-B	-	-	8	200	TU12, PIG, PBH120G, PISB160G, PIBA	100
STD10X60-B	1420959	43672614	10	60	CBH	100
STD10X80-B	1420961	43672625	10	80	CBH	100
STD10X100-B	1252355	NOB214	10	100	CBH	100
STD10X120-B	1252362	43810722	10	120	CBH	100
STD10X140-B	1252363	43810737	10	140	CBH	100
STD12X60-B	1252365	43810862	12	60	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X80-B	1252372	43810896	12	80	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X100-B	1252374	41710718	12	100	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X115-B	5384075	43810760	12	115	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X120-B	1252376	43810786	12	120	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X140-B	1252378	43810813	12	140	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X160-B	1252379	43810832	12	160	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X180-B	1252380	43810843	12	180	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X200-B	1252381	43810858	12	200	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD16X120-B	1252383	43810926	16	120	PPS, PPSDT & PPSR	50
STD16X140-B	1252384	43810934	16	140	PPS, PPSDT & PPSR	50
STD16X150-B	1252385	43810945	16	150	PPS, PPSDT & PPSR	50
STD16x160-B	1252386	47584441	16	160	PPS, PPSDT & PPSR	50
STD16X180-B	1252388	47584460	16	180	PPS, PPSDT & PPSR	50
STD16X200-B	1252389	47584524	16	200	PPS, PPSDT & PPSR	50
STD16X250-B	1252390	47584558	16	250	PPS, PPSDT & PPSR	50
STD12X110-B	-	-	12	110	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12X130-B	-	-	12	130	TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG	100
STD12x65-B	-	-	-	-	-	100

Length of the dowel = width of the supported member.

Mechanical Properties

References	Product characteristic properties
References	Characteristic Yield Moment – M_y,k [M_y.k] [Nm]
STD8X60-B	22.7
STD8x70-B	-
STD8X80-B	22.7
STD8X100-B	22.7
STD8X115-B	22.7
STD8X120-B	22.7
STD8X140-B	22.7
STD8X160-B	22.7
STD8X180-B	22.7
STD8X200-B	22.7
STD10X60-B	40.6
STD10X80-B	40.6
STD10X100-B	40.6
STD10X120-B	40.6
STD10X140-B	40.6
STD12X60-B	65.2
STD12X80-B	65.2
STD12X100-B	65.2
STD12X115-B	65.2
STD12X120-B	65.2
STD12X140-B	65.2
STD12X160-B	65.2
STD12X180-B	65.2
STD12X200-B	65.2
STD16X120-B	137.8
STD16X140-B	137.8
STD16X150-B	137.8
STD16x160-B	137.8
STD16X180-B	137.8
STD16X200-B	137.8
STD16X250-B	137.8
STD12X110-B	65.2
STD12X130-B	65.2
STD12x65-B	-

Installation

The hole is pre-drilled with a diameter less than or equal to the nominal dowel diameter.
Chamfers make it easier to insert the elements into the wood.

The dowels contribute to the load bearing capacity of our connectors. Please follow the installation recommendations given in our ETAs: ETA-07/0245 (Concealed beam hangers) and ETA-07/0285 (Post bases).

Fixation 2 broches

Joist connection

Fixing the postbase by sealing in the concrete. The horizontal plate must be at most 50 mm from the slab.
