Nails and Screws
Drywall Screws
DWFSD

DRYWALL to Steel Screw

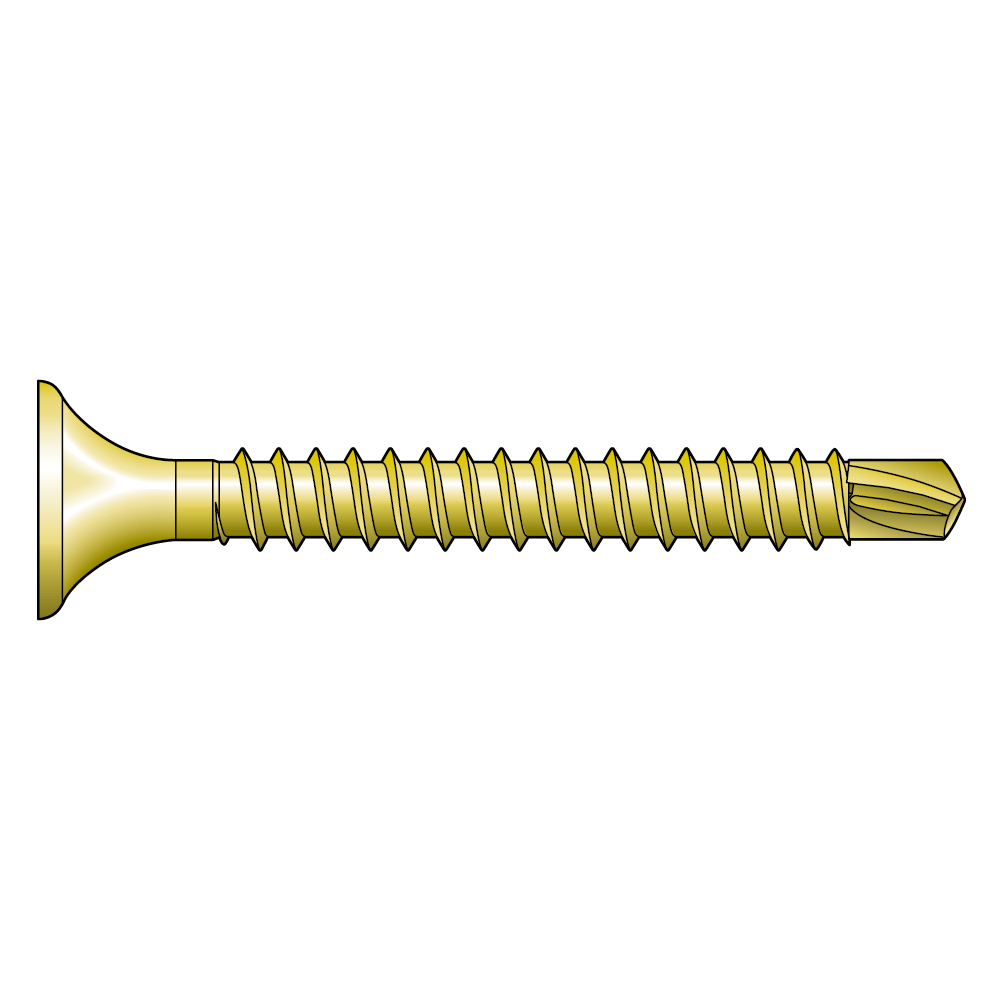

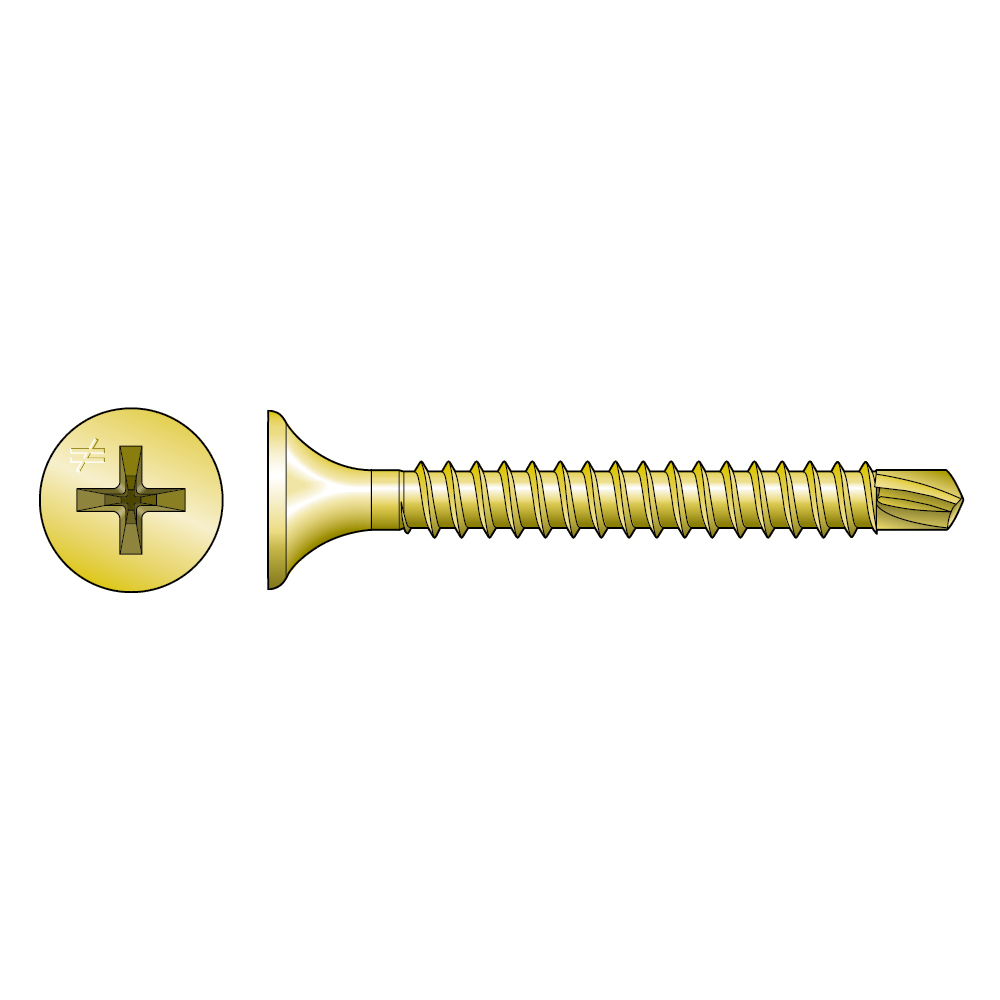

DWFSD is a self drilling screw with a fine thread, designed to fix drywall panels to steel of thicknesses 1.2 mm to 2.2 mm.

Technical Data Sheet
CE Marking
Service class 1
Yellow electro-galvanised steel
Indoor
DWFSD main image.jpg

Product Details

Images

DWFSD main image.jpg
DWFSD photo gallery.jpg
BIT2PE-2

Features

Material

  • Steel - yellow zinc plated

Benefits

  • CE marked to EN14566
  • Bugle haed
  • Drill point
  • Fine thread
  • PH2 driver bits included (BIT2PE)

Application

Support

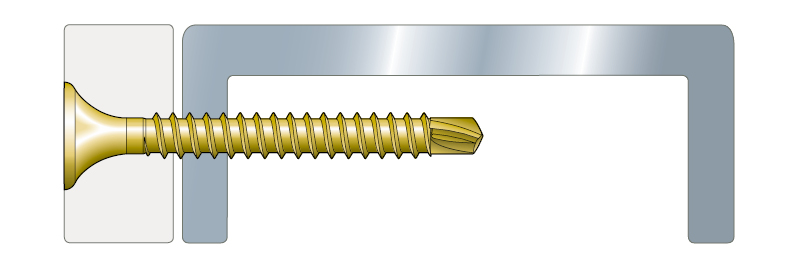

  • Suitable for fixing to 1.2 - 2.2 mm steel

Common Applications

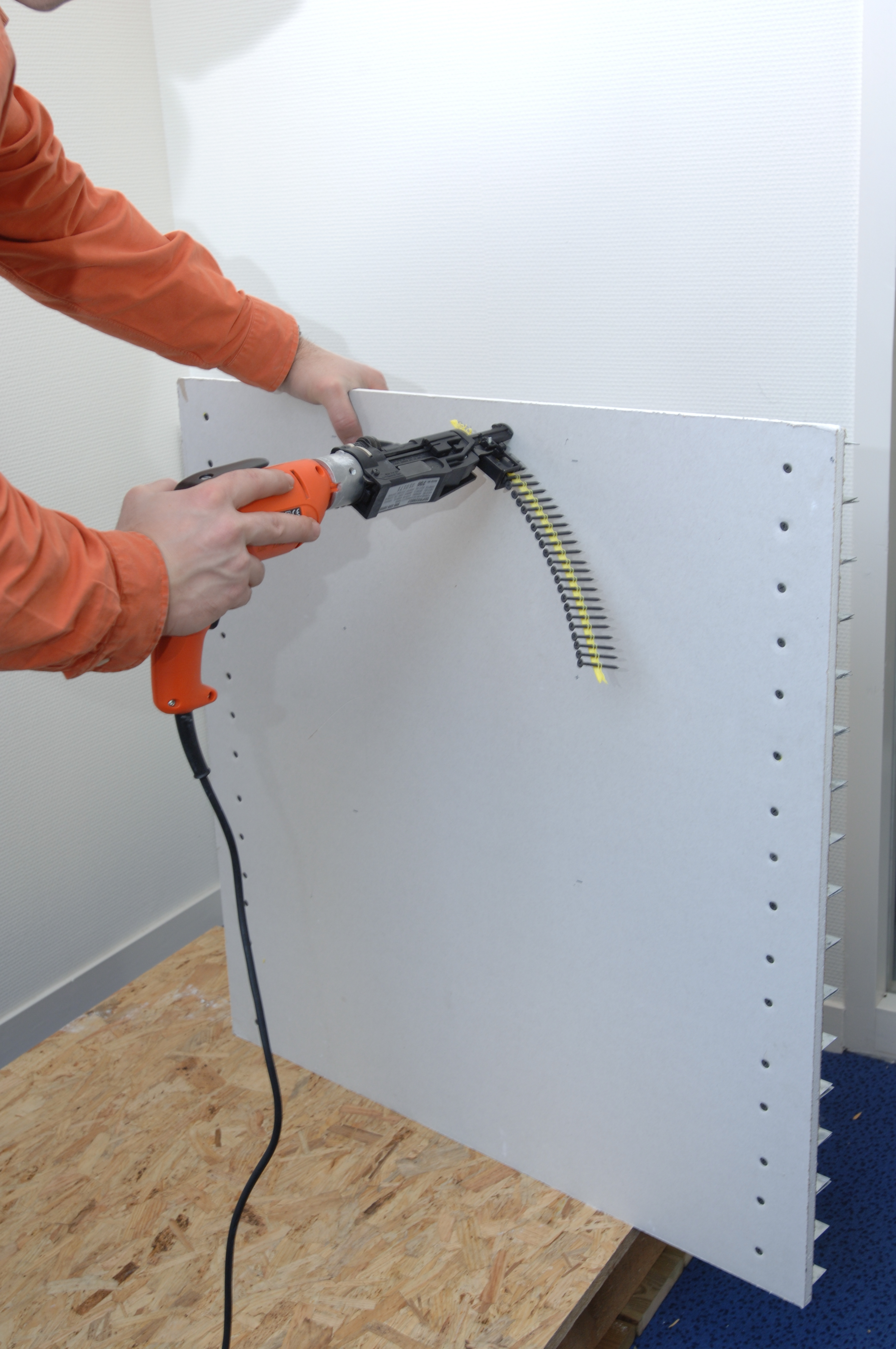

  • Fixing drywall board to steel

Technical Data

Dimensions

DWFSD dim image.jpg

Dimensions and caracteristics values

References Head width [mm] Ø head [mm] Screw length [mm] Qty screws / strip Qty screws / box Max rotation speed - DE [U/Min.] Compatible tool Max rotation speed [tr/min]
DWFSD41PE8.23.4413025002500QDPRO51E / QD76KE2500

Certification

Declaration of Performance (DoP)

uk-dop-h10-0009-pdf.pdf (30.08 KB)
