FIRKD34G

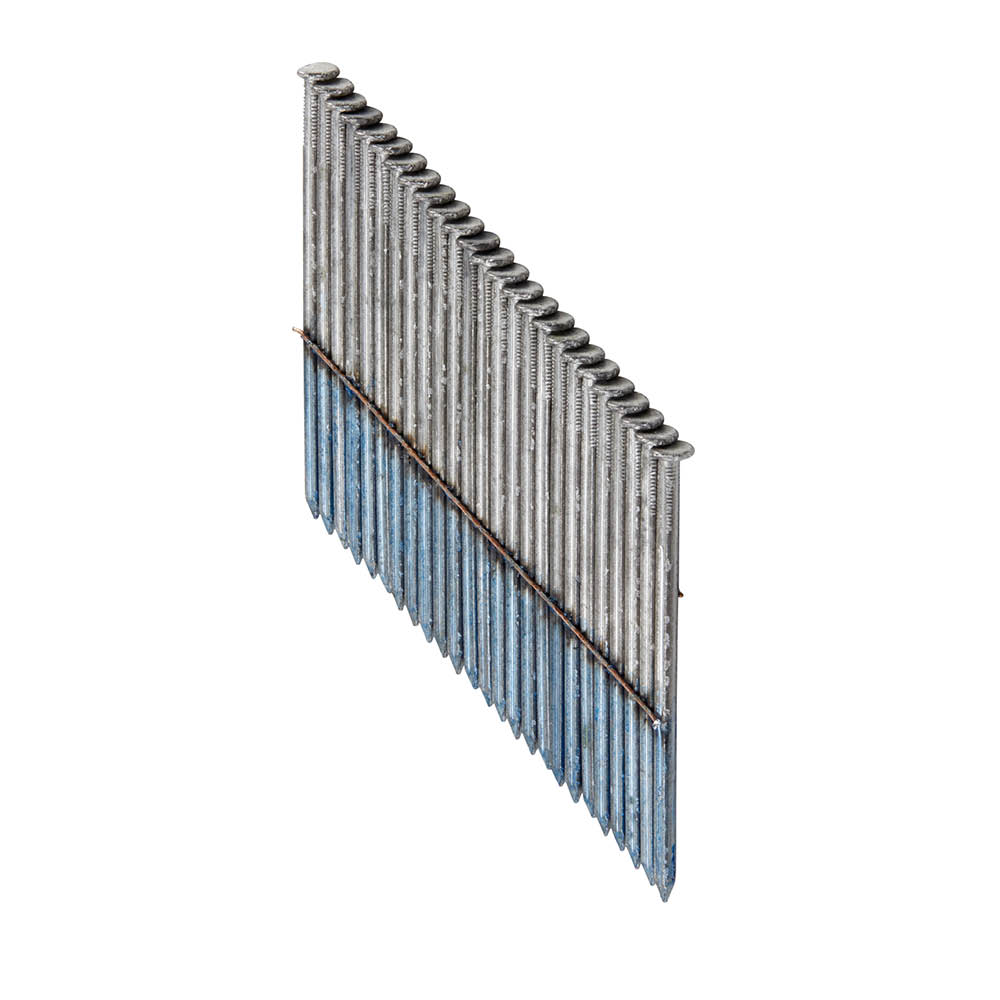

Framing Nail 34° Wire Weld - Clipped Head, Grooved - HDG

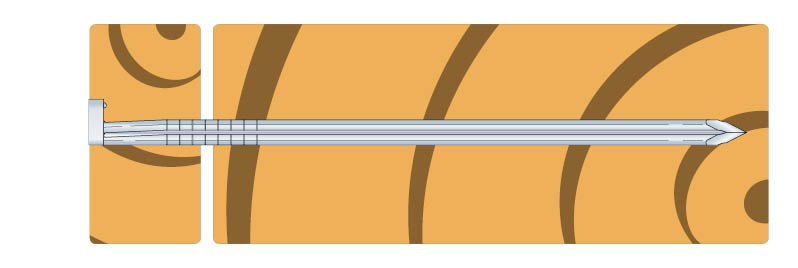

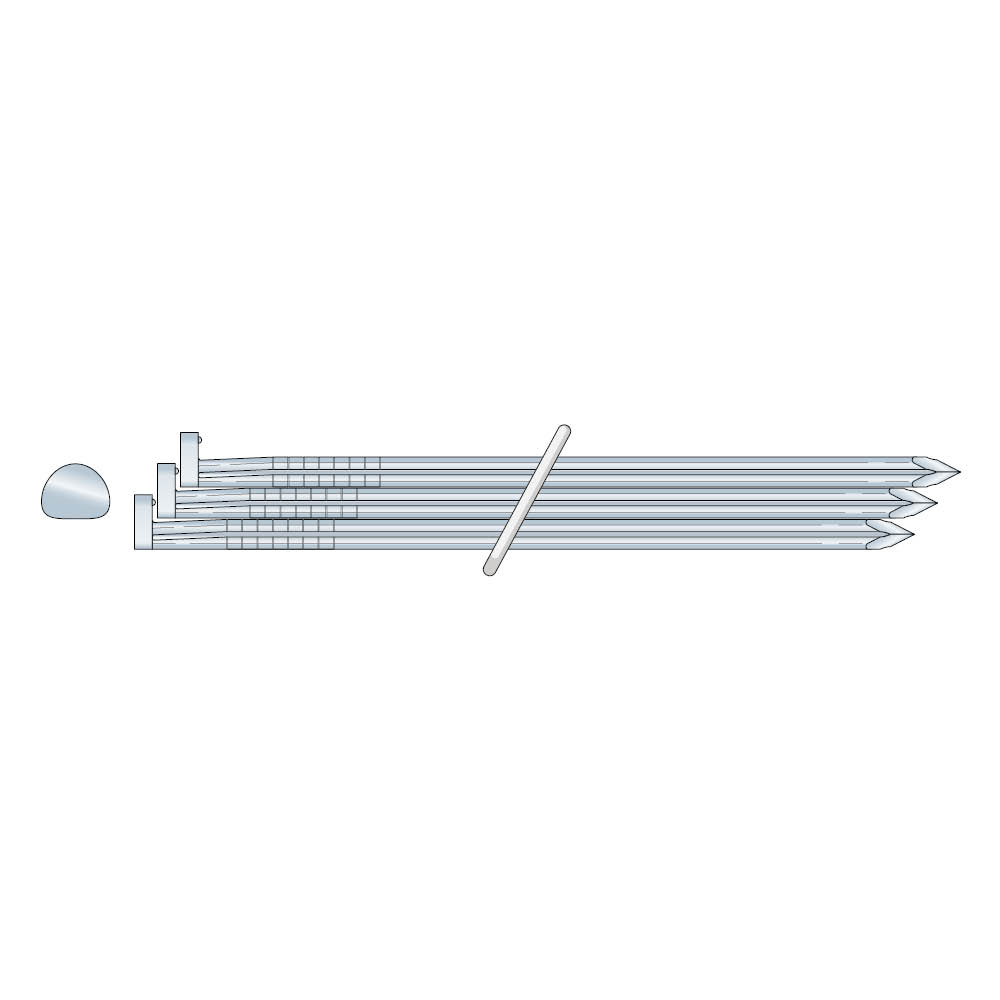

The framing nail is used for wood to wood constructions. The clipped head and the tight collation means that more nails can be loaded in the tools, the wire weld collation is not affected by wetness, storage time or temperature. The grooved shank increases the shear capacity.
CE Marking
Service class 3
Hot-dip galvanised steel
Outdoor
Solid Wood
Product Details
Images
Features
Application
Technical Data
Dimensions
Product dimensions
| References | Item code | DB nr. | NOBB nr. | Fastener dimensions [mm] | Qty/box | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | d1 | Ah | ht | lg | lp | tfix | bit | |||||
| FIRKD34G2.9X65 | 75645 | 2055999 | 55837702 | 2.8 | 64 | 11.5 | - | 23.8 | 1.6 | - | 4.2 | 47.2 | - | 1700 |
| FIRKD34G2.9X75 | 75646 | 2056000 | 55837698 | 2.8 | 73 | 11.5 | - | 23.8 | 1.6 | - | 4.2 | 56.2 | - | 1500 |
| FIRKD34G2.9X90 | 75647 | 2056001 | 55837683 | 2.8 | 87 | 11.5 | - | 23.8 | 1.6 | - | 4.2 | 70.2 | - | 1000 |
