ESCRFTZ

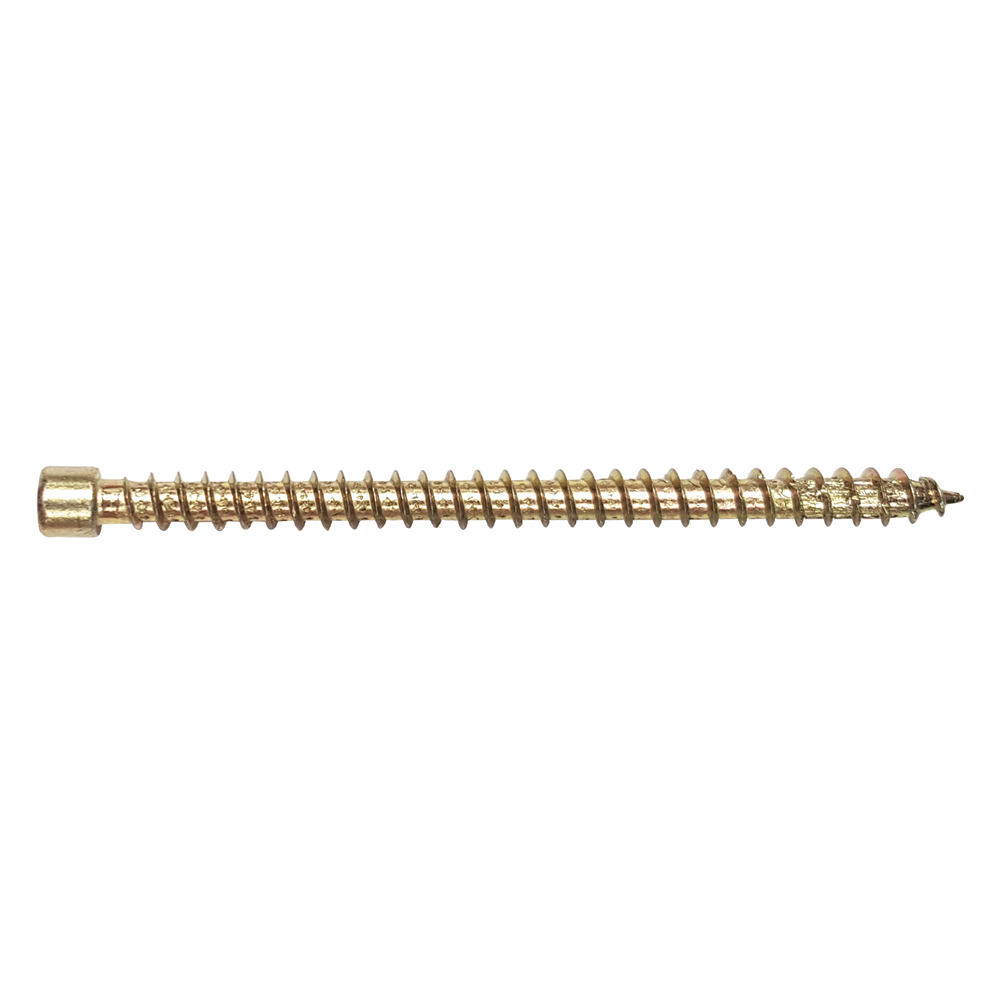

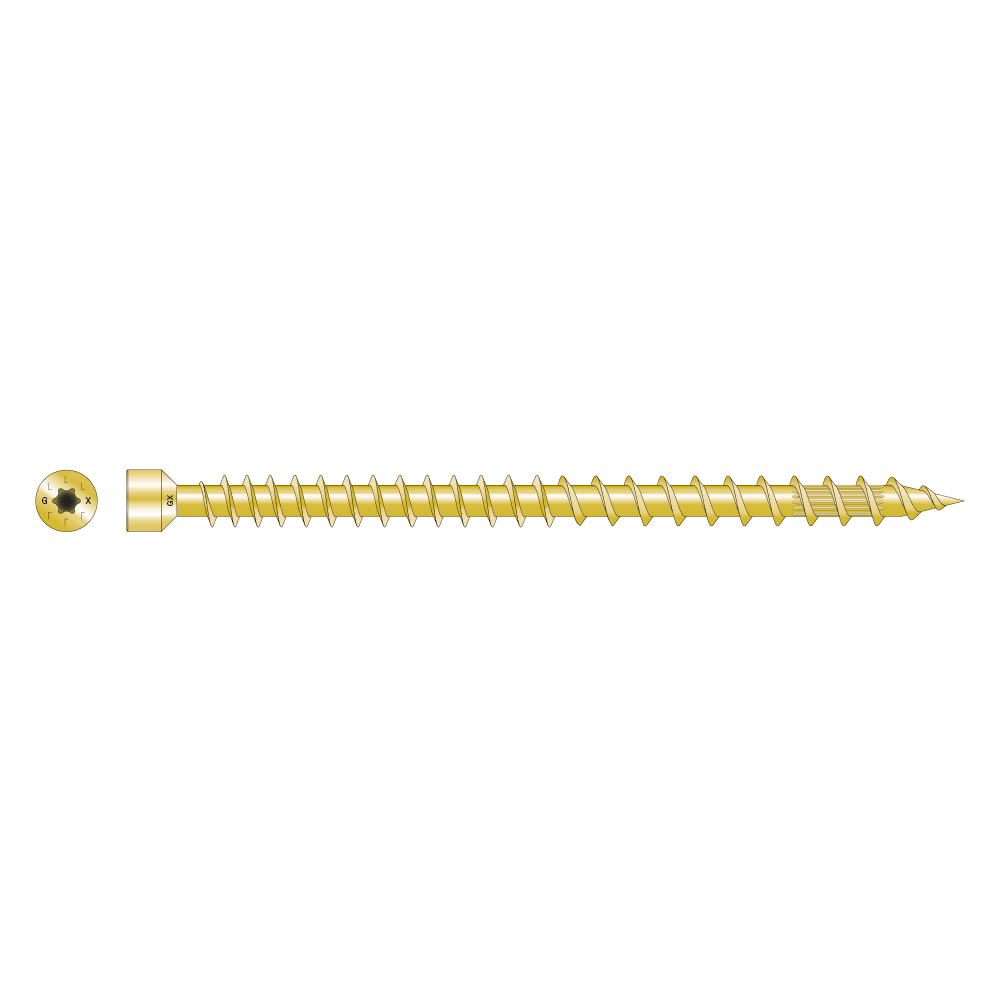

Fully Threaded Cylinder Head Structural Screw

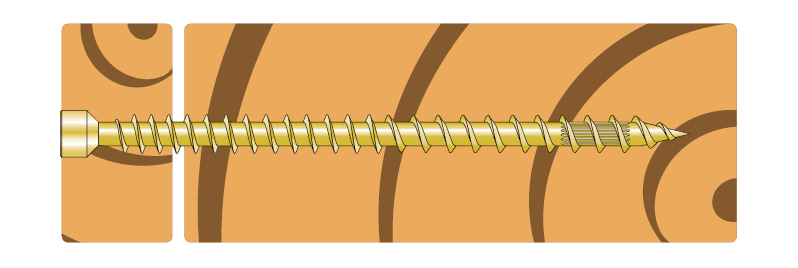

The ESCRFTZ cylindrical head structural wood screw with full thread can be used for timber framing, framework and reinforcement. These ETA approved structural screws are designed for load-bearing timber structures.
CE Marking
ETA
Service class 2
Yellow electro-galvanised steel
Indoor
Solid Wood
Product Details
Images
Features
Application
Technical Data
Dimensions
Product Dimensions
| References | Fastener Dimensions [mm] | Driver Bit | ||||
|---|---|---|---|---|---|---|
| d | l | dh | d1 | lg | ||
| ESCRFTZ8.0X120 | 8 | 120 | 10.2 | 5.2 | 110 | T-40 |
| ESCRFTZ8.0X140 | 140 | 10.2 | 5.2 | 130 | T-40 | |
| ESCRFTZ8.0X160 | 160 | 10.2 | 5.2 | 150 | T-40 | |
| ESCRFTZ8.0X180 | 180 | 10.2 | 5.2 | 170 | T-40 | |
| ESCRFTZ8.0X200 | 200 | 10.2 | 5.2 | 190 | T-40 | |
| ESCRFTZ8.0X220 | 220 | 10.2 | 5.2 | 210 | T-40 | |
| ESCRFTZ8.0X240 | 240 | 10.2 | 5.2 | 230 | T-40 | |
| ESCRFTZ8.0X260 | 260 | 10.2 | 5.2 | 250 | T-40 | |
| ESCRFTZ8.0X280 | 280 | 10.2 | 5.2 | 270 | T-40 | |
| ESCRFTZ8.0X300 | 300 | 10.2 | 5.2 | 290 | T-40 | |
| ESCRFTZ8.0X350 | 350 | 10.2 | 5.2 | 340 | T-40 | |
| ESCRFTZ8.0X400 | 400 | 10.2 | 5.2 | 390 | T-40 | |
