ECCD/G

Light angle brackets

Light angle brackets are used in a large number of DIY applications and are commonly used for reinforcing furniture assemblies.

Technical Data Sheet
Service class 2

Product Details

Images

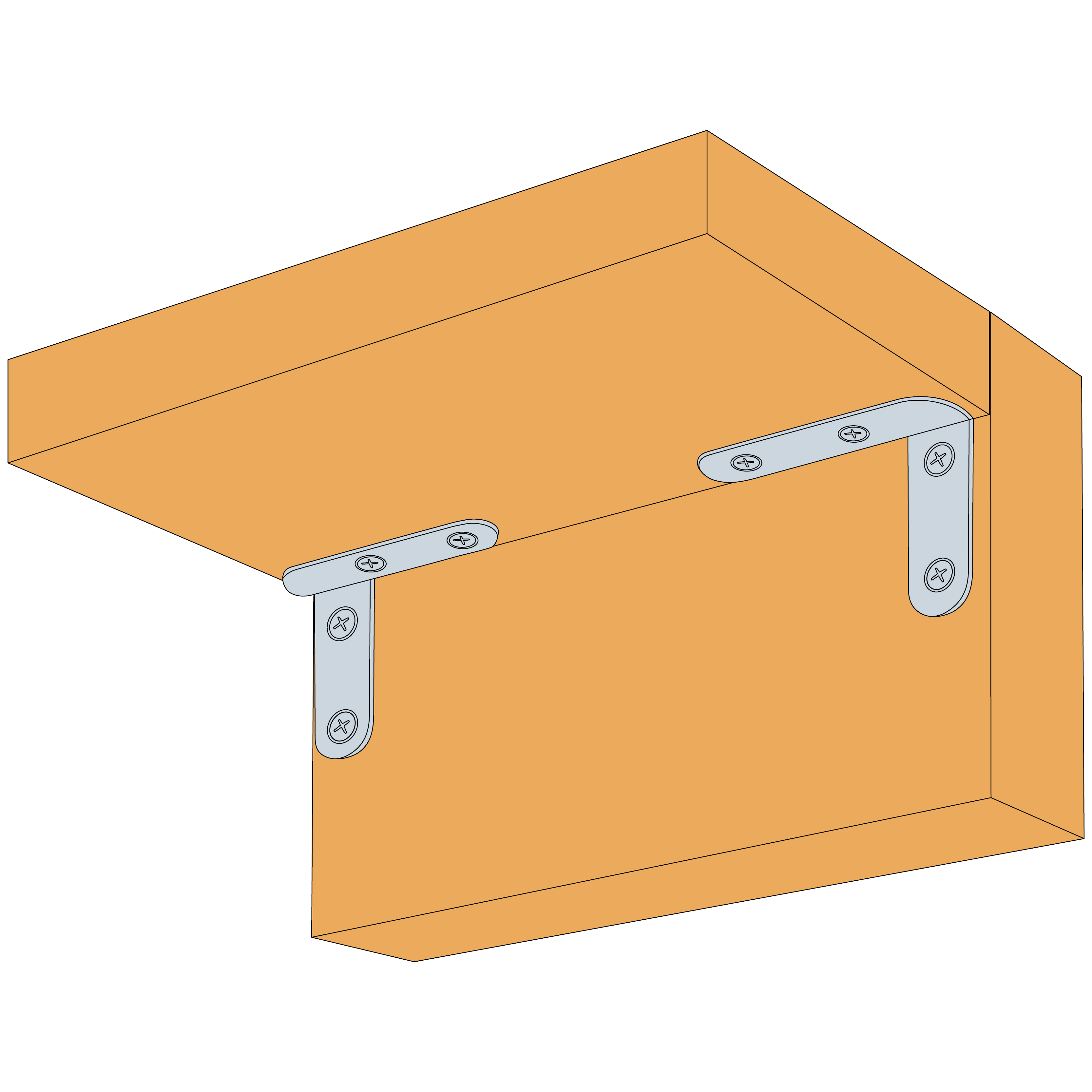

Renforcement de meubles

Features

Material

  • Steel S235JR according to NF EN 10025, electro-galvanized finish.

Benefits

  • large range for large application range
  • Suitable on timber and concrete

Application

Suitable On

  • Supporting member: wood, etc.

Scope

  • Solid wood.
  • Panels.
  • PVC, etc.

Technical Data

Dimensions


Product Dimensions

References Product Dimensions [mm] Joist Holes flange B
A B C t Ø4.5 Ø4.5
ECCD60/1.54460161.222
ECCG60/1.54460161.222

Installation

Installation

Fasteners

Countersunk holes:

  • Type 30 to 80 dia. 4.2 mm.
  • Type 90 to 140 dia. 5.5 mm.

On wood:

  • CNA annular ring-shank nails dia. 3.1 x 35 mm and dia. 4.0 x 35 mm.
  • SD8 screws dia. 4.0 x 32 mm.

Installation

  1. Approcher l’élément à fixer du support,
  2. Pointer l’élément. Celui-ci peut aussi être vissé à l’aide de vis adaptées,
  3. L'équerre est aussi pointée ou vissée sur celui-ci.
