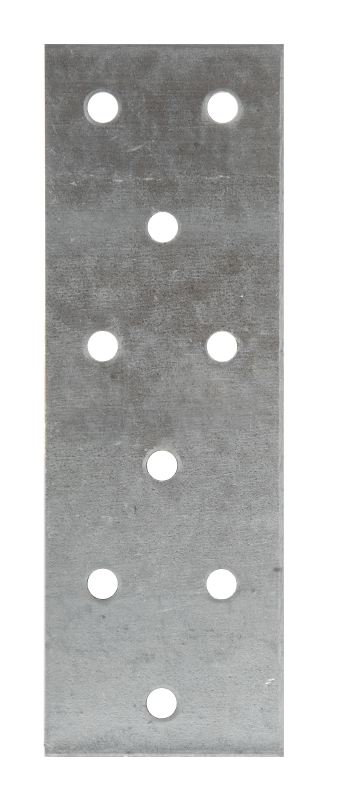

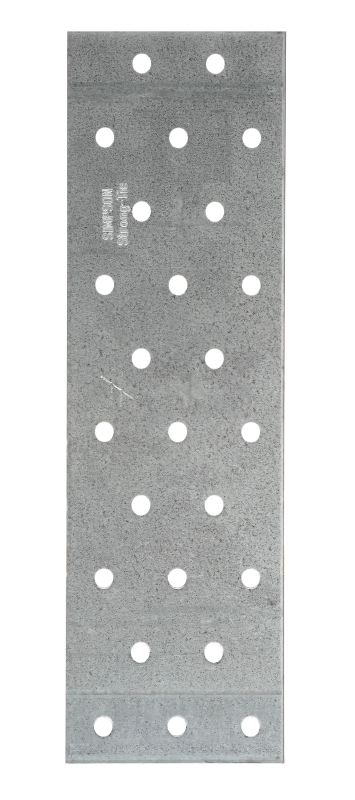

Nail Plate

Nail plates are used to connect two or more timber members together. They are available in a variety of sizes.

Technical Data Sheet

CE Marking

Service class 2

Electrogalvanized steel 20 µm

Indoor

Product Details

Images


Features

Material

Pre-glavanised mild steel. Grade S250GD

Benefits

Versatility of applications
Can be bent on site

Application

Header member

Supporting member: solid wood, glued-laminated wood, composite lumber, etc.
Supported member: solid wood, glued-laminated wood, composite lumber, triangular trusses, profiles.

Applications

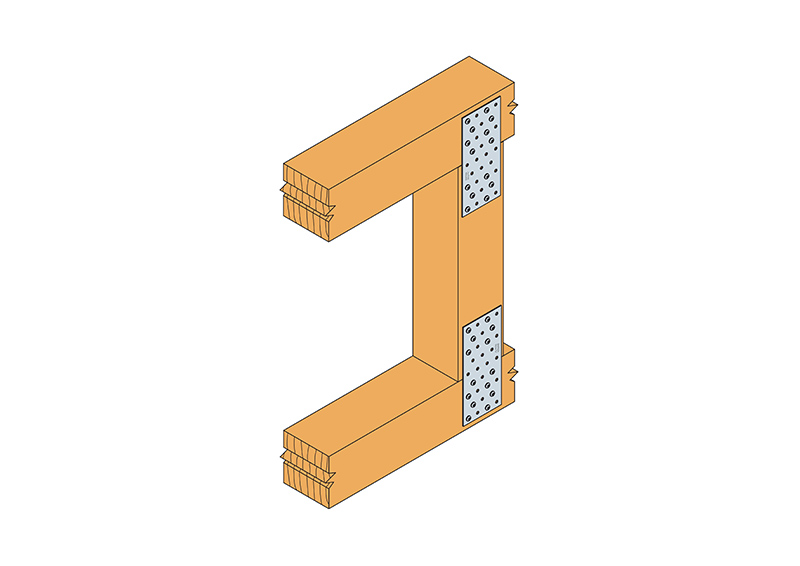

Post/beam connection

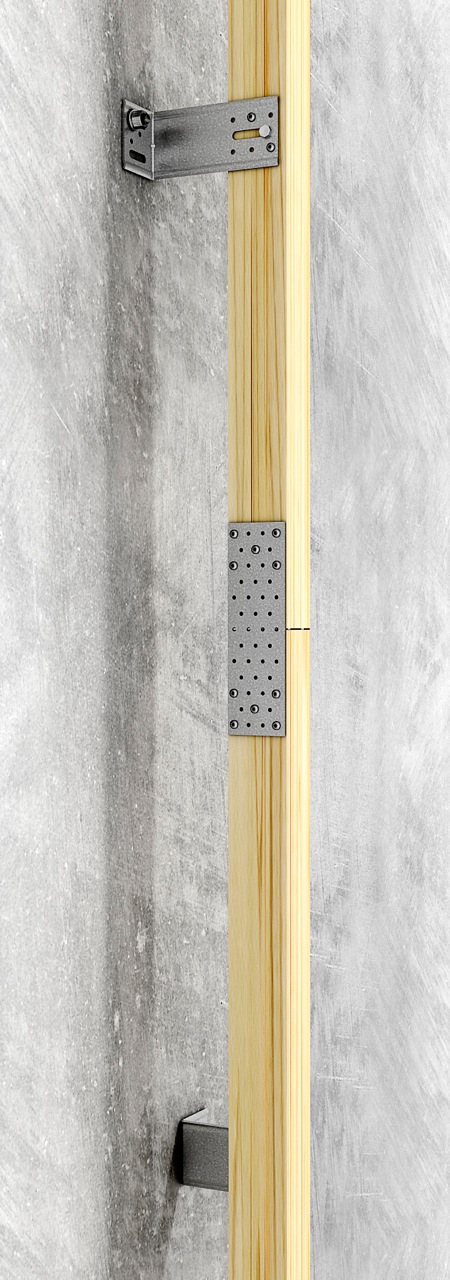

Jointing
Repairs
Assemblies requiring a special bending on site, etc

Technical Data

Dimensions

Dimensions and characteristic values

References	NOB nr.	Tun / DB nr.	Dimensions and drill holes [mm]			Holes		Characteristic Capacities [kN]	Box Quantity
References	NOB nr.	Tun / DB nr.	A	B	Thickness	Qty	Diameter	R_1.k	Box Quantity
NP15/40/120	41711615	1267914	40	120	1.5	9	Ø5	min (n x Rlat,k ; 13.4/kmod)	100
NP15/40/160	41711626	1267920	40	160	1.5	12	Ø5	min (n x Rlat,k ; 13.4/kmod)	50
NP15/40/360	21217591	5653456	40	360	1.5	27	Ø5	min (n x Rlat,k ; 13.4/kmod)	100
NP15/50/200	41711634	1267926	50	200	1.5	20	Ø5	min (n x Rlat,k ; 17.8/kmod)	50
NP15/60/140	21218037	3779279	60	140	1.5	18	Ø5	min (n x Rlat,k ; 20/kmod)	100
NP15/60/160	21217617	5653464	60	160	1.5	20	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/180	21218045	3779287	60	180	1.5	23	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/200	21217658	5653498	60	200	1.5	25	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/220	21217625	5653472	60	220	1.5	28	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/240	41863666	1280559	60	240	1.5	30	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/300	21217682	5653522	60	300	1.5	38	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/340	21217641	5653480	60	340	1.5	43	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/420	21217666	5653506	60	420	1.5	53	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/60/500	21217674	5653514	60	500	1.5	63	Ø5	min (n x Rlat,k ; 20/kmod)	50
NP15/80/100	21217708	5653605	80	100	1.5	18	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/140	21593918	8977811	80	140	1.5	25	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/180	21217955	5653530	80	180	1.5	32	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/200	41711653	1267928	80	200	1.5	35	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/220	21218052	3779139	80	220	1.5	39	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/240	21218060	1644095	80	240	1.5	42	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/260	43145003	1392639	80	260	1.5	46	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/280	21217732	5653613	80	280	1.5	49	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/300	21593926	8977829	80	300	1.5	53	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/340	21217757	5653548	80	340	1.5	60	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/380	21217765	5653621	80	380	1.5	67	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/420	21217773	5653639	80	420	1.5	74	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP15/80/500	21217781	2686970	80	500	1.5	88	Ø5	min (n x Rlat,k ; 26.7/kmod)	40
NP15/100/140	21217807	5653654	100	140	1.5	32	Ø5	min (n x Rlat,k ; 33.4/kmod)	50
NP15/100/180	43139664	1392235	100	180	1.5	41	Ø5	min (n x Rlat,k ; 33.4/kmod)	-
NP15/100/200	41738756	1267931	100	200	1.5	45	Ø5	min (n x Rlat,k ; 33.4/kmod)	50
NP15/100/220	21218078	3779147	100	220	1.5	50	Ø5	min (n x Rlat,k ; 33.4/kmod)	50
NP15/100/240	21218086	1644103	100	240	1.5	54	Ø5	min (n x Rlat,k ; 33.4/kmod)	50
NP15/100/300	21593934	8977837	100	300	1.5	68	Ø5	min (n x Rlat,k ; 33.4/kmod)	50
NP15/100/340	21217856	5653688	100	340	1.5	77	Ø5	min (n x Rlat,k ; 33.4/kmod)	50
NP15/100/380	21593942	8977845	100	380	1.5	86	Ø5	min (n x Rlat,k ; 40.1/kmod)	25
NP15/120/160	21217849	5653662	120	160	1.5	44	Ø5	min (n x Rlat,k ; 40.1/kmod)	50
NP15/120/220	21218094	1644111	120	220	1.5	61	Ø5	min (n x Rlat,k ; 40.1/kmod)	50
NP15/120/240	41738760	1267992	120	240	1.5	66	Ø5	min (n x Rlat,k ; 40.1/kmod)	50
NP15/120/260	24176091	5768967	120	260	1.5	72	Ø5	min (n x Rlat,k ; 40.1/kmod)	50
NP15/120/300	41738775	1267998	120	300	1.5	83	Ø5	min (n x Rlat,k ; 40.1/kmod)	25
NP15/120/340	43139672	1392236	120	340	1.5	94	Ø5	min (n x Rlat,k ; 40.1/kmod)	25
NP15/120/380	43139698	1392237	120	380	1.5	105	Ø5	min (n x Rlat,k ; 40.1/kmod)	25
NP15/140/140	43139717	1392239	140	140	1.5	46	Ø5	min (n x Rlat,k ; 46.8/kmod)	-
NP15/140/180	43139721	1392240	140	180	1.5	59	Ø5	min (n x Rlat,k ; 46.8/kmod)	50
NP15/140/200	21217880	5653704	140	200	1.5	65	Ø5	min (n x Rlat,k ; 46.8/kmod)	50
NP15/140/220	43139740	1392241	140	220	1.5	72	Ø5	min (n x Rlat,k ; 46.8/kmod)	-
NP15/140/240	21593959	8977852	140	240	1.5	78	Ø5	min (n x Rlat,k ; 46.8/kmod)	50
NP15/140/260	21218003	5653738	140	260	1.5	85	Ø5	min (n x Rlat,k ; 46.8/kmod)	50
NP15/140/300	21217906	5650502	140	300	1.5	98	Ø5	min (n x Rlat,k ; 46.8/kmod)	25
NP15/140/380	43139823	1392296	140	380	1.5	124	Ø5	min (n x Rlat,k ; 46.8/kmod)	25
NP15/140/420	43139838	1392298	140	420	1.5	137	Ø5	min (n x Rlat,k ; 46.8/kmod)	25
NP15/160/180	21593967	8977860	160	180	1.5	68	Ø5	min (n x Rlat,k ; 53.5/kmod)	50
NP15/160/220	21217922	5653712	160	220	1.5	83	Ø5	min (n x Rlat,k ; 53.5/kmod)	50
NP15/160/240	21593975	8977878	160	240	1.5	90	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP15/160/260	21217948	1921394	160	260	1.5	98	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP15/160/340	21218029	2686897	160	340	1.5	128	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP15/160/380	43139842	1392300	160	380	1.5	143	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP15/160/400	41738786	1268000	160	400	1.5	150	Ø5	min (n x Rlat,k ; 53.5/kmod)	20
NP15/160/420	43139857	1392308	160	420	1.5	158	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP15/180/180	21593983	8977886	180	180	1.5	77	Ø5	min (n x Rlat,k ; 60.1/kmod)	50
NP15/180/220	21217971	5650510	180	220	1.5	94	Ø5	min (n x Rlat,k ; 60.1/kmod)	25
NP15/200/220	21217989	2686996	200	220	1.5	105	Ø5	min (n x Rlat,k ; 66.8/kmod)	25
NP15/200/260	43139876	1392310	200	260	1.5	124	Ø5	min (n x Rlat,k ; 66.8/kmod)	25
NP15/220/220	43139880	1392312	220	220	1.5	116	Ø5	min (n x Rlat,k ; 73.5/kmod)	25
NP15/220/260	43139906	1392313	220	260	1.5	137	Ø5	min (n x Rlat,k ; 73.5/kmod)	25
NP15/220/300	43139925	1392315	220	300	1.5	158	Ø5	min (n x Rlat,k ; 73.5/kmod)	25
NP15/240/180	43139933	1393504	240	180	1.5	104	Ø5	min (n x Rlat,k ; 80.2/kmod)	-
NP15/240/220	43141416	1392330	240	220	1.5	127	Ø5	min (n x Rlat,k ; 80.2/kmod)	25
NP15/240/260	43141904	1392331	240	260	1.5	150	Ø5	min (n x Rlat,k ; 80.2/kmod)	-
NP15/240/300	43144935	1392332	240	300	1.5	173	Ø5	min (n x Rlat,k ; 80.2/kmod)	20
NP15/260/260	43144946	1392623	260	260	1.5	163	Ø5	min (n x Rlat,k ; 86.9/kmod)	20
NP15/280/220	43144965	1392627	280	220	1.5	149	Ø5	min (n x Rlat,k ; 93.6/kmod)	25
NP15/280/260	43144973	1392635	280	260	1.5	173	Ø5	min (n x Rlat,k ; 93.6/kmod)	20
NP15/280/300	43144984	1392638	280	300	1.5	203	Ø5	min (n x Rlat,k ; 93.6/kmod)	20
NP15/320/140	21218011	5653746	320	140	1.5	109	Ø5	min (n x Rlat,k ; 106.9/kmod)	25
NP20/40/120	21218342	3779154	40	120	2	9	Ø5	min (n x Rlat,k ; 17.8/kmod)	100
NP20/40/160	21594007	8977902	40	160	2	12	Ø5	min (n x Rlat,k ; 17.8/kmod)	50
NP20/40/200	-	-	40	200	2	15	Ø5	min (n x Rlat,k ; 17.8/kmod)	-
NP20/50/200	21218359	8256240	50	200	2	20	Ø5	min (n x Rlat,k ; 23.8/kmod)	50
NP20/60/140	21594023	8977910	60	140	2	18	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP20/60/160	-	-	60	160	2	20	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP20/60/200	21594114	8977928	60	200	2	25	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP20/60/240	21218367	8258154	60	240	2	30	Ø5	min (n x Rlat,k ; 26.7/kmod)	50
NP20/80/160	-	-	80	160	2	28	Ø5	min (n x Rlat,k ; 35.6/kmod)	50
NP20/80/200	21594031	8977936	80	200	2	35	Ø5	min (n x Rlat,k ; 35.6/kmod)	50
NP20/80/220	-	-	80	220	2	39	Ø5	min (n x Rlat,k ; 35.6/kmod)	50
NP20/80/240	21218185	5650346	80	240	2	42	Ø5	min (n x Rlat,k ; 35.6/kmod)	50
NP20/80/300	21594049	8977944	80	300	2	53	Ø5	min (n x Rlat,k ; 35.6/kmod)	50
NP20/100/140	21218201	7742414	100	140	2	32	Ø5	min (n x Rlat,k ; 44.6/kmod)	50
NP20/100/160	-	-	100	160	2	36	Ø5	min (n x Rlat,k ; 44.6/kmod)	50
NP20/100/200	21594056	8977951	100	200	2	45	Ø5	min (n x Rlat,k ; 44.6/kmod)	50
NP20/100/240	21218227	5650429	100	240	2	54	Ø5	min (n x Rlat,k ; 44.6/kmod)	50
NP20/100/260	21218235	5653779	100	260	2	59	Ø5	min (n x Rlat,k ; 44.6/kmod)	50
NP20/100/300	21594064	8977969	100	300	2	68	Ø5	min (n x Rlat,k ; 44.6/kmod)	25
NP20/100/400	21218250	2184331	100	400	2	89	Ø5	min (n x Rlat,k ; 44.6/kmod)	25
NP20/100/500	21218268	2184349	100	500	2	112	Ø5	min (n x Rlat,k ; 44.6/kmod)	25
NP20/120/160	-	-	120	160	2	44	Ø5	min (n x Rlat,k ; 53.5/kmod)	50
NP20/120/200	21218276	7742422	120	200	2	55	Ø5	min (n x Rlat,k ; 53.5/kmod)	50
NP20/120/240	21594072	8977977	120	240	2	66	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP20/120/260	21218292	5653787	120	260	2	72	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP20/120/300	21594080	8977985	120	300	2	83	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP20/120/400	24176158	5018533	120	400	2	110	Ø5	min (n x Rlat,k ; 53.5/kmod)	25
NP20/140/200	-	-	140	200	2	65	Ø5	min (n x Rlat,k ; 62.4/kmod)	25
NP20/140/240	-	-	140	240	2	78	Ø5	min (n x Rlat,k ; 62.4/kmod)	25
NP20/140/400	21594098	8977993	140	400	2	130	Ø5	min (n x Rlat,k ; 62.4/kmod)	25
NP20/160/300	24176141	5650130	160	300	2	113	Ø5	min (n x Rlat,k ; 71.3/kmod)	25
NP20/160/400	21218326	5788246	160	400	2	150	Ø5	min (n x Rlat,k ; 71.3/kmod)	20
NP20/200/300	21594106	8978009	200	300	2	200	Ø5	min (n x Rlat,k ; 89.1/kmod)	20
NP20/350/40	24176166	1292251	350	40	2	34	Ø5	-	-
NP40/120	-	-	40	120	1.5	9	Ø4.1	min (n x Rlat,k ; 14.2)	-
NP80/140	-	-	80	140	1.5	25	Ø4.1	min (n x Rlat,k ; 28.3)	-
NP80/180	-	-	80	180	1.5	32	Ø4.1	min (n x Rlat,k ; 28.3)	-
NP80/200	-	-	80	200	1.5	35	Ø4.1	min (n x Rlat,k ; 28.3)	-
NP80/220	-	-	80	220	1.5	39	Ø4.1	min (n x Rlat,k ; 28.3)	-
NP80/260	-	-	80	260	1.5	46	Ø4.1	min (n x Rlat,k ; 28.3)	-
NP100/140	-	-	100	140	1.5	32	Ø4.1	min (n x Rlat,k ; 35.4)	-
NP100/200	-	-	100	200	1.5	45	Ø4.1	min (n x Rlat,k ; 35.4)	-
NP100/240	-	-	100	240	1.5	54	Ø4.1	min (n x Rlat,k ; 35.4)	-
NP100/300	-	-	100	300	1.5	68	Ø4.1	min (n x Rlat,k ; 35.4)	-
NP140/180	-	-	140	180	1.5	59	Ø4.1	min (n x Rlat,k ; 49.6)	-
NP140/200	-	-	140	200	1.5	65	Ø4.1	min (n x Rlat,k ; 49.6)	-
NP140/260	-	-	140	260	1.5	85	Ø4.1	min (n x Rlat,k ; 49.6)	-
NP160/340	-	-	160	340	1.5	128	Ø4.1	min (n x Rlat,k ; 56.7)	-
NP200/260	-	-	200	260	1.5	124	Ø4.1	min (n x Rlat,k ; 70.8)	-
NP220/300	-	-	220	300	1.5	158	Ø4.1	min (n x Rlat,k ; 77.9)	-
NP20/620/1240	-	-	620	1240	2	-	Ø5	-	-
NP25/620/1240	-	-	620	1240	2.5	-	Ø5	-	-
NP30/620/1240	-	-	620	1240	3	-	Ø5	-	-

With

n: the number of nails

R_lat,k : Shear capacity of the fastener
