SPF
Purlin Anchor

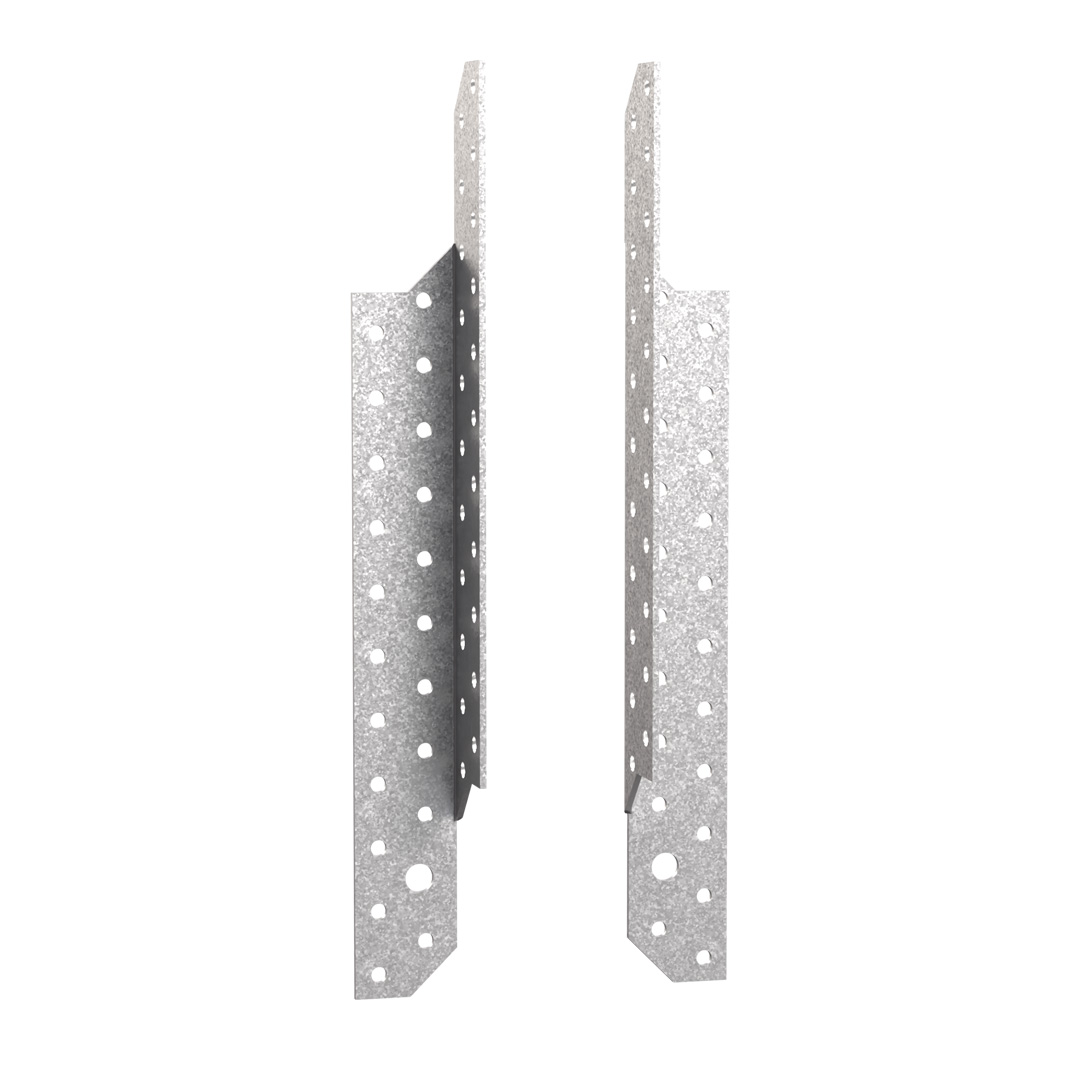

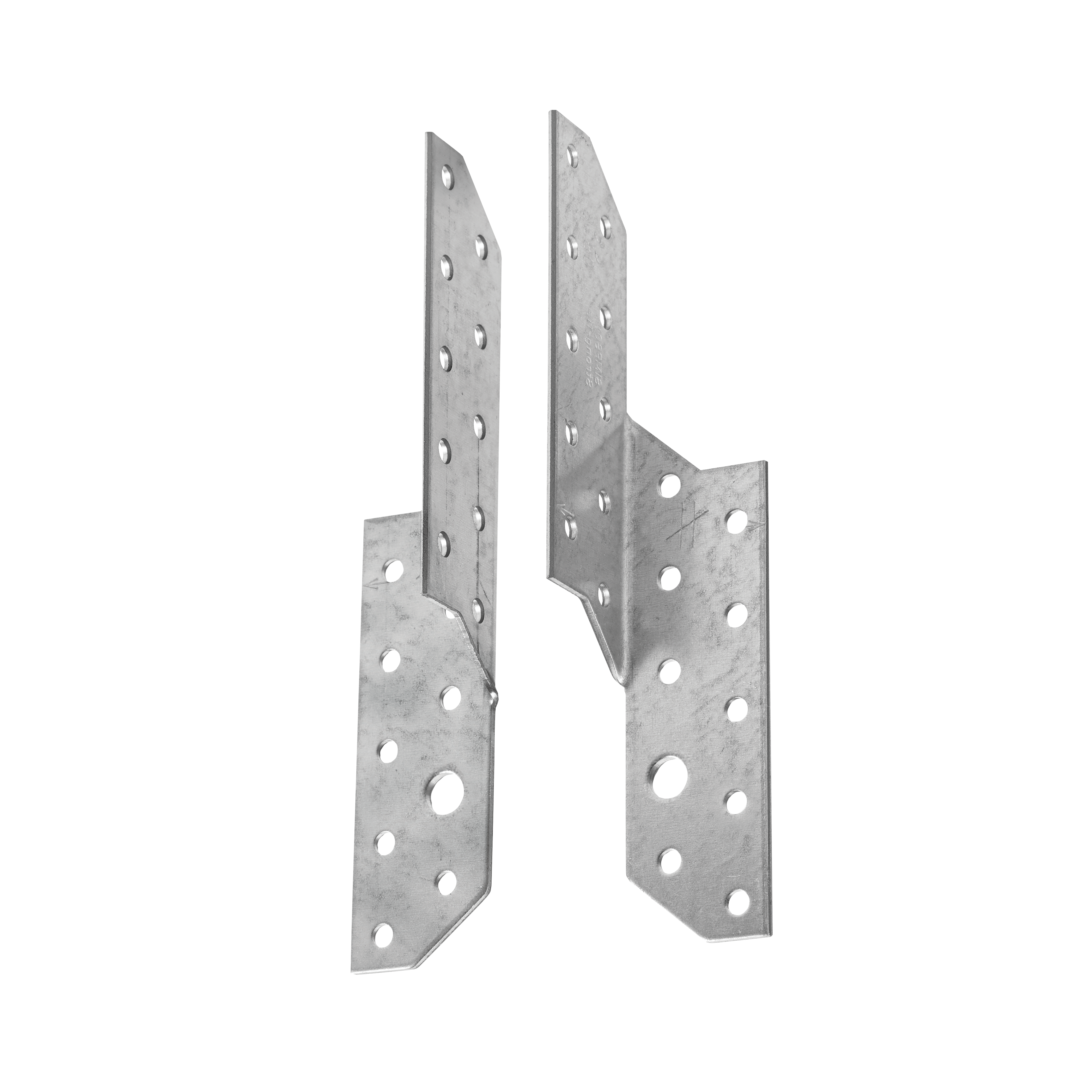

The SPF can be used to connect two timbers that cross over at 90 degrees to each other and can be used with a number of timber dimensions. The SPF are handed, left and right, and are sold separately.
Note: The brackets are manufactured in right and left versions and are sold individually.
CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
Available in Connector Selector
Product Details
Images
Features
Application
Technical Data
Dimensions
Product Dimensions
| References | NOB nr. | Tun / DB nr. | Product Dimensions [mm] | Holes Flange B | Holes Flange E | Box Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | F | t | Ø5 [mm] | Ø5 [mm] | Ø9 [mm] | ||||
| SPF170L | 21594346 | 8978157 | 170 | 32.5 | 100 | 37.5 | 14 | 2 | 10 | 9 | 1 | 100 |
| SPF170R | 21594353 | 8978165 | 170 | 32.5 | 100 | 37.5 | 14 | 2 | 10 | 9 | 1 | 100 |
| SPF210L | 21594361 | 8978173 | 210 | 32.5 | 140 | 37.5 | 14 | 2 | 14 | 13 | 1 | 100 |
| SPF210R | 21594379 | 8978181 | 210 | 32.5 | 140 | 37.5 | 14 | 2 | 14 | 13 | 1 | 100 |
| SPF250L | 21594387 | 8978199 | 250 | 32.5 | 180 | 37.5 | 14 | 2 | 18 | 17 | 1 | 100 |
| SPF250R | 21594395 | 8978207 | 250 | 32.5 | 180 | 37.5 | 14 | 2 | 18 | 17 | 1 | 100 |
| SPF290L | 21594403 | 8978215 | 290 | 32.5 | 220 | 37.5 | 14 | 2 | 22 | 21 | 1 | 100 |
| SPF290R | 21594411 | 8978223 | 290 | 32.5 | 220 | 37.5 | 14 | 2 | 22 | 21 | 1 | 100 |
| SPF330L | 22998660 | 7742596 | 330 | 32.5 | 260 | 37.5 | 14 | 2 | 26 | 25 | 2 | 50 |
| SPF330R | 22998678 | 7742604 | 330 | 32.5 | 260 | 37.5 | 14 | 2 | 26 | 25 | 2 | 50 |
| SPF370L | 42289940 | 7742612 | 370 | 32.5 | 300 | 37.5 | 14 | 2 | 30 | 29 | 2 | 50 |
| SPF370R | 43899285 | 7742620 | 370 | 32.5 | 300 | 37.5 | 14 | 2 | 30 | 29 | 2 | 50 |
The types "SPF ...LR" is a pair of left and right version
The Type "SPF...L" is the left version
The type "SPF...R" is the right version

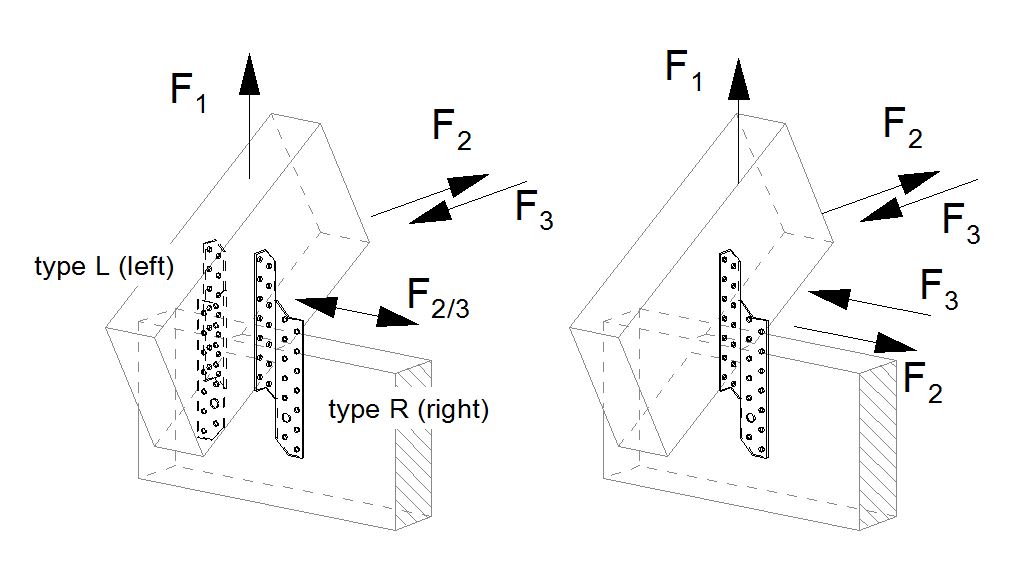

Wood/wood fastening- Characteristic values in kn
| References | Characteristic capacities - Timber to timber | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Fasteners | Product characteristic capacities - Timber C24 [kN] | Characteristic capacity - Timber C24 (formula) [kN] | ||||||||||||||||||||||||
| Header | Purlin | R1.k | R2.k | R3.k | R1.k | R2.k | R3.k | |||||||||||||||||||
| Qty | Qty | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | |
| SPF170L | 5 | 5 | 5.2 | 5.8 | 6.7 | 6.7 | 2 | 2.2 | 2.7 | 2.8 | 1.2 | 1.4 | 2 | 2.8 | min (5,2 ; 6 /kmod) | min (5,7 ; 6 /kmod) | min (6,9 ; 6 /kmod) | min (7,3 ; 6 /kmod) | 2 | 2.2 | 2.6 | 2.6 | 1.2 | 1.5 | 2 | 2.5 |
| SPF170R | 5 | 5 | 5.2 | 5.8 | 6.7 | 6.7 | 2 | 2.2 | 2.7 | 2.8 | 1.2 | 1.4 | 2 | 2.8 | min (5,2 ; 6 /kmod) | min (5,7 ; 6 /kmod) | min (6,9 ; 6 /kmod) | min (7,3 ; 6 /kmod) | 2 | 2.2 | 2.6 | 2.6 | 1.2 | 1.5 | 2 | 2.5 |
| SPF210L | 7 | 7 | 8.9 | 9.3 | 9.3 | 9.3 | 3.1 | 3.3 | 4.1 | 4.3 | 1.2 | 1.4 | 2 | 4.3 | min (8,7 ; 8,4 /kmod) | min (9,7 ; 8,4 /kmod) | min (11,7 ; 8,4 /kmod) | min (12,4 ; 8,4 /kmod) | 3.1 | 3.3 | 4.1 | 4.1 | 1.2 | 1.5 | 2 | 2.5 |
| SPF210R | 7 | 7 | 8.9 | 9.3 | 9.3 | 9.3 | 3.1 | 3.3 | 4.1 | 4.3 | 1.2 | 1.4 | 2 | 4.3 | min (8,7 ; 8,4 /kmod) | min (9,7 ; 8,4 /kmod) | min (11,7 ; 8,4 /kmod) | min (12,4 ; 8,4 /kmod) | 3.1 | 3.3 | 4.1 | 4.1 | 1.2 | 1.5 | 2 | 2.5 |
| SPF250L | 9 | 9 | 12 | 12 | 12 | 12 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (12,3 ; 10,8 /kmod) | min (13,7 ; 10,8 /kmod) | min (16,5 ; 10,8 /kmod) | min (17,5 ; 10,8 /kmod) | min (4,3 ; 3,8 /kmod^0,7) | min (4,6 ; 4,1 /kmod^0,7) | min (5,6 ; 4,6 /kmod^0,5) | min (5,6 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF250R | 9 | 9 | 12 | 12 | 12 | 12 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (12,3 ; 10,8 /kmod) | min (13,7 ; 10,8 /kmod) | min (16,5 ; 10,8 /kmod) | min (17,5 ; 10,8 /kmod) | min (4,3 ; 3,8 /kmod^0,7) | min (4,6 ; 4,1 /kmod^0,7) | min (5,6 ; 4,6 /kmod^0,5) | min (5,6 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF290L | 11 | 11 | 14.7 | 14.7 | 14.7 | 14.7 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (16,0 ; 13,2 /kmod) | min (17,8 ; 13,2 /kmod) | min (21,4 ; 13,2 /kmod) | min (22,7 ; 13,2 /kmod) | min (5,4 ; 3,8 /kmod^0,7) | min (5,7 ; 4,1 /kmod^0,7) | min (6,1 ; 4,6 /kmod^0,5) | min (6,1 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF290R | 11 | 11 | 14.7 | 14.7 | 14.7 | 14.7 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (16,0 ; 13,2 /kmod) | min (17,8 ; 13,2 /kmod) | min (21,4 ; 13,2 /kmod) | min (22,7 ; 13,2 /kmod) | min (5,4 ; 3,8 /kmod^0,7) | min (5,7 ; 4,1 /kmod^0,7) | min (6,1 ; 4,6 /kmod^0,5) | min (6,1 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF330L | 13 | 13 | 14.9 | 14.9 | 14.9 | 14.9 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (19,6 ; 13,4 /kmod) | min (21,8 ; 13,4 /kmod) | min (26,2 ; 13,4 /kmod) | min (27,8 ; 13,4 /kmod) | min (5,4 ; 3,8 /kmod^0,7) | min (5,7 ; 4,1 /kmod^0,7) | min (6,1 ; 4,6 /kmod^0,5) | min (6,1 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF330R | 13 | 13 | 14.9 | 14.9 | 14.9 | 14.9 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (19,6 ; 13,4 /kmod) | min (21,8 ; 13,4 /kmod) | min (26,2 ; 13,4 /kmod) | min (27,8 ; 13,4 /kmod) | min (5,4 ; 3,8 /kmod^0,7) | min (5,7 ; 4,1 /kmod^0,7) | min (6,1 ; 4,6 /kmod^0,5) | min (6,1 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF370L | 15 | 15 | 14.9 | 14.9 | 14.9 | 14.9 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (23,1 ; 13,4 /kmod) | min (25,7 ; 13,4 /kmod) | min (30,9 ; 13,4 /kmod) | min (32,9 ; 13,4 /kmod) | min (5,4 ; 3,8 /kmod^0,7) | min (5,7 ; 4,1 /kmod^0,7) | min (6,1 ; 4,6 /kmod^0,5) | min (6,1 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF370R | 15 | 15 | 14.9 | 14.9 | 14.9 | 14.9 | 4 | 4.2 | 4.7 | 5.1 | 1.2 | 1.4 | 2 | 5.1 | min (23,1 ; 13,4 /kmod) | min (25,7 ; 13,4 /kmod) | min (30,9 ; 13,4 /kmod) | min (32,9 ; 13,4 /kmod) | min (5,4 ; 3,8 /kmod^0,7) | min (5,7 ; 4,1 /kmod^0,7) | min (6,1 ; 4,6 /kmod^0,5) | min (6,1 ; 4,6 /kmod^0,5) | 1.2 | 1.5 | 2 | 2.5 |
| SPF170LR | 5 | 5 | 5.2 | 5.8 | 6.7 | 6.7 | 2 | 2.2 | 2.7 | 2.8 | 1.2 | 1.4 | 2 | 2.8 | min (5,2 ; 6 /kmod) | min (5,7 ; 6 /kmod) | min (6,9 ; 6 /kmod) | min (7,3 ; 6 /kmod) | 2 | 2.2 | 2.6 | 2.6 | 1.2 | 1.5 | 2 | 2.5 |
| SPF210LR | 7 | 7 | 8.9 | 9.3 | 9.3 | 9.3 | 3.1 | 3.3 | 4.1 | 4.3 | 1.2 | 1.4 | 2 | 4.3 | min (8,7 ; 8,4 /kmod) | min (9,7 ; 8,4 /kmod) | min (11,7 ; 8,4 /kmod) | min (12,4 ; 8,4 /kmod) | 3.1 | 3.3 | 4.1 | 4.1 | 1.2 | 1.5 | 2 | 2.5 |
The capacities are given for one SPF, where the header and purlin are prevented against rotation
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities
The capacity for connection with 2 SPF is the sum of the single capacities.

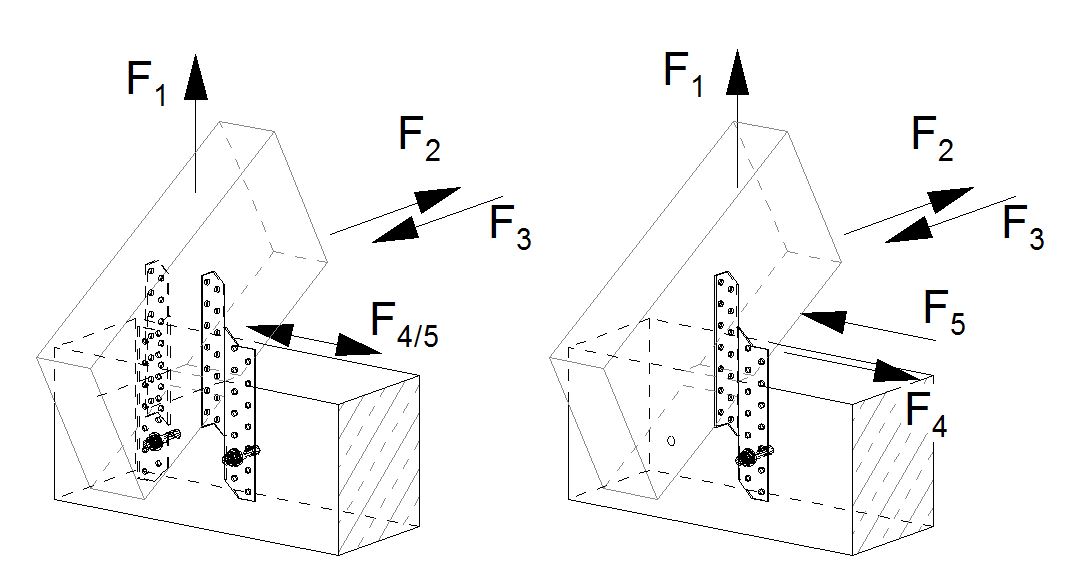

Product capacities - Timber to concrete
| References | Characteristic capacities - Timber to concrete or steel | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Fasteners | Product characteristic capacities - Timber C24 [kN] | Characteristic capacity - Timber C24 (formula) [kN] | |||||||||||||||||||||||||||||||||||||||||
| Header | Purlin | R1.k | R2.k | R3.k | R4.k | R5.k | R1.k | R2.k | R3.k | R4.k | R5.k | ||||||||||||||||||||||||||||||||
| Qty | Type | Qty | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | CNA4,0x35 | CNA4,0x40 | CNA4,0x50 | CNA4,0x60 | |
| SPF170L | 1 | M8 | 5 | 5.2 | 5.8 | 6.7 | 6.7 | 2.2 | 2.4 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.6 | 1.7 | 2 | 2.1 | - | - | - | - | min (5,3 ; 6/kmod) | min (5,7 ; 6/kmod) | min (6,9 ; 6/kmod) | min (7,4 ; 6/kmod) | min (2,3 ; 2,6/kmod) | min (2,5 ; 2,6/kmod) | min (3 ; 2,6/kmod) | min (3,2 ; 2,6/kmod) | min (1,4 ; 2,6/kmod) | min (1,6 ; 2,6/kmod) | min (1,9 ; 2,6/kmod) | min (2 ; 2,6/kmod) | 1.5 | 1.7 | 2 | 2.1 | - | - | - | - |
| SPF170R | 1 | M8 | 5 | 5.2 | 5.8 | 6.7 | 6.7 | 2.2 | 2.4 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.6 | 1.7 | 2 | 2.1 | - | - | - | - | min (5,3 ; 6/kmod) | min (5,7 ; 6/kmod) | min (6,9 ; 6/kmod) | min (7,4 ; 6/kmod) | min (2,3 ; 2,6/kmod) | min (2,5 ; 2,6/kmod) | min (3 ; 2,6/kmod) | min (3,2 ; 2,6/kmod) | min (1,4 ; 2,6/kmod) | min (1,6 ; 2,6/kmod) | min (1,9 ; 2,6/kmod) | min (2 ; 2,6/kmod) | 1.5 | 1.7 | 2 | 2.1 | - | - | - | - |
| SPF210L | 1 | M8 | 7 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.2 | 1.3 | 1.7 | 1.8 | 0.4 | 0.6 | 0.7 | 0.7 | min (8,8 ; 6/kmod) | min (9,6 ; 6/kmod) | min (11,7 ; 6/kmod) | min (12,4 ; 6/kmod) | min (3,5 ; 2,6/kmod) | min (3,8 ; 2,6/kmod) | min (4,6 ; 2,6/kmod) | min (4,9 ; 2,6/kmod) | min (2,1 ; 2,6/kmod) | min (2,3 ; 2,6/kmod) | min (2,8 ; 2,6/kmod) | min (2,9 ; 2,6/kmod) | 1.3 | 1.4 | 1.7 | 1.8 | 0.5 | 0.5 | 0.6 | 0.7 |
| SPF210R | 1 | M8 | 7 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.2 | 1.3 | 1.7 | 1.8 | 0.4 | 0.6 | 0.7 | 0.7 | min (8,8 ; 6/kmod) | min (9,6 ; 6/kmod) | min (11,7 ; 6/kmod) | min (12,4 ; 6/kmod) | min (3,5 ; 2,6/kmod) | min (3,8 ; 2,6/kmod) | min (4,6 ; 2,6/kmod) | min (4,9 ; 2,6/kmod) | min (2,1 ; 2,6/kmod) | min (2,3 ; 2,6/kmod) | min (2,8 ; 2,6/kmod) | min (2,9 ; 2,6/kmod) | 1.3 | 1.4 | 1.7 | 1.8 | 0.5 | 0.5 | 0.6 | 0.7 |
| SPF250L | 1 | M8 | 9 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.1 | 1.2 | 1.4 | 1.6 | 0.8 | 0.9 | 1 | 1.1 | min (12,5 ; 6/kmod) | min (13,6 ; 6/kmod) | min (16,5 ; 6/kmod) | min (17,6 ; 6/kmod) | min (4,8 ; 2,6/kmod) | min (5,2 ; 2,6/kmod) | min (6,3 ; 2,6/kmod) | min (6,7 ; 2,6/kmod) | min (2,6 ; 2,6/kmod) | min (2,8 ; 2,6/kmod) | min (3,4 ; 2,6/kmod) | min (3,6 ; 2,6/kmod) | 1.1 | 1.2 | 1.4 | 1.5 | 0.8 | 0.9 | 1 | 1.1 |
| SPF250R | 1 | M8 | 9 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.1 | 1.2 | 1.4 | 1.6 | 0.8 | 0.9 | 1 | 1.1 | min (12,5 ; 6/kmod) | min (13,6 ; 6/kmod) | min (16,5 ; 6/kmod) | min (17,6 ; 6/kmod) | min (4,8 ; 2,6/kmod) | min (5,2 ; 2,6/kmod) | min (6,3 ; 2,6/kmod) | min (6,7 ; 2,6/kmod) | min (2,6 ; 2,6/kmod) | min (2,8 ; 2,6/kmod) | min (3,4 ; 2,6/kmod) | min (3,6 ; 2,6/kmod) | 1.1 | 1.2 | 1.4 | 1.5 | 0.8 | 0.9 | 1 | 1.1 |
| SPF290L | 1 | M8 | 11 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 0.9 | 1 | 1.2 | 1.3 | 1 | 1.1 | 1.3 | 1.3 | min (16,2 ; 6/kmod) | min (17,6 ; 6/kmod) | min (21,4 ; 6/kmod) | min (22,8 ; 6/kmod) | min (6 ; 2,6/kmod) | min (6,6 ; 2,6/kmod) | min (7,9 ; 2,6/kmod) | min (8,4 ; 2,6/kmod) | min (3,1 ; 2,6/kmod) | min (3,3 ; 2,6/kmod) | min (4,1 ; 2,6/kmod) | min (4,3 ; 2,6/kmod) | 0.9 | 1 | 1.2 | 1.3 | 1 | 1.1 | 1.3 | 1.4 |
| SPF290R | 1 | M8 | 11 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 0.9 | 1 | 1.2 | 1.3 | 1 | 1.1 | 1.3 | 1.3 | min (16,2 ; 6/kmod) | min (17,6 ; 6/kmod) | min (21,4 ; 6/kmod) | min (22,8 ; 6/kmod) | min (6 ; 2,6/kmod) | min (6,6 ; 2,6/kmod) | min (7,9 ; 2,6/kmod) | min (8,4 ; 2,6/kmod) | min (3,1 ; 2,6/kmod) | min (3,3 ; 2,6/kmod) | min (4,1 ; 2,6/kmod) | min (4,3 ; 2,6/kmod) | 0.9 | 1 | 1.2 | 1.3 | 1 | 1.1 | 1.3 | 1.4 |
| SPF330L | 1 | M8 | 13 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 0.9 | 0.9 | 1.1 | 1.2 | 1.1 | 1.2 | 1.4 | 1.6 | min (19,8 ; 12/kmod) | min (21,6 ; 12/kmod) | min (26,2 ; 12/kmod) | min (27,9 ; 12/kmod) | min (7,2 ; 2,6/kmod) | min (7,9 ; 2,6/kmod) | min (9,6 ; 2,6/kmod) | min (10,2 ; 2,6/kmod) | min (3,6 ; 2,6/kmod) | min (3,9 ; 2,6/kmod) | min (4,7 ; 2,6/kmod) | min (5 ; 2,6/kmod) | 0.8 | 0.9 | 1.1 | 1.2 | 1.1 | 1.2 | 1.4 | 1.5 |
| SPF330R | 1 | M8 | 13 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 0.9 | 0.9 | 1.1 | 1.2 | 1.1 | 1.2 | 1.4 | 1.6 | min (19,8 ; 12/kmod) | min (21,6 ; 12/kmod) | min (26,2 ; 12/kmod) | min (27,9 ; 12/kmod) | min (7,2 ; 2,6/kmod) | min (7,9 ; 2,6/kmod) | min (9,6 ; 2,6/kmod) | min (10,2 ; 2,6/kmod) | min (3,6 ; 2,6/kmod) | min (3,9 ; 2,6/kmod) | min (4,7 ; 2,6/kmod) | min (5 ; 2,6/kmod) | 0.8 | 0.9 | 1.1 | 1.2 | 1.1 | 1.2 | 1.4 | 1.5 |
| SPF370L | 1 | M8 | 15 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 0.8 | 0.8 | 1 | 1.1 | 1.2 | 1.3 | 1.6 | 1.7 | min (23,4 ; 12/kmod) | min (25,5 ; 12/kmod) | min (30,9 ; 12/kmod) | min (32,9 ; 12/kmod) | min (8,5 ; 2,6/kmod) | min (9,3 ; 2,6/kmod) | min (11,2 ; 2,6/kmod) | min (11,9 ; 2,6/kmod) | min (4,1 ; 2,6/kmod) | min (4,4 ; 2,6/kmod) | min (5,4 ; 2,6/kmod) | min (5,7 ; 2,6/kmod) | 0.8 | 0.8 | 1 | 1.1 | 1.2 | 1.3 | 1.6 | 1.7 |
| SPF370R | 1 | M8 | 15 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 0.8 | 0.8 | 1 | 1.1 | 1.2 | 1.3 | 1.6 | 1.7 | min (23,4 ; 12/kmod) | min (25,5 ; 12/kmod) | min (30,9 ; 12/kmod) | min (32,9 ; 12/kmod) | min (8,5 ; 2,6/kmod) | min (9,3 ; 2,6/kmod) | min (11,2 ; 2,6/kmod) | min (11,9 ; 2,6/kmod) | min (4,1 ; 2,6/kmod) | min (4,4 ; 2,6/kmod) | min (5,4 ; 2,6/kmod) | min (5,7 ; 2,6/kmod) | 0.8 | 0.8 | 1 | 1.1 | 1.2 | 1.3 | 1.6 | 1.7 |
| SPF170LR | 1 | M8 | 5 | 5.2 | 5.8 | 6.7 | 6.7 | 2.2 | 2.4 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.6 | 1.7 | 2 | 2.1 | - | - | - | - | min (5,3 ; 6/kmod) | min (5,7 ; 6/kmod) | min (6,9 ; 6/kmod) | min (7,4 ; 6/kmod) | min (2,3 ; 2,6/kmod) | min (2,5 ; 2,6/kmod) | min (3 ; 2,6/kmod) | min (3,2 ; 2,6/kmod) | min (1,4 ; 2,6/kmod) | min (1,6 ; 2,6/kmod) | min (1,9 ; 2,6/kmod) | min (2 ; 2,6/kmod) | 1.5 | 1.7 | 2 | 2.1 | - | - | - | - |
| SPF210LR | 1 | M8 | 7 | 6.7 | 6.7 | 6.7 | 6.7 | 2.9 | 2.9 | 2.9 | 2.9 | 1 | 1 | 1 | 1 | 1.2 | 1.3 | 1.7 | 1.8 | 0.4 | 0.6 | 0.7 | 0.7 | min (8,8 ; 6/kmod) | min (9,6 ; 6/kmod) | min (11,7 ; 6/kmod) | min (12,4 ; 6/kmod) | min (3,5 ; 2,6/kmod) | min (3,8 ; 2,6/kmod) | min (4,6 ; 2,6/kmod) | min (4,9 ; 2,6/kmod) | min (2,1 ; 2,6/kmod) | min (2,3 ; 2,6/kmod) | min (2,8 ; 2,6/kmod) | min (2,9 ; 2,6/kmod) | 1.3 | 1.4 | 1.7 | 1.8 | 0.5 | 0.5 | 0.6 | 0.7 |
The capacities are given for one SPF, where the header and purlin are prevented against rotation.
The capacity for load direction F2/3 and for F4/5 is the sum of the single capacities.
The anchorage has to be check seperat. The middle of SPF has to be place in line between purlin and concrete.
The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995). For other load duration and service class, please refer to the ETA to get more accurate capacities
