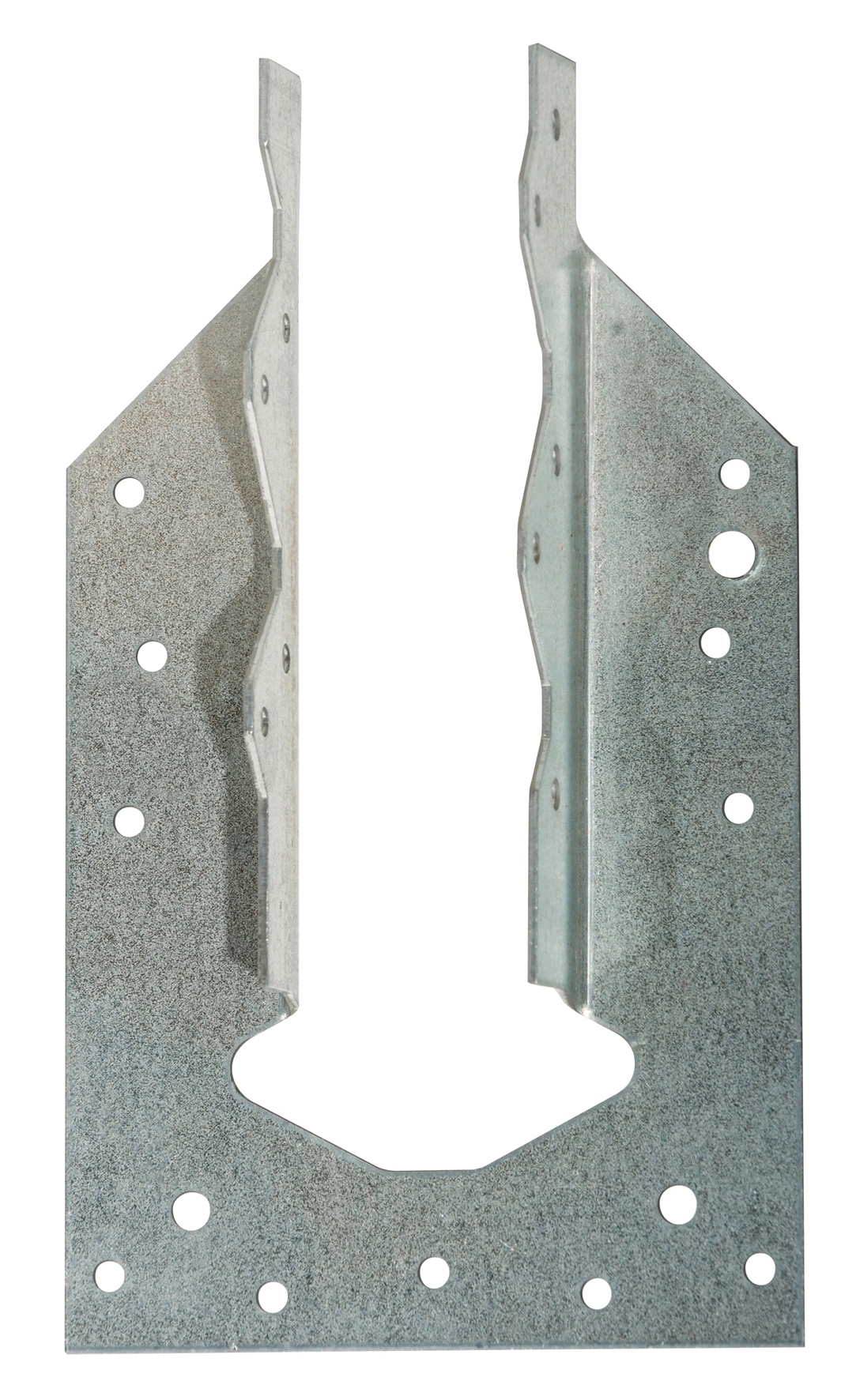

PFP
Rafter connector
PFP is used to connect a rafter with the wall plate or a post. It thus absorbs the uplift of the trusses located perpendicular to the gables.
CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
Product Details
Images
Features
Application
Technical Data
Dimensions
Dimensions and characteristic values
| References | Tun / DB nr. | NOB nr. | Dimensions [mm] | Holes | Karakteristiske værdier [F2] [kN] | Antal pr. kasse | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | t | Ø5 | Qty | |||||
| PFP48 | - | - | 170 | 122 | 48 | - | 100 | 1.5 | 2 | 25 | 8.300000000000001 | - |
| PFP36/170 | 8978280 | 21593835 | 170 | 122 | 36 | - | 100 | 1.5 | - | 9 + 6 + 5 | - | 100 |
| PFP36/390 | 8978298 | 21593843 | 386 | 122 | 36 | 50 | 100 | 1.5 | - | 9 + 6 + 5 + 28 | - | 50 |
| PFP36/390-R | 1452499 | 43974624 | 386 | 122 | 36 | 50 | 100 | 1.5 | - | 9 + 6 + 5 + 28 | - | 24 |
| PFP48/170 | 8978306 | 21593850 | 170 | 122 | 48 | - | 100 | 1.5 | 3 | 25 | 8.300000000000001 | 100 |
| PFP48/170-R | 1383081 | 42947974 | 170 | 122 | 48 | - | 100 | 1.5 | - | 14 + 6 + 5 | - | - |
| PFP48/390 | 8978314 | 21593876 | 386 | 122 | 48 | 50 | 100 | 1.5 | - | 14 + 6 + 5 + 28 | - | - |
| PFP48/390-R | 1452504 | 43974643 | 386 | 122 | 48 | 50 | 100 | 1.5 | - | 14 + 6 + 5 + 28 | - | 20 |

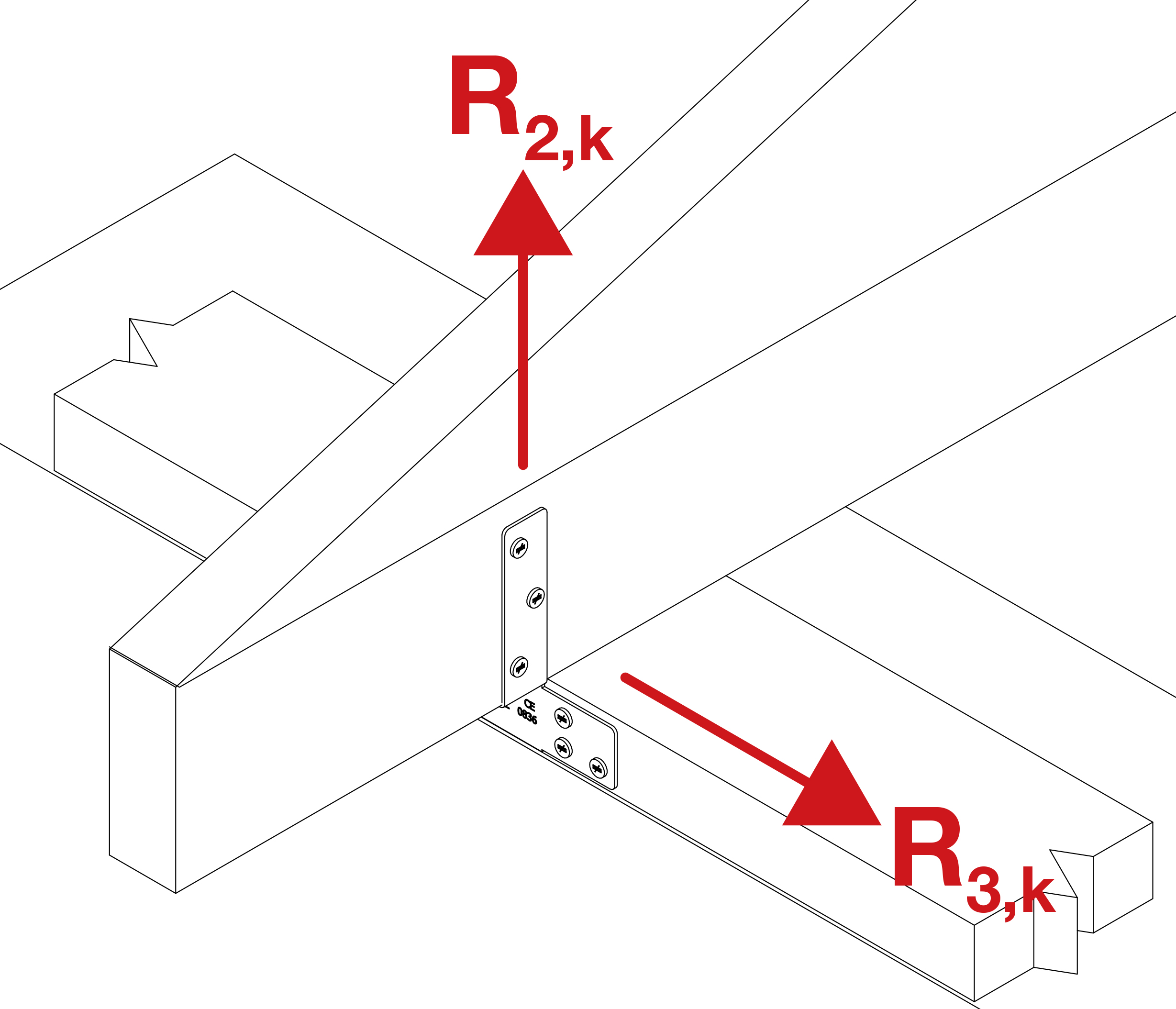

Karakteristisk bæreevne
| References | Forbindelsesmidler | Karakteristisk bæreevne, 1 anker pr. samling [R1,k] [kN] | ||
|---|---|---|---|---|
| Type | Antal i nedre del | Antal i flige | ||
| PFP48 | - | - | - | - |
| PFP36/170 | CNA3.1x22 | 3 - 4 - 5 | 2+2 - 2+2 - 3+3 | 2.3 - 3.1 - 3.9 |
| PFP36/390 | CNA3.1x22 | 3 - 4 - 5 - 12 | 2+2 - 2+2 - 3+3 - 6+6 | 2.3 - 3.1 - 3.9 - 9.3 |
| PFP36/390-R | - | - | - | - |
| PFP48/170 | CNA3.1x40 | 3 - 4 - 5 | 2+2 - 2+2 - 3+3 | 4.2 - 5.6 - 7.1 |
| PFP48/170-R | - | - | - | - |
| PFP48/390 | CNA3.1x40 | 3 - 4 - 5 - 12 | 2+2 - 2+2 - 3+3 - 6+6 | 4.2 - 5.6 - 7.1 - 16.9 |
| PFP48/390-R | - | - | - | - |

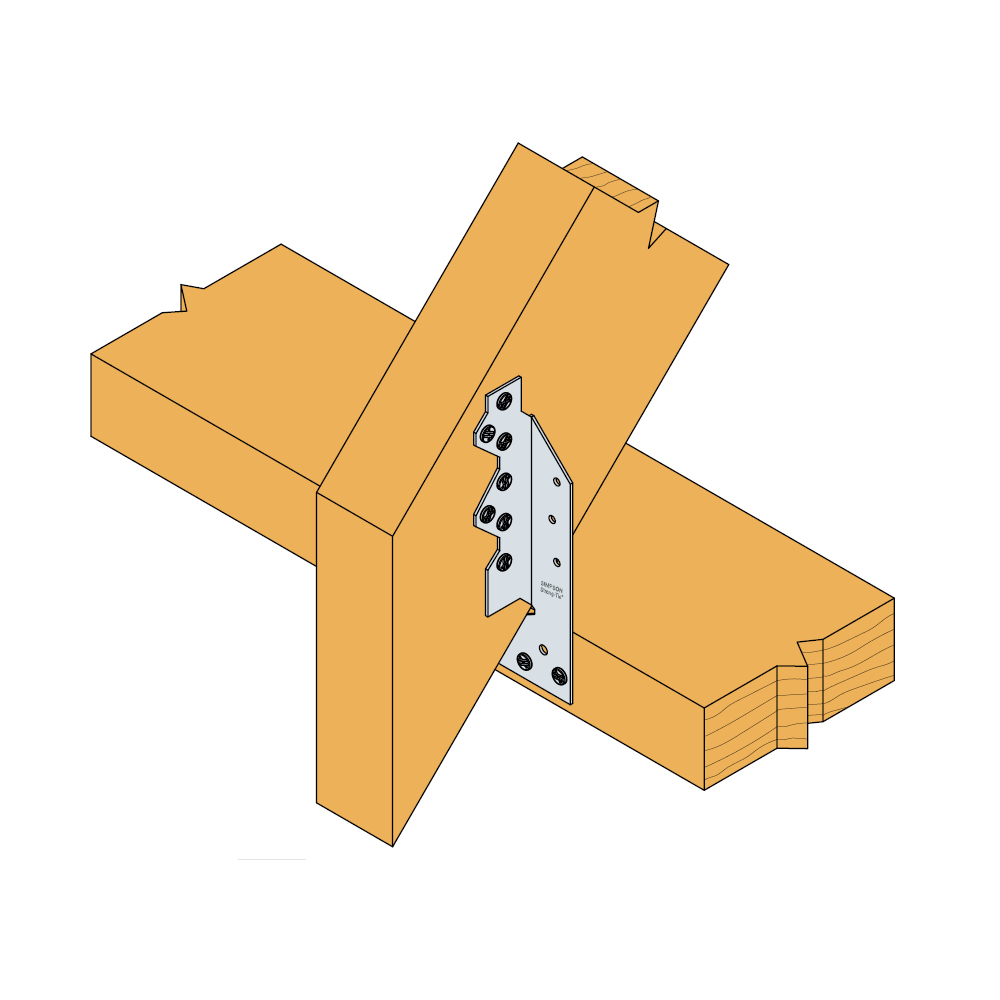

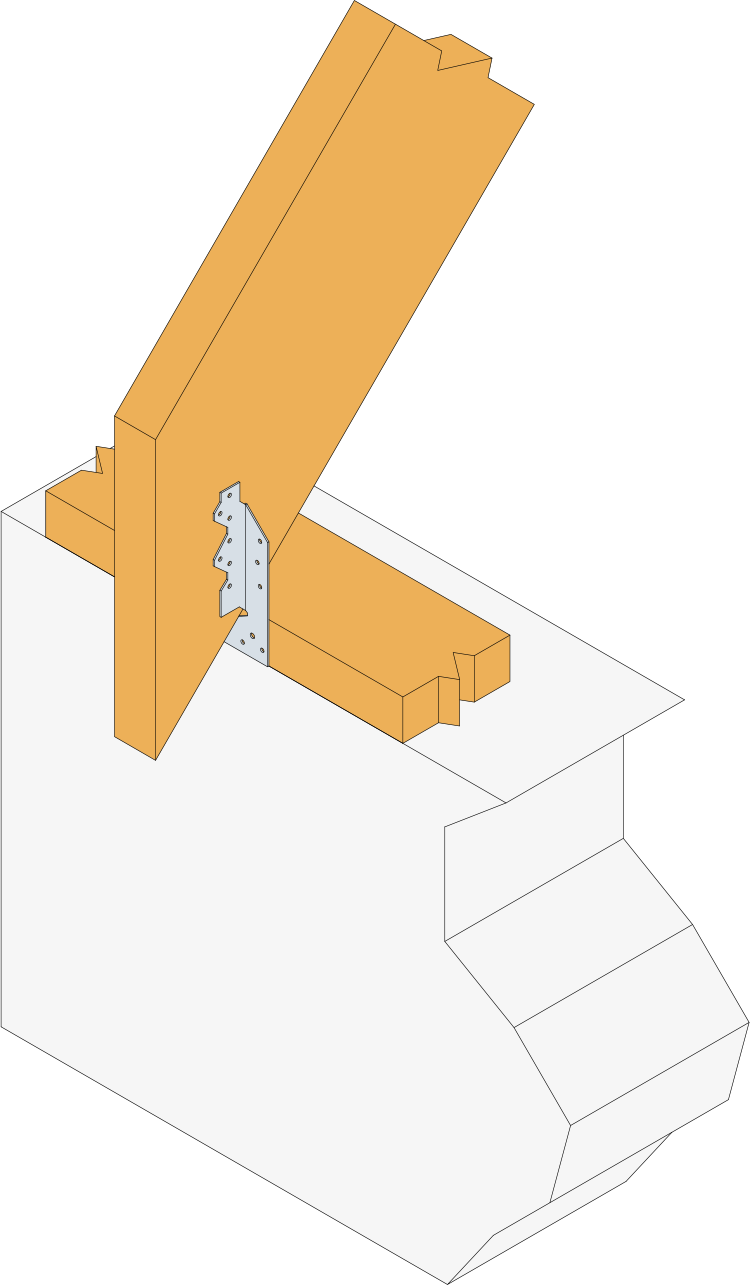

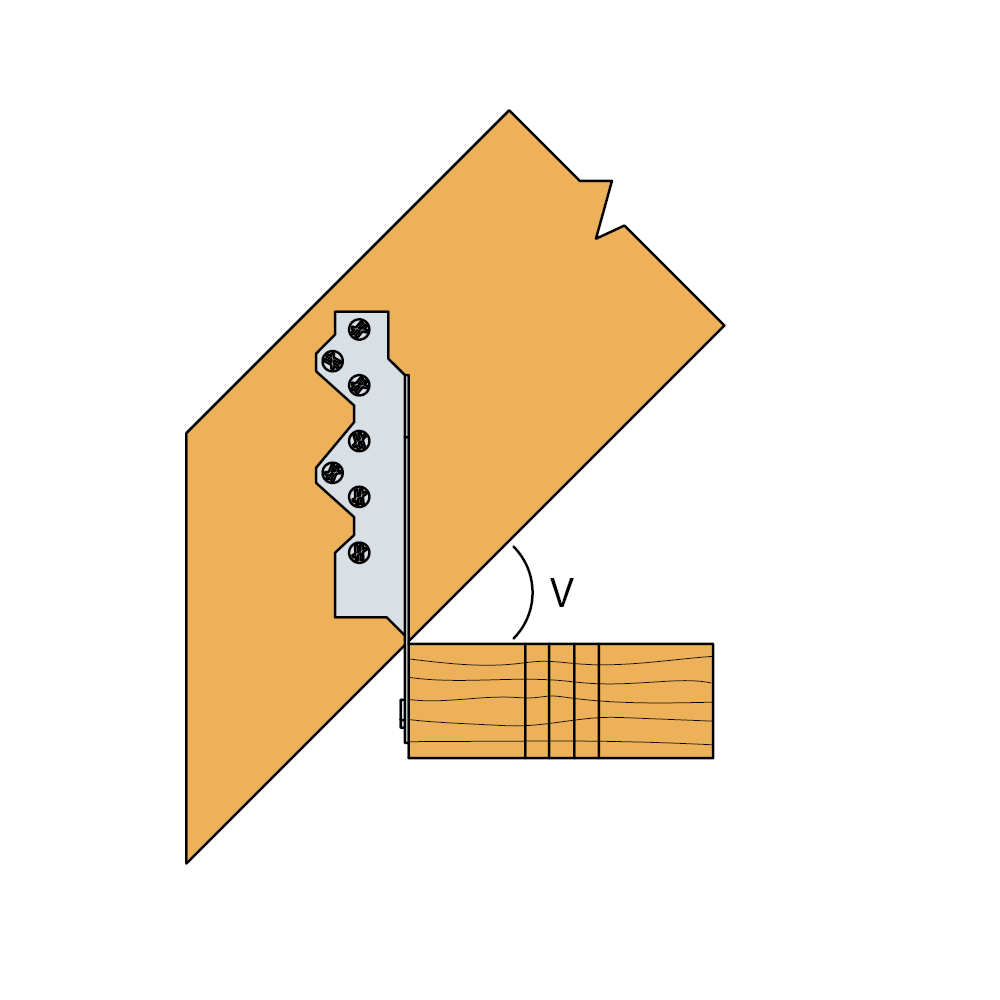

Installation
Installation
