Nails and Screws
Connector Screws
FTETL

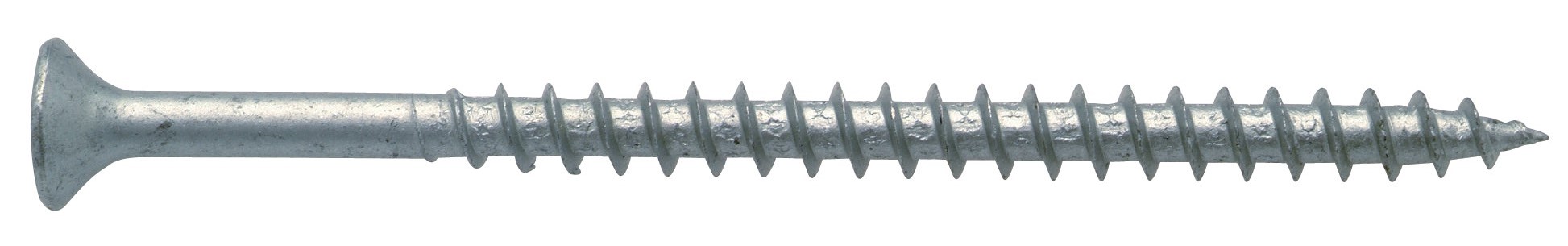

SPAX fully threaded screws

SPAX®
fully threaded screws

Technical Data Sheet
Service class 2
Electro-galvanized steel
Indoor

Product Details

Images


Technical Data

Dimensions


Product Dimensions

References Fastener dimensions [mm]
d l dh d1 lg bit
FTETL5.0X805809.73.261T20
FTETL5.0X705709.73.261T20
FTETL6.0X6066011.63.858T30

Product charateristic properties

References Product characteristic properties
Characteristic Yield Moment – My,k [Nm] Characteristic withdrawal parameter - fax,k,90° [N/mm²] Characteristic head pull-through parameter - fhead,k [N/mm²] Characteristic tensile capacity - ftens,k [kN]
FTETL5.0X805.91417.37.9
FTETL5.0X705.91417.37.9
FTETL6.0X609.51215.411

For the tension resistance is the thread length (max. thread reach) decisive.

Further technical parameters in ETA-12/0114
