Connectors
Stainless steel
BAN-S

Stainless steel bracing tape BAN

BAN bracing strips are used in roof constructions as drawbar.

Technical Data Sheet
CE Marking
Service class 3
Stainless steel A4

Product Details

Images

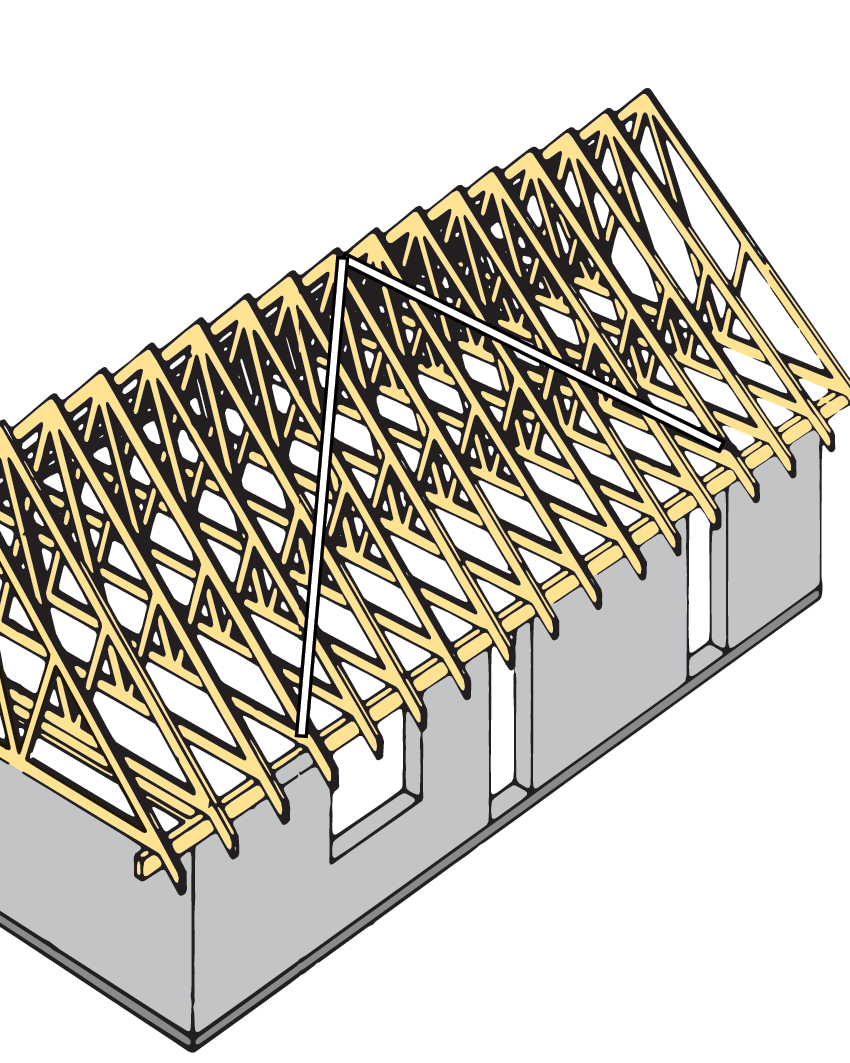

BAN windbracing.jpg

Features

Material

  • Steel quality:
    • Stainless Steel 1.4401 bzw. 1.4404 (V4A) in accordance with EN10088 standards.
    • Class III corrosion resistance


Benefits

• At higher loads can be mounted next to each other more tapes
• In these cases, it is recommended BNSP clamping device to allow a uniform tension belts.

Application

Header member

Wood, wood materials

Application area

• Widely used in building construction, but serve mainly to reinforce the roof structure.

Technical Data

Dimensions

BAN-S windband-EUdim.jpg

Dimensions and drill holes

References Tun / DB nr. NOB nr. Dimensions Holes Box Quantity
A [mm] B [m] t [mm] Ø [mm]
BAN204025S3365475212213534025251

Characteristic loadbearing table

References Characteristic bearing capacity R1,k (kN) min. of:
Steel Wood - using CNA4,0x
35 40 50 60
BAN204025S17.81.68 x n1.83 x n2.22 x n2.36 x n

Installation

Installation

Fixing

• Connection to the timber is made CNA4,0xℓ nails or screws CSA5,0xℓ.
• Connection to Simpson Strong-Tie® wind bracing system using CLIPS20 or CLIPS23.
