SDWS

Structural Wood Screw for outdoor use

The Strong-Drive® SDWS screw is a high-strength structural wood screw for outdoor use (double barrier coating) specifically designed for fastening multi-ply wood members together.

Technical Data Sheet
CE Marking
Service class 3
Revêtement double barrière
Outdoor
Solid Wood
SDWS Main Image.jpg

Product Details

Images

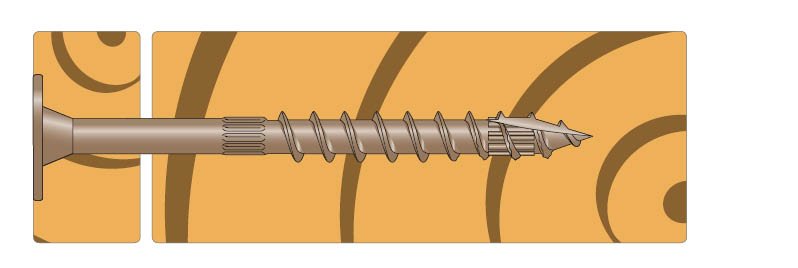

SDWS Installation Image.jpg
Stud wall assembly
Railing fastening

Features

Material

  • Tempered steel with double effect coating

Benefits

  • No pre-drill needed
  • Same capacities from head or thread
  • easier installation with the flat head
  • High shear capacity
  • Tightening of the two timber part thanks to the partial thread and large head
  • Optimized threaded length for maximum screw penetration
  • Dimensions engraved on head for an easier identification even after installation
  • Alésoir permet d'éviter la chauffe de la vis lors de l'installation.
  • Revêtement double barrière permettant une utilisation en extérieur

Application

Suitable On

  • solid wood, composite lumber, glued-laminated wood.

Scope

  • Fastening timber elements

Technical Data

Dimensions


Product dimensions for screws

References Fastener dimensions [mm]
d l dh d1 lg Bit
SDWS22300DB-R5087519.45.237T-40
SDWS22400DB-R5010019.45.259T-40
SDWS22500DB-R5012619.45.269T-40
SDWS22600DB-R5015119.45.269T-40
SDWS22800DB-R5020219.45.269T-40
SDWS221000DB-R5025219.45.269T-40

Product characteristic properties for screws

References Characteristic Yield Moment – My,k [My.k] [Nm] Characteristic withdrawal parameter - fax,k,90° [fax.k.90°] [N/mm²] Characteristic head pull-through parameter - fhead,k [fhead.k] [N/mm²] Characteristic tensile capacity - ftens,k [ftens.k] [kN] Characteristic torsional strength - ftor,k [ftor.k] [Nm]
SDWS22300DB-R5017.413.221.421.424.2
SDWS22400DB-R5017.413.221.421.424.2
SDWS22500DB-R5017.413.221.421.424.2
SDWS22600DB-R5017.413.221.421.424.2
SDWS22800DB-R5017.413.221.421.424.2
SDWS221000DB-R5017.413.221.421.424.2

Installation

Installation

Installation

  • SDW screws install best with a low-speed drill and a T40 6-lobe bit (bit included with every box of screws)
  • Pre-drilling is typically not required
  • Drive the fastener so that the top of the head is slightly embedded into the top surface of the timber. To ensure correct performance, do not under or over-drive the fastener
  • Individual screw locations may be adjusted up to 75mm to avoid conflicts with other hardware or to avoid timber defects
Railing fastening
Exterior timber element fastening
Exterior timber element fastening
Stud wall assembly
