BNK

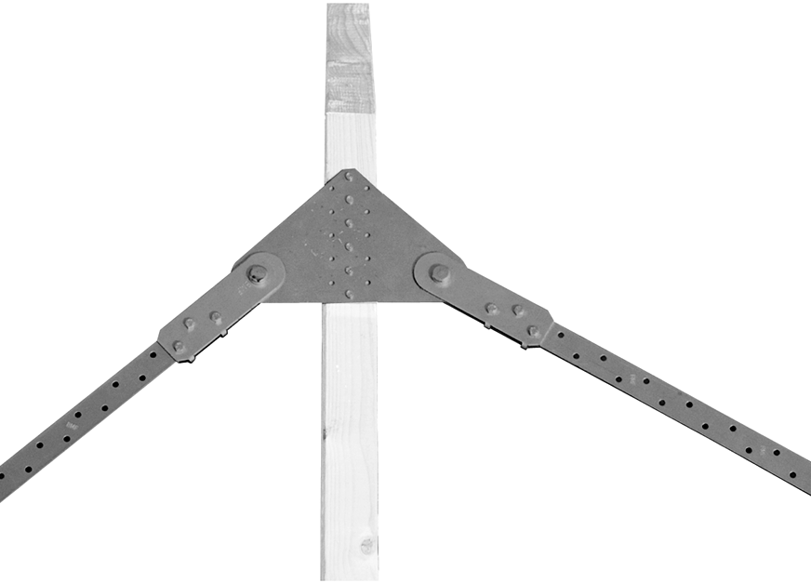

Wind Bracing Connector

To secure the connection tapes

Technical Data Sheet
CE Marking
ETA
Service class 2
Electrogalvanized steel Z275

Product Details

Images


Features

Material

Steel quality:
S250GD + Z275 according to DIN EN10346
Corrosion protection:
275 g / m galvanized on both sides 20mm

Benefits

• Connection via connectors BNSP



Application

Applicable materials

• To connect the X-shaped strip

Technical Data

Dimensions


Dimensioner

References DB. nr. NOB nr. Dimensions [mm] Huller overside
A B t Ø Qty
BNK25-1415612644595166620012524 + 1516 + 2
BNK25--20012524 + 1516 + 2
BNK40/60-B--29019025 + 2113 + 2
BNK40/60-14--29019025 + 1513 + 2

Lastbæreevnetabel BNK25 (karakteristiske værdier) - 16xCNA3,1x40

References Lastværdi R1,k (kN) til Stål Rk [kN]
Træ bredde > 80mm, ved en tilslutningsvinkel på
30° 35° 40° 45° 50° 55° 60°
BNK25-1412.613.614.916.417.519.22212.8
BNK2512.613.614.916.417.519.22212.8

Lastbæreevnetabel BNK25 (karakteristiske værdier) - 6xCNA3,1x40

References Lastværdi R1,k (kN) til Stål Rk [kN]
Træ bredde > 60mm, ved en tilslutningsvinkel på
30° 35° 40° 45° 50° 55° 60°
BNK25-144.95.35.86.36.37.58.212.8
BNK254.95.35.86.36.37.58.212.8

Lastbæreevnetabel BNK40/60 (karakteristiske værdier) - 13xCNA4,0x50

References Lastværdi R1,k (kN) til Stål Rk [kN]
Træ bredde > 80mm, ved en tilslutningsvinkel på
30° 35° 40° 45° 50° 55° 60°
BNK40/60-B17.719.621.824.126.628.827.621.4
BNK40/60-1417.719.621.824.126.628.827.621.4

Lastbæreevnetabel BNK40/60 (karakteristiske værdier) - 5xCNA4,0x50

References Lastværdi R1,k (kN) til Stål Rk [kN]
Træ bredde > 60mm, ved en tilslutningsvinkel på
30° 35° 40° 45° 50° 55° 60°
BNK40/60-B7.488.89.610.411.110.721.4
BNK40/60-147.488.89.610.411.110.721.4

Installation

Installation

Application area

• CNA4,0 × L / CNA3,1xL comb nails
• or CSA5,0 × L screws

Certification

Declaration of Performance (DoP)

uk-dop-e10-0440-05.pdf (98.63 KB)
uk-dop-e10-0440-issue-4.pdf (98.39 KB)
uk-dop-e10-0440-issue-3.pdf (41.82 KB)
uk-dop-e10-0440.pdf (32.05 KB)
026db6e0dc746a78bc80366e512011b2a04f3d00.pdf (32.05 KB)

European Technical Assessment (ETA)

eta-10-0440-2020-11-12.pdf (3.03 MB)
eta100440-sst-roof-connectors-r4-2019.pdf (3.13 MB)
