ZYK / ZYKT
Zyklop

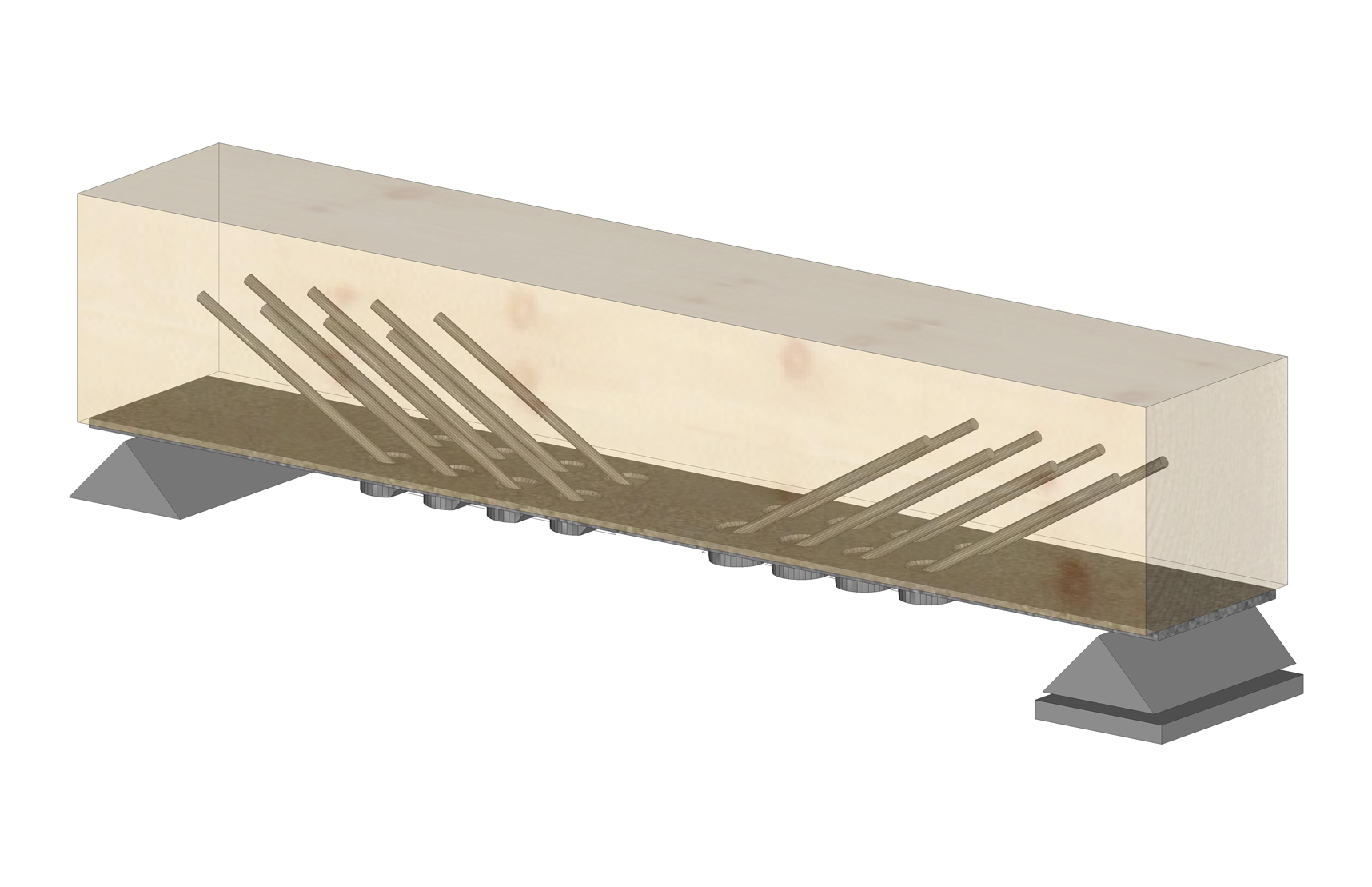

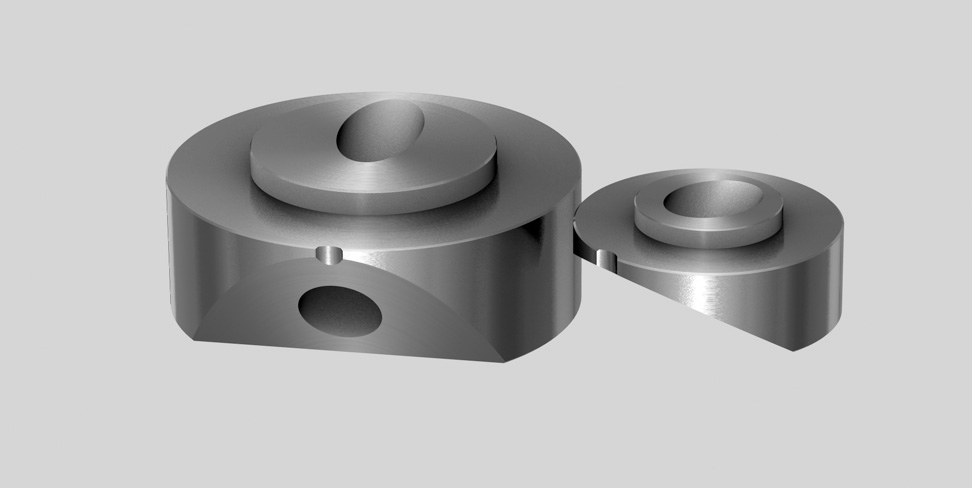

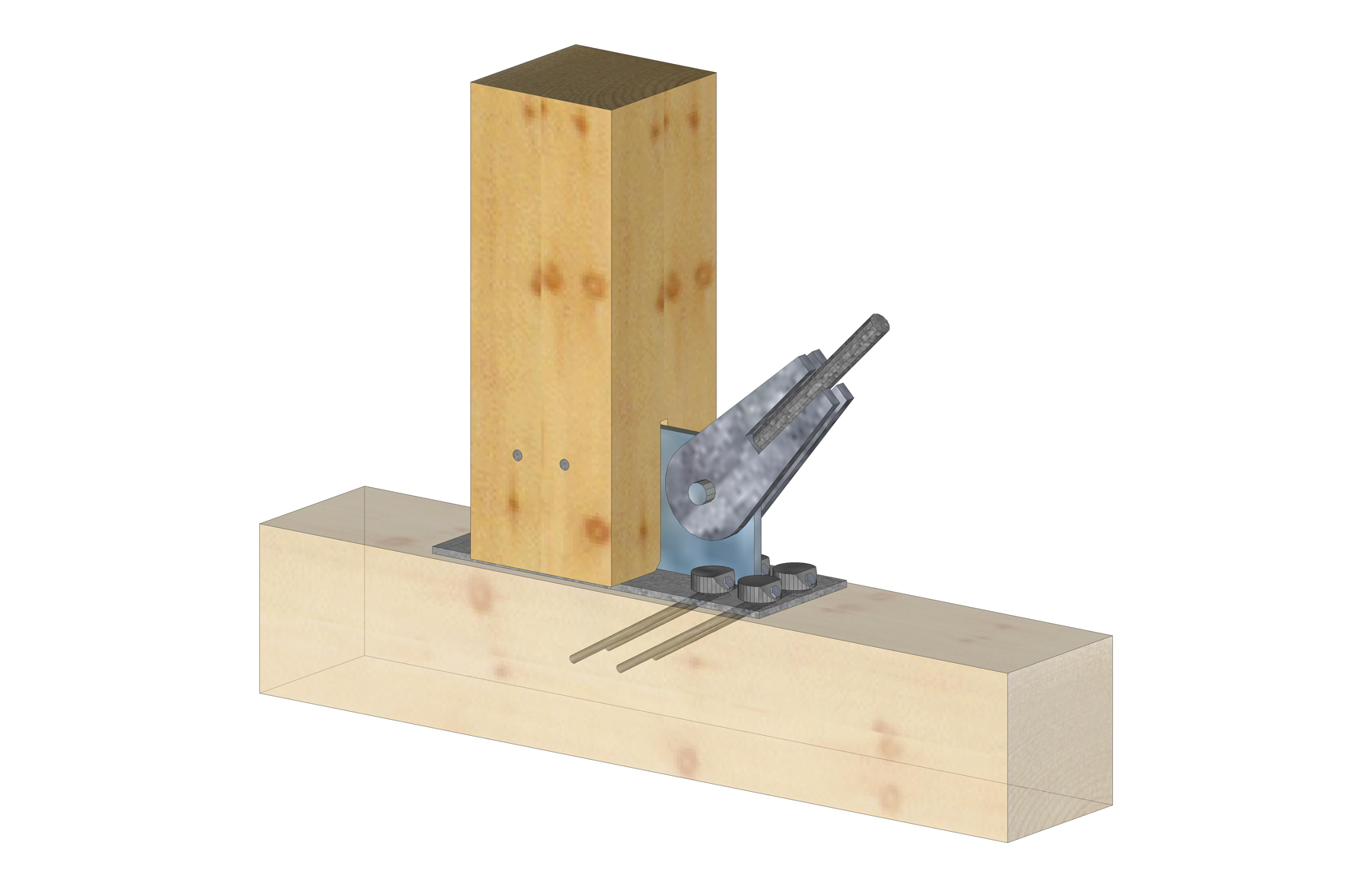

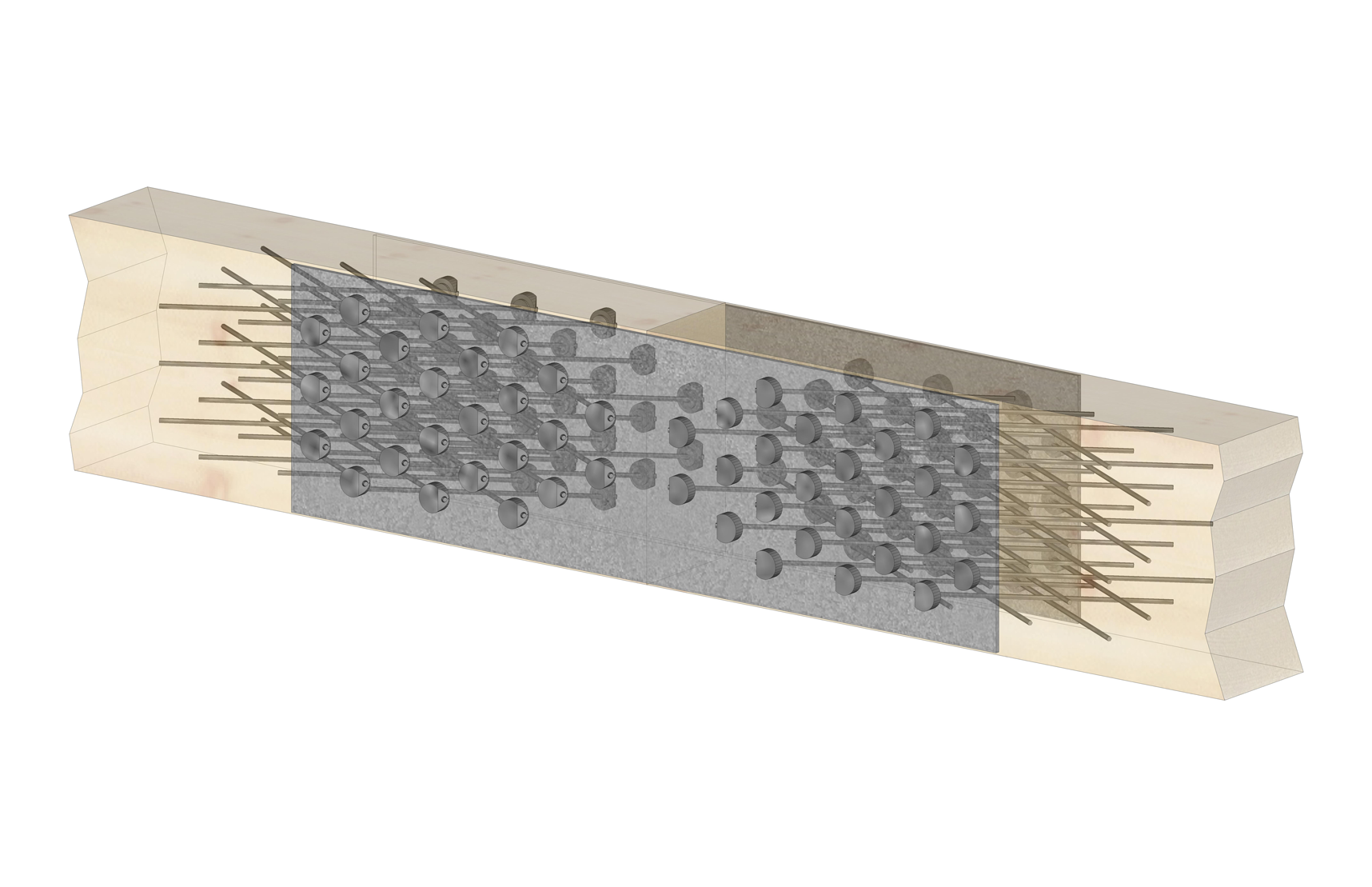

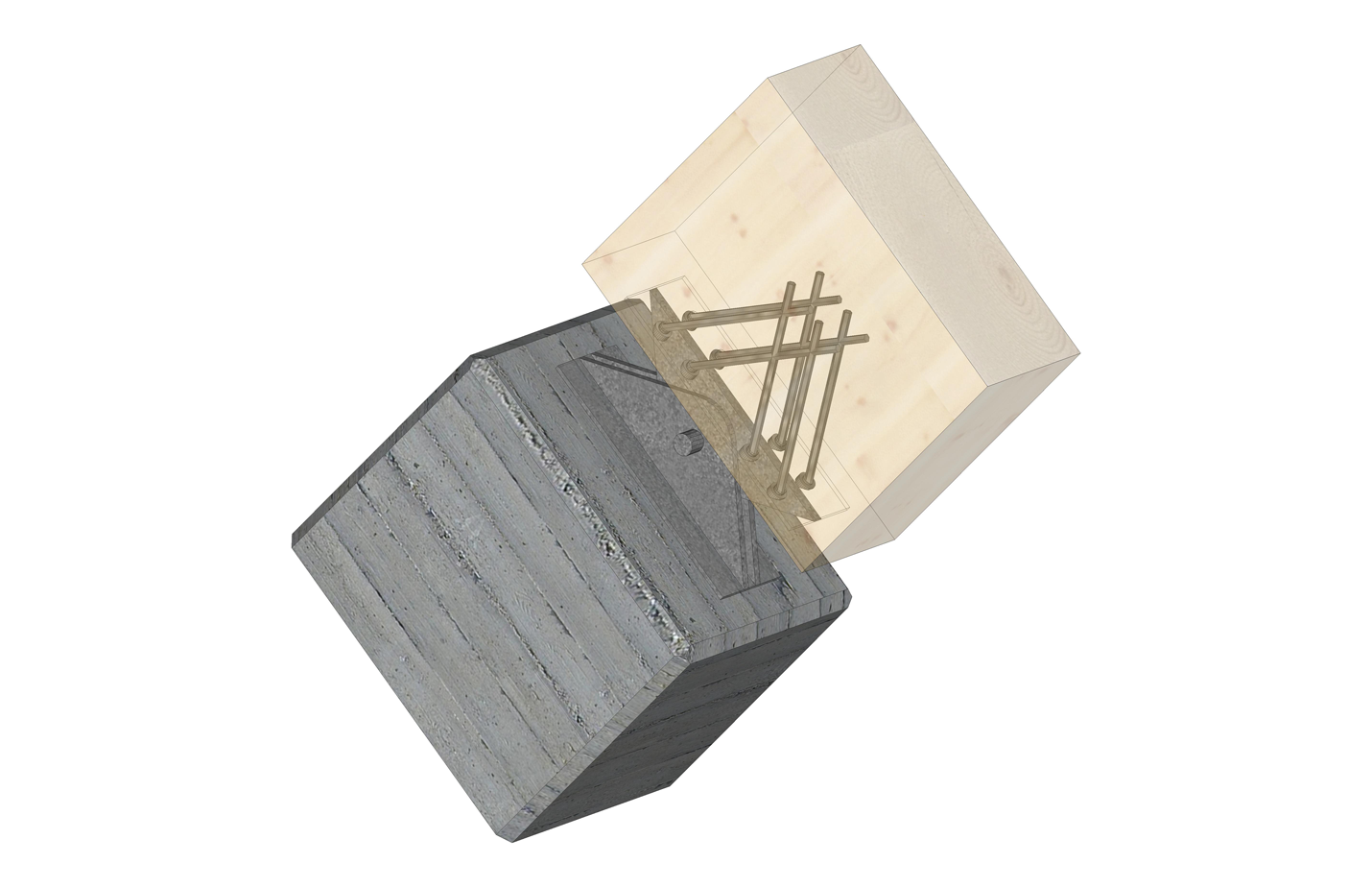

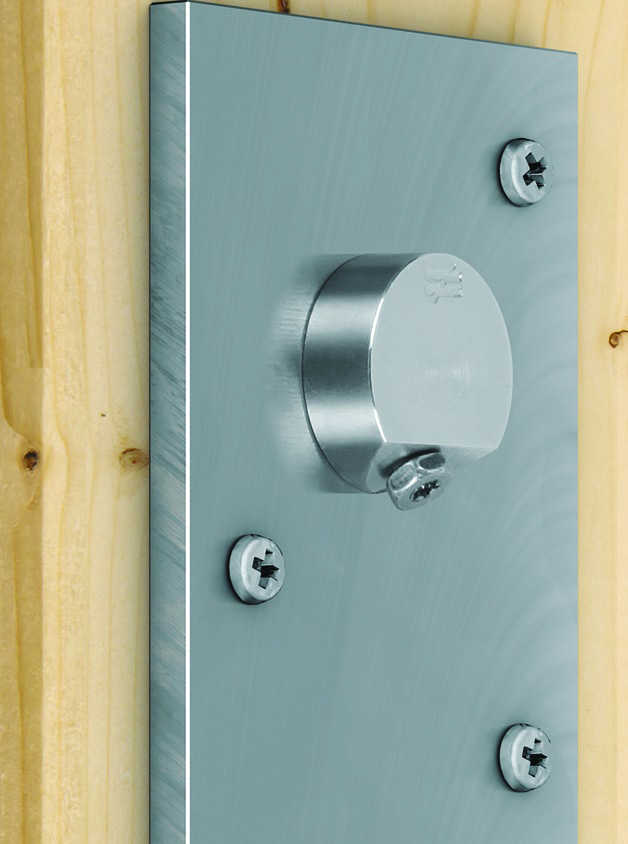

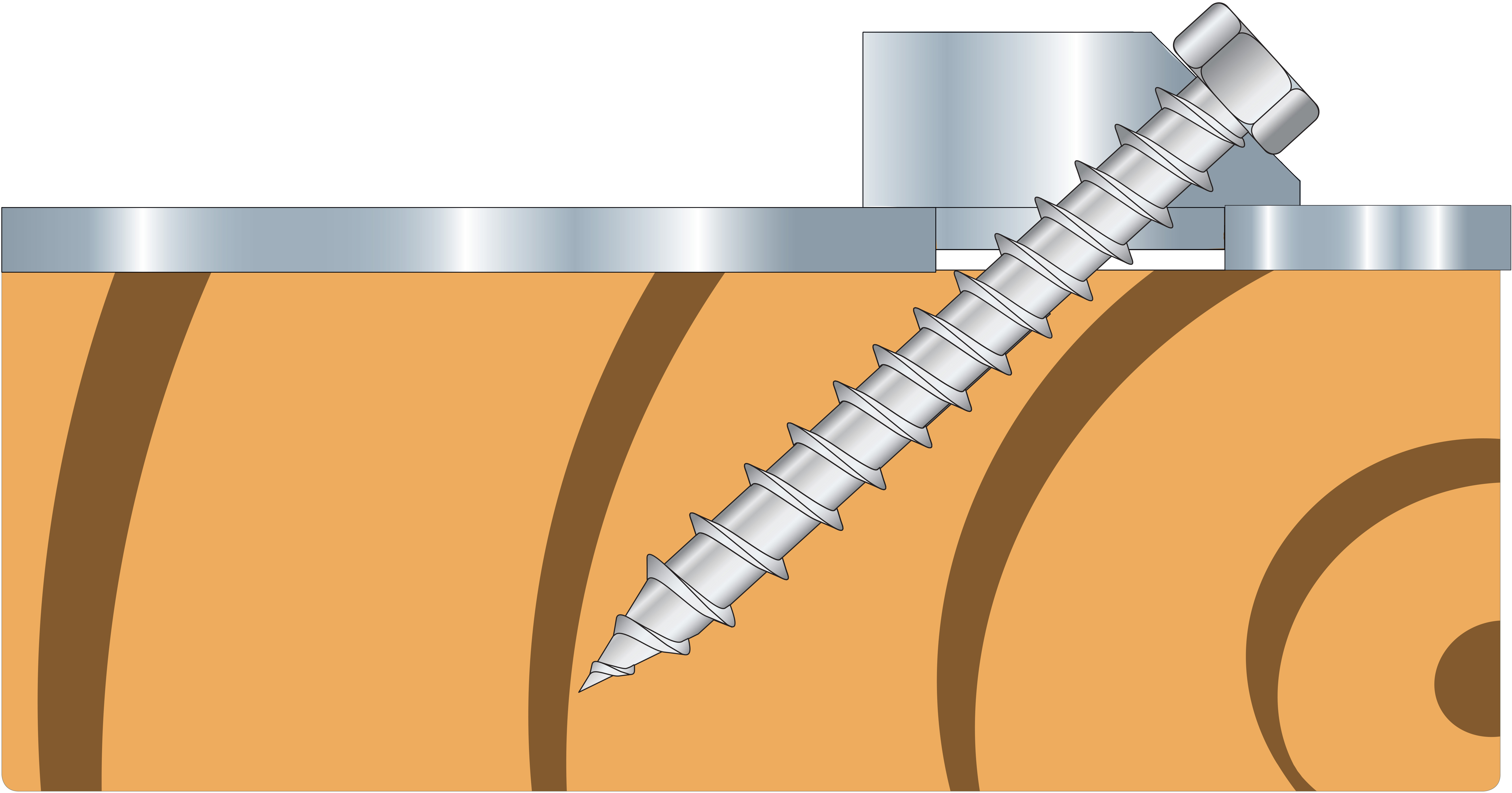

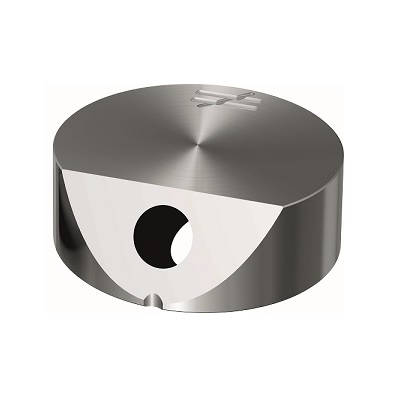

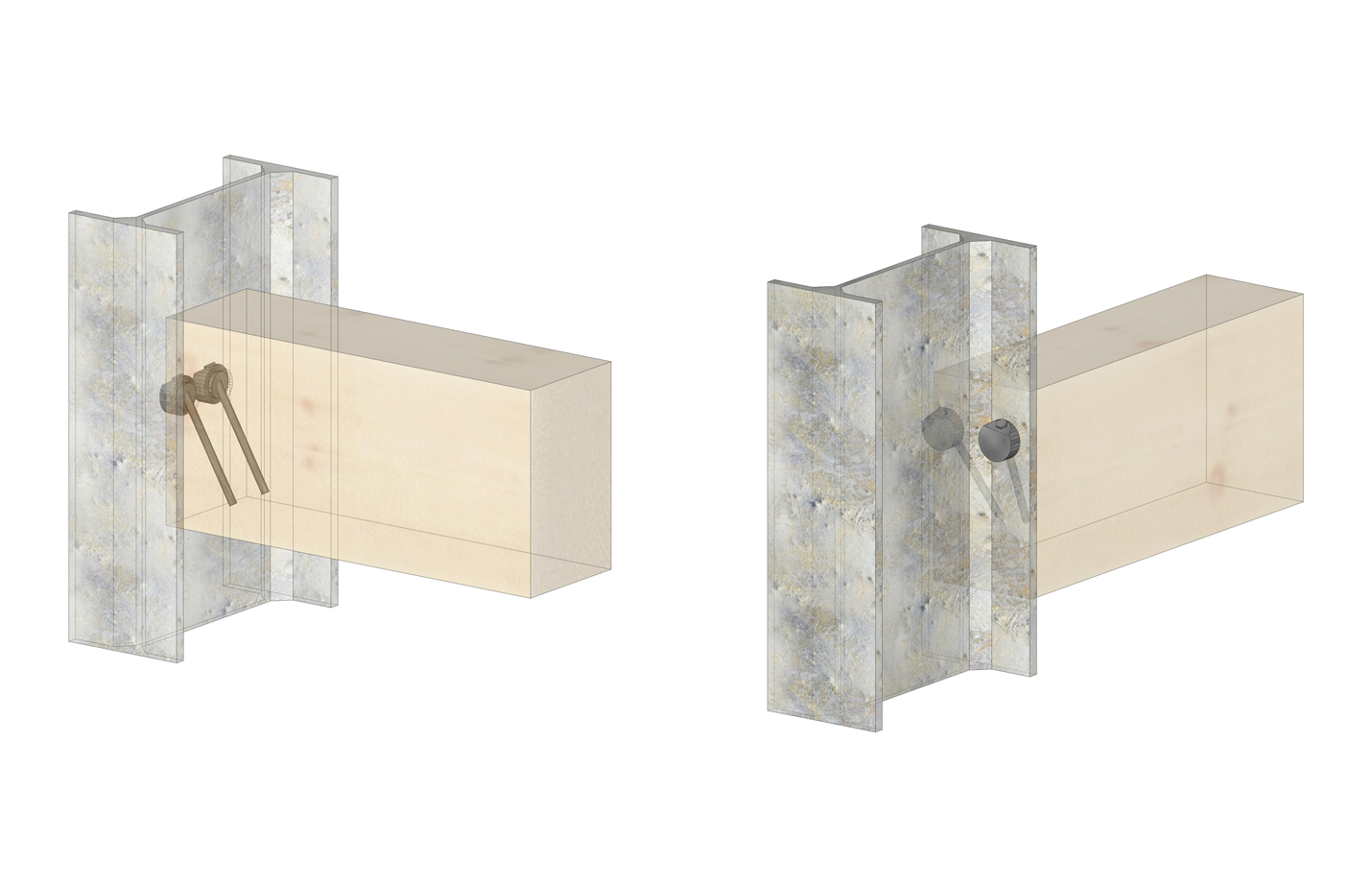

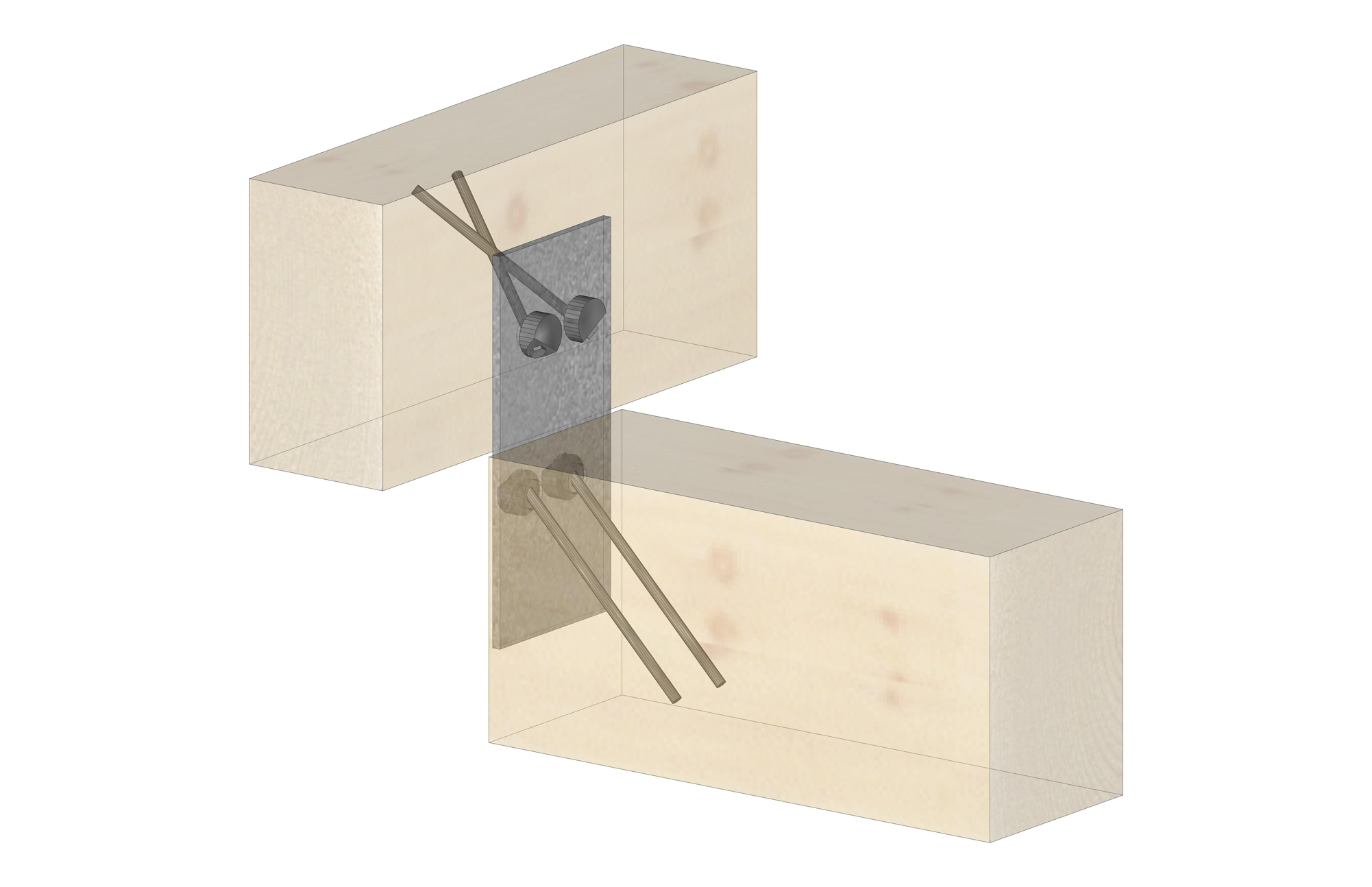

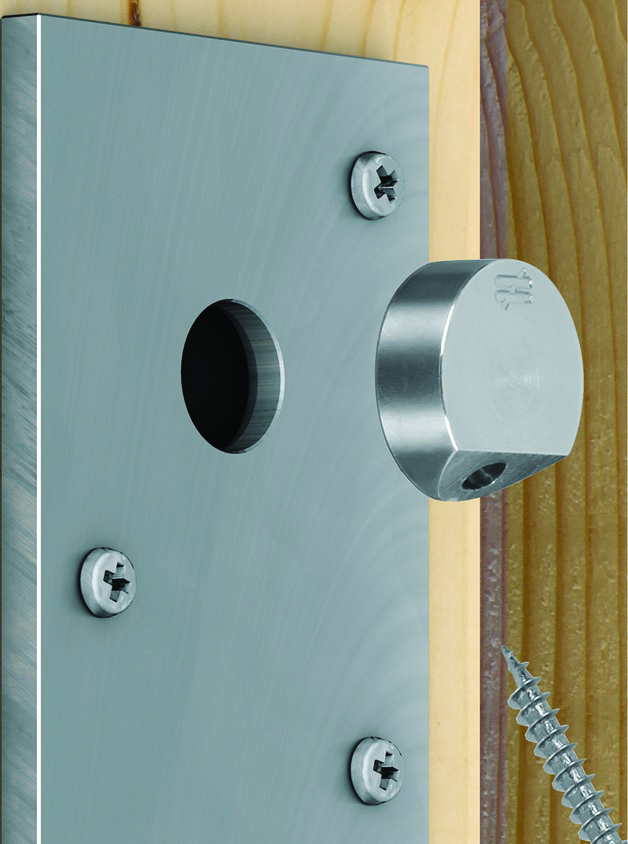

CYCLOPS ™ is a special connector that lets you connect sheet steel to wood components using an inclined plane fully threaded screw. The steel plate is imperative rectangular openings. Connection can be made on the side or end of the timber.
CE Marking
ETA
Service class 2
Electro-galvanized steel
Indoor
Product Details
Images
Features
Application
Technical Data
Dimensions
Dimensions

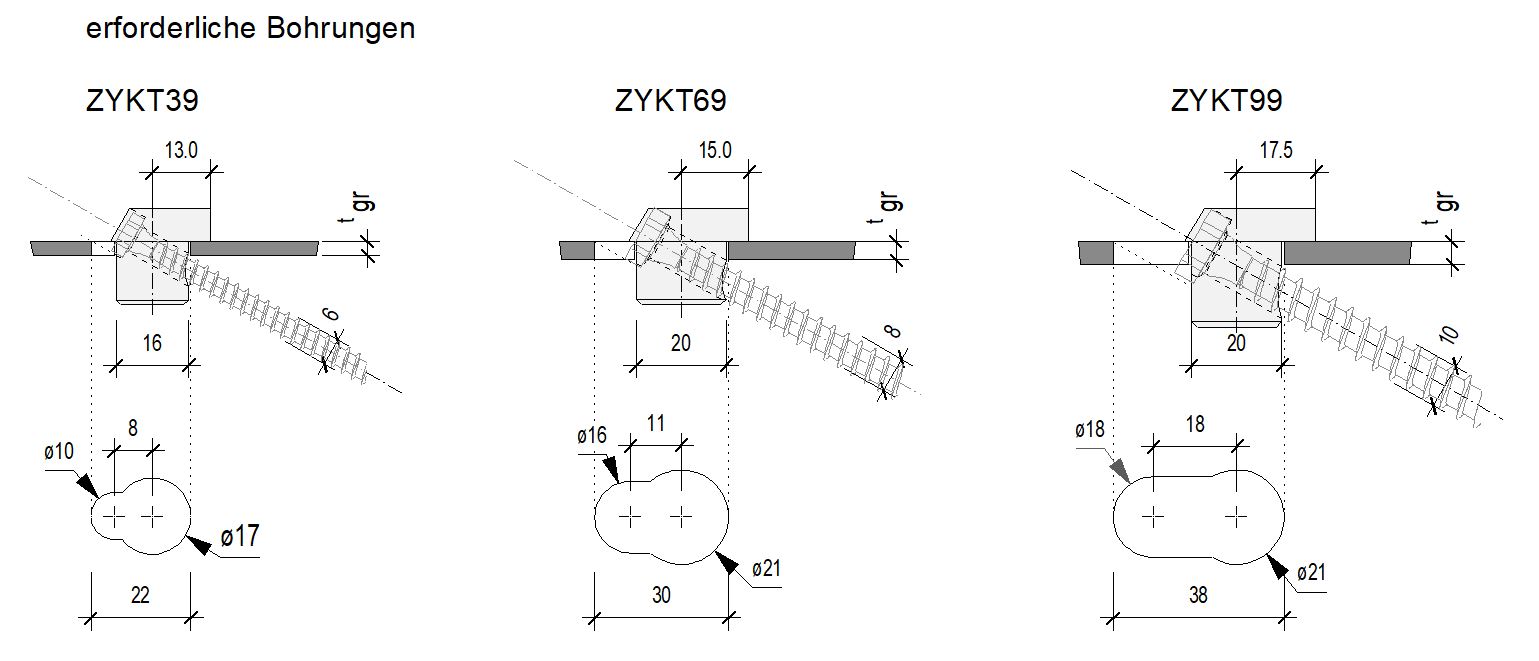

| References | Dimensions and drill holes [mm] |
Bohrhilfe Typ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|

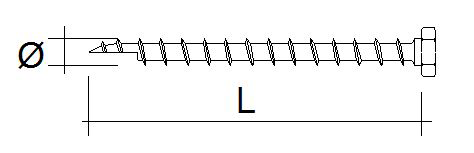

| ZYKLOPTM connector | SST screws | Min. plate thickness** | ||||||||
| A | B | C | D | Slope α ° | X* | ∅ x L | Threaded length | tgr | ||
| ZYK10 | 32 | 20 | 11.5 | 1.9 | 30 | 16 | 6x200 | 192 | 3 | BZYK6 |
| ZYK11 | 25 | 16 | 10 | 1.9 | 45 | 11 | 6x200 | 192 | 6 | BZYK6 |
| ZYK12 | 20 | 12 | 7.5 | 1.9 | 60 | 8 | 6x200 | 192 | 10 | BZYK6 |
| ZYK40 | 45 | 27 | 14 | 2.9 | 30 | 23 | 8x300 | 290 | 5 | BZYK8 |
| ZYK41 | 30 | 20 | 12 | 2.9 | 45 | 14 | 8x300 | 290 | 8 | BZYK8 |
| ZYK42 | 25 | 16 | 9.5 | 2.5 | 60 | 10 | 8x300 | 290 | 9 | BZYK8 |
| ZYK70 | 50 | 30 | 16.5 | 3.4 | 30 | 26 | 10x400 | 388 | 5 | BZYK10 |
| ZYK71 | 35 | 24 | 15 | 3.4 | 45 | 16 | 10x400 | 388 | 8 | BZYK10 |
| ZYK72 | 30 | 20 | 11 | 2.9 | 60 | 11 | 10x400 | 388 | 12 | BZYK10 |
| ZYKT39 | 25 | 16 | 7.4 | 14 | 30 | 14 | 6x200 | 192 | 3 | BZYK6 |
| ZYKT69 | 30 | 20 | 7.5 | 14 | 30 | 17 | 8x300 | 290 | 4 | BZYK8 |
| ZYKT99 | 35 | 20 | 7.5 | 19 | 30 | 16 | 10x400 | 388 | 5 | BZYK10 |
*length of pass
**Boundaries of thickness
: max thickness of steel, up to this thickness, no adittional cut out in the line of screw is neccessary
Capacities: screws
| References | r ax,k,α [N/mm] | R t,u,k [kN] | |
|---|---|---|---|
| Timber side member | End grain | ||
| ZYK10 | 62.1 | 81 | 12.5 |
| ZYK11 | 81 | 81 | 12.5 |
| ZYK12 | 81 | 62.1 | 12.5 |
| ZYK40 | 66.9 | 87.2 | 23.5 |
| ZYK41 | 87.2 | 87.2 | 23.5 |
| ZYK42 | 87.2 | 66.9 | 23.5 |
| ZYK70 | 88.2 | 115 | 33 |
| ZYK71 | 115 | 115 | 33 |
| ZYK72 | 115 | 88.2 | 33 |
| ZYKT39 | 62.1 | 81 | 12.5 |
| ZYKT69 | 66.9 | 87.2 | 23.5 |
| ZYKT99 | 88.2 | 115 | 33 |
Capacities: ZYKLOP
| References | ZYKLOPTM to timber side member | ZYKLOPTM to end grain | ||||||
|---|---|---|---|---|---|---|---|---|
| Max. capacities and corresponding steel thickness | Min. thickness with corresponding capacities | Max. capacities and corresponding steel thickness | Min. thickness with corresponding capacities | |||||
| Max. Rk,ZYK [kN] | Min. tst [mm] | Min. tst [mm] | Rk,ZYK [kN] | Max. Rk,ZYK [kN] | Min. tst [mm] | Min. tst [mm] | Rk,ZYK [kN] | |
| ZYK10 | 10.8 | 2 | 2 | 10.8 | 10.8 | 2 | 2 | 10.8 |
| ZYK11 | 8.8 | 4 | 2 | 4.6 | 8.8 | 2 | 2 | 8.8 |
| ZYK12 | 6.3 | 4.5 | 2 | 2.6 | 6.3 | 2 | 2 | 6.3 |
| ZYK40 | 20.4 | 3 | 3 | 20.4 | 20.4 | 3 | 3 | 20.4 |
| ZYK41 | 16.6 | 5.5 | 3 | 7.8 | 16.6 | 3 | 3 | 16.6 |
| ZYK42 | 11.8 | 6.5 | 2.5 | 3.8 | 11.8 | 3.5 | 2.5 | 9 |
| ZYK70 | 28.6 | 3.5 | 3.5 | 28.6 | 28.6 | 3.5 | 3.5 | 28.6 |
| ZYK71 | 23.3 | 7 | 3.5 | 10.5 | 23.3 | 3.5 | 3.5 | 23.3 |
| ZYK72 | 16.5 | 7.5 | 3 | 5.3 | 16.5 | 4 | 3 | 12.7 |
| ZYKT39 | 10.8 | 2.5 | 1.5 | 7.7 | 10.8 | 1.5 | 1.5 | 10.8 |
| ZYKT69 | 20.4 | 4 | 2 | 10.8 | 20.4 | 2 | 2 | 20.4 |
| ZYKT99 | 28.6 | 5 | 2 | 13.4 | 28.6 | 2 | 2 | 28.6 |
*Max values
is valid also for larger thickness of steel. Interim values can be found by interplolatin.

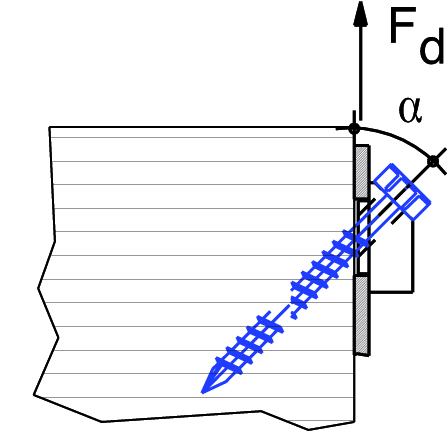

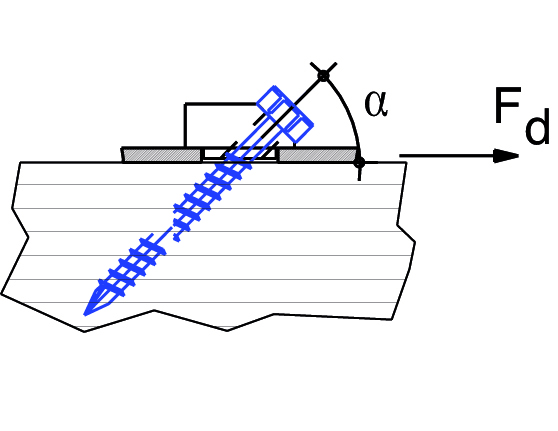

Dimensioning:
The capacity for a connection with the Zyklop-connector shall be determine as following:
with
It´s to check:
