CNAPC34

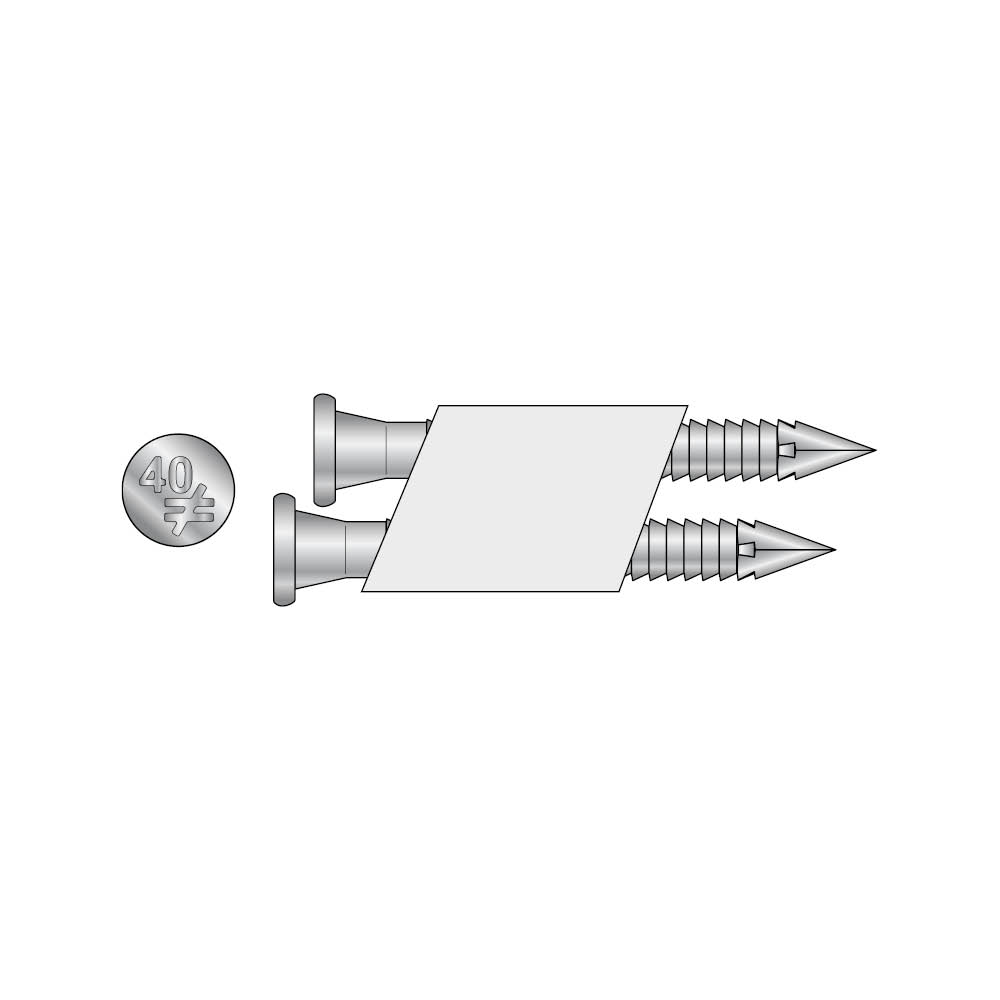

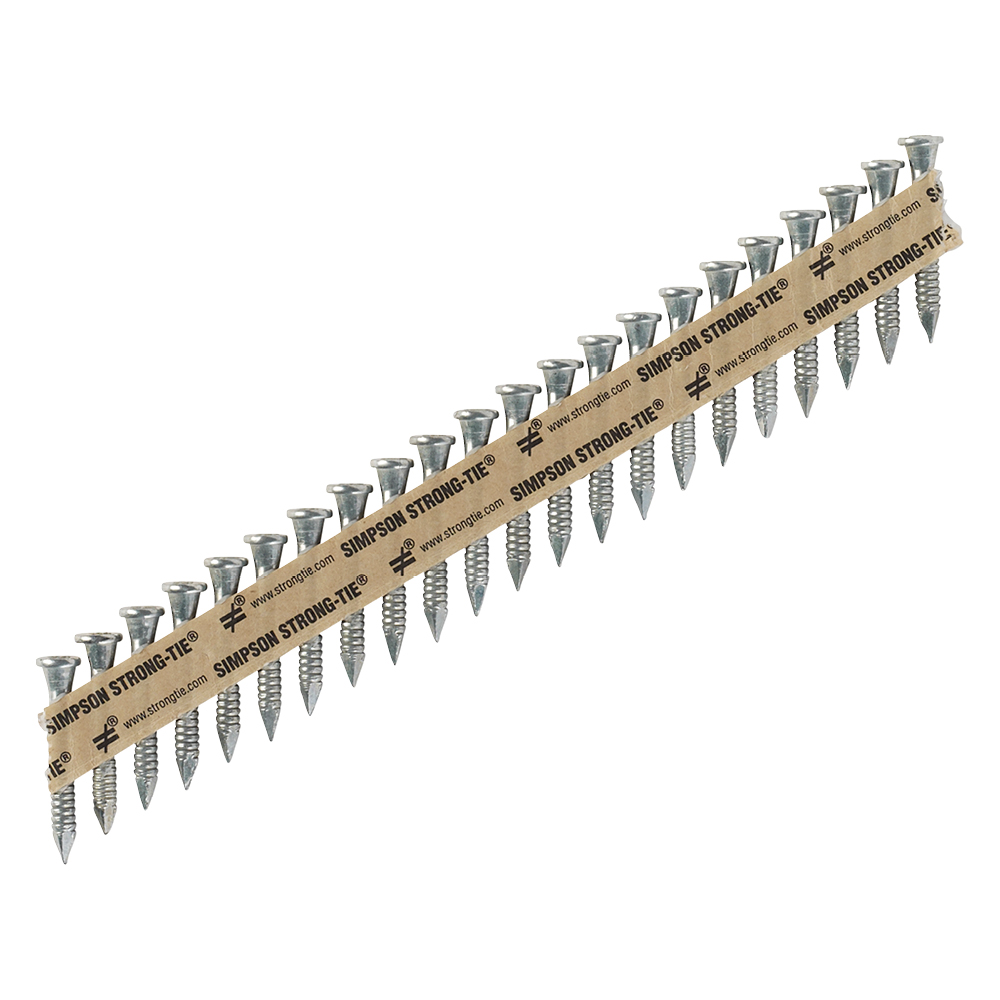

34° Connector Nail, Paper Strip

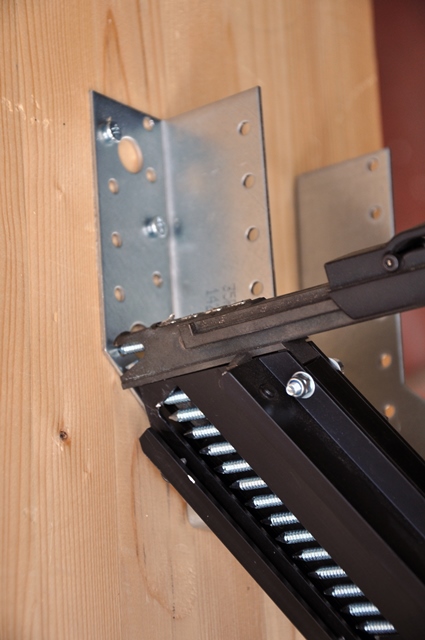

The CNA nails are recommended for structural assemblies and to use with Simpson Strong-Tie connectors. The paper collated nail reduce the time for installation.
CE Marking
ETA
Service class 2
Indoor
Electrogalvanized steel 12µm
Product Details
Images
Features
Application
Technical Data
Dimensions
Product dimensions and capacities

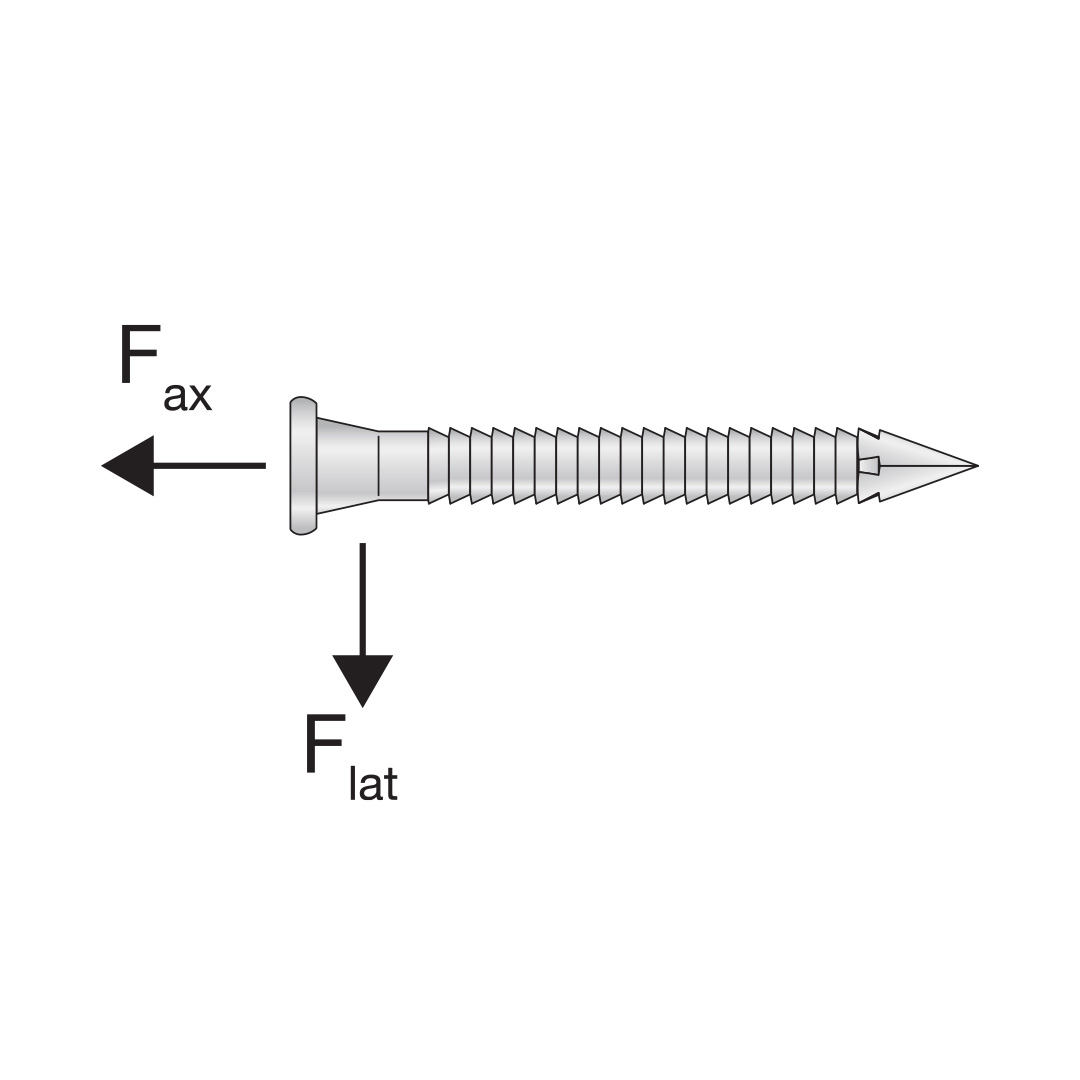

| References | Tun / DB nr. | NOB nr. | Fastener dimensions [mm] | Qty per strap | Qty per box | Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN] | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | ht | Rlat.k | Rax.k | |||||
| CNA4.0X35PC34 | 1897085 | 51561493 | 4 | 35 | 7 | 1.5 | 22 | 1500 | 1.66 | 0.61 |
| CNA4.0X40PC34 | 1897086 | 51561504 | 40 | 7 | 1.5 | 22 | 1500 | 1.83 | 0.74 | |
| CNA4.0X50PC34 | 1897087 | 51561512 | 50 | 7 | 1.5 | 22 | 1000 | 2.22 | 0.98 | |
| CNA4.0X60PC34 | 1897088 | 51561523 | 60 | 7 | 1.5 | 22 | 1000 | 2.36 | 1.23 | |
Capacities are for 2mm thick steel plates and Grade C24 timber. Please refer to ETA-04/0013 for capacities of other thickness and timber grades
