CMR column shoe

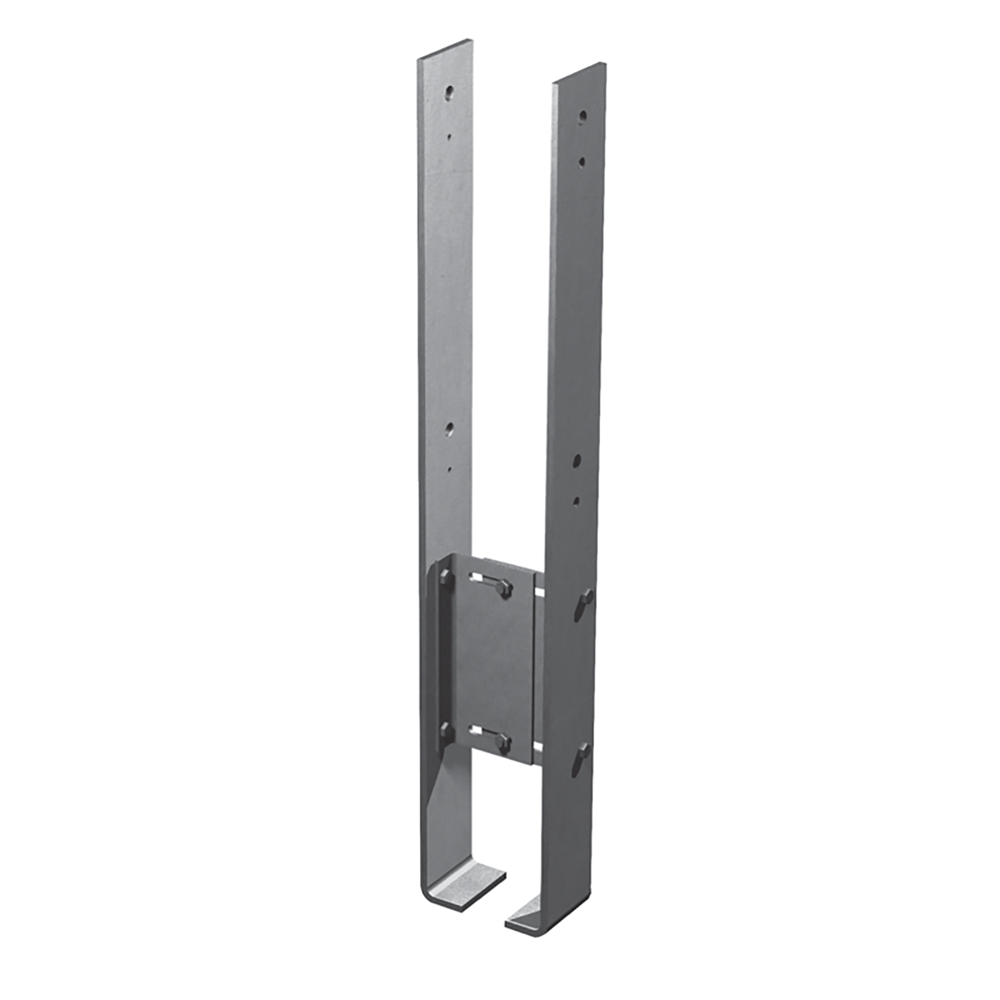

CMR column shoe consists of two outer steel parts, can be used from 120 to 160 millimeters may be adapted to the width of the corresponding column. They are suitable for outdoor use.
CE Marking
ETA
Service class 3
Hot-dip galvanised steel
Outdoor
Technical Data
Dimensions
Capacities
| References | Number of Fasteners | Characteristic capacities - Timber C24 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| On post | R1,k = R2,k [kN] | R3,k [kN] | R4,k [kN] | RM1,k [kNm] | RM2,k [kNm] | |||||
| Qty | Type | Width of the post [mm] | Width of the post [mm] | Width of the post [mm] | Width of the post [mm] | Width of the post [mm] | ||||
| ≥ 115 | ≥115 | ≥ 115 | ≥ 115 | 115 | 120 | 140 | 160 | |||
| CMR | 2 | M16* | 117.2 | min(99; 21.3/kmod) | min(33; 30.9/kmod) | min(19.8; 13.9/kmod) | 6.7 | 7 | 8.2 | 9.4 |
