Connectors
Joist Hangers

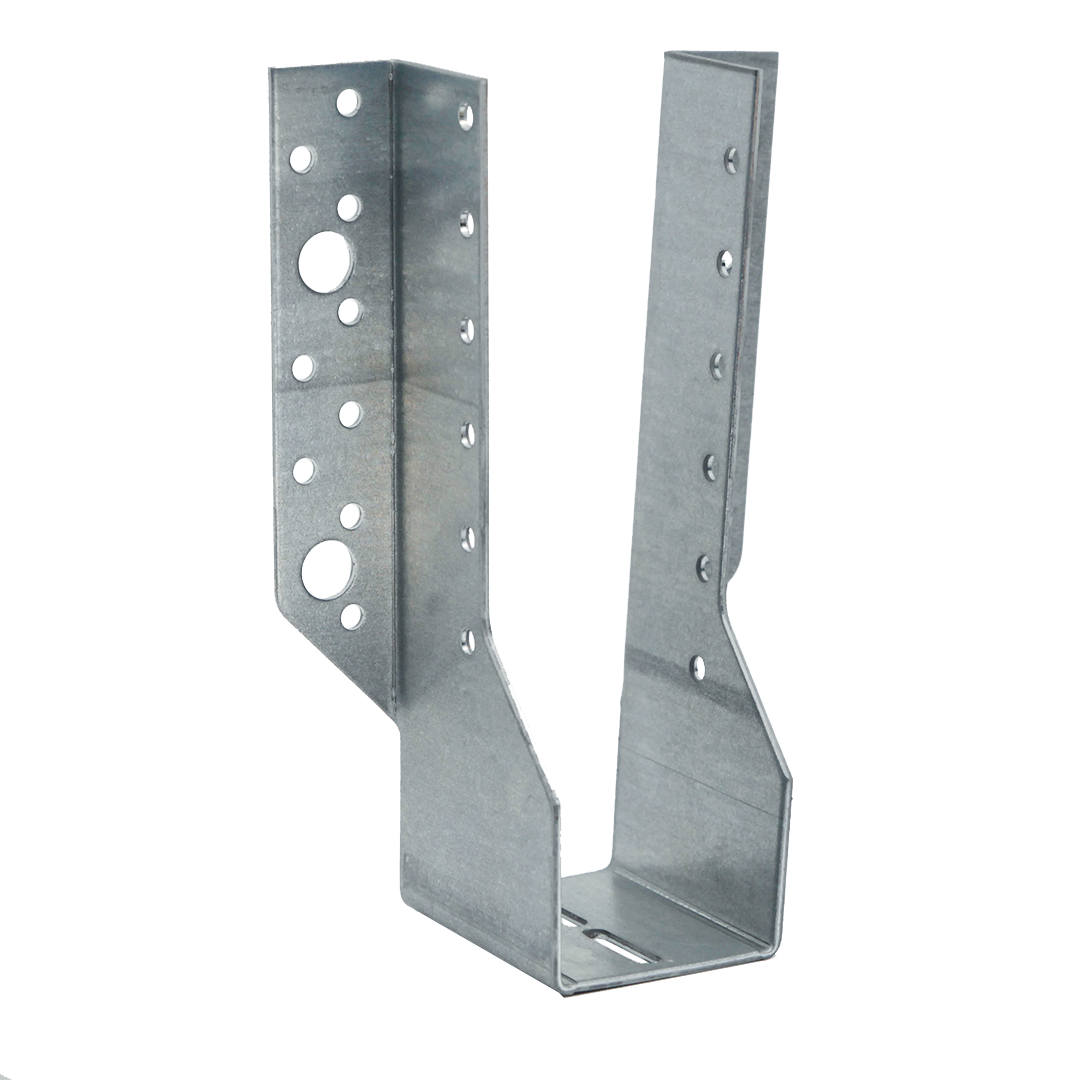

DJH-Z

Divisible Joist hanger ZPRO

DJH is a joist hanger used for timber to timber connections in outdoor structures. This joist hanger is divisible before installation to be adapted to supported joist width between 45 and 160 mm.

Technical Data Sheet
CE Marking
ETA
Service class 3
Outdoor
ZPRO
DJH-Z Sabot sécable pour l’extérieur ZPRO

Product Details

Images

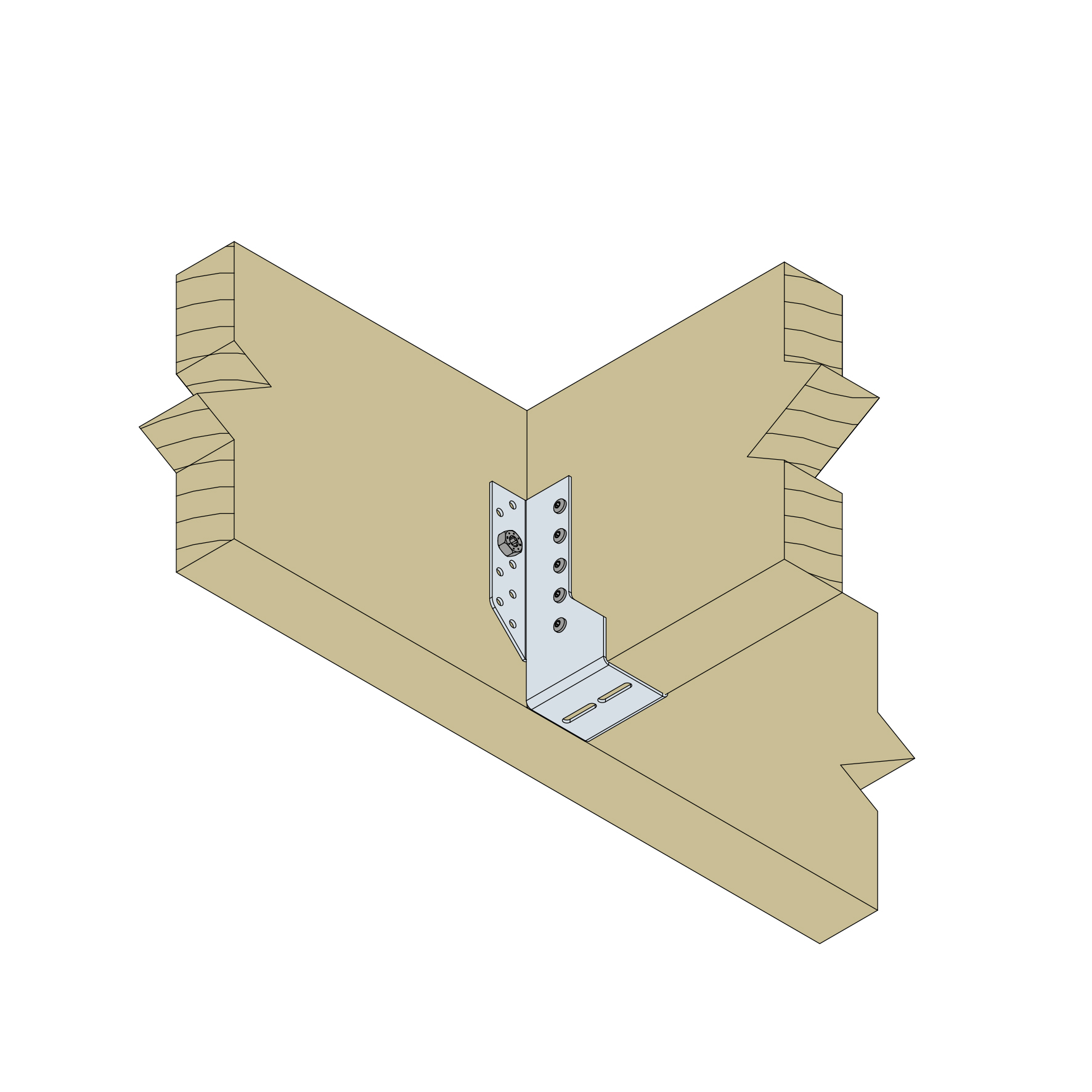

C_DJH_InstIll_Ill_Instld_non-divised_FR_FR_C0_STEP02

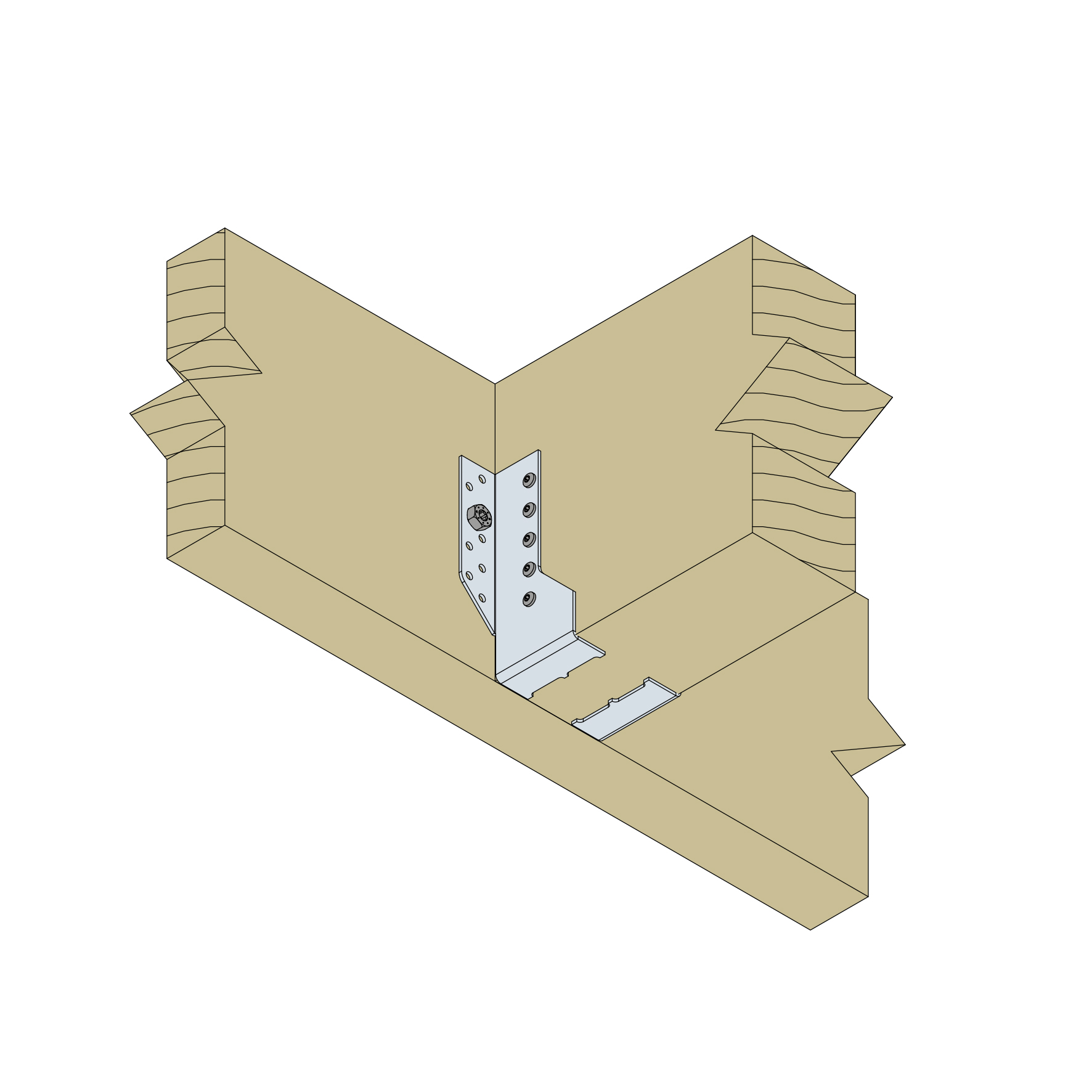

C_DJH_InstIll_Ill_Instld_divised_FR_FR_C0_STEP01

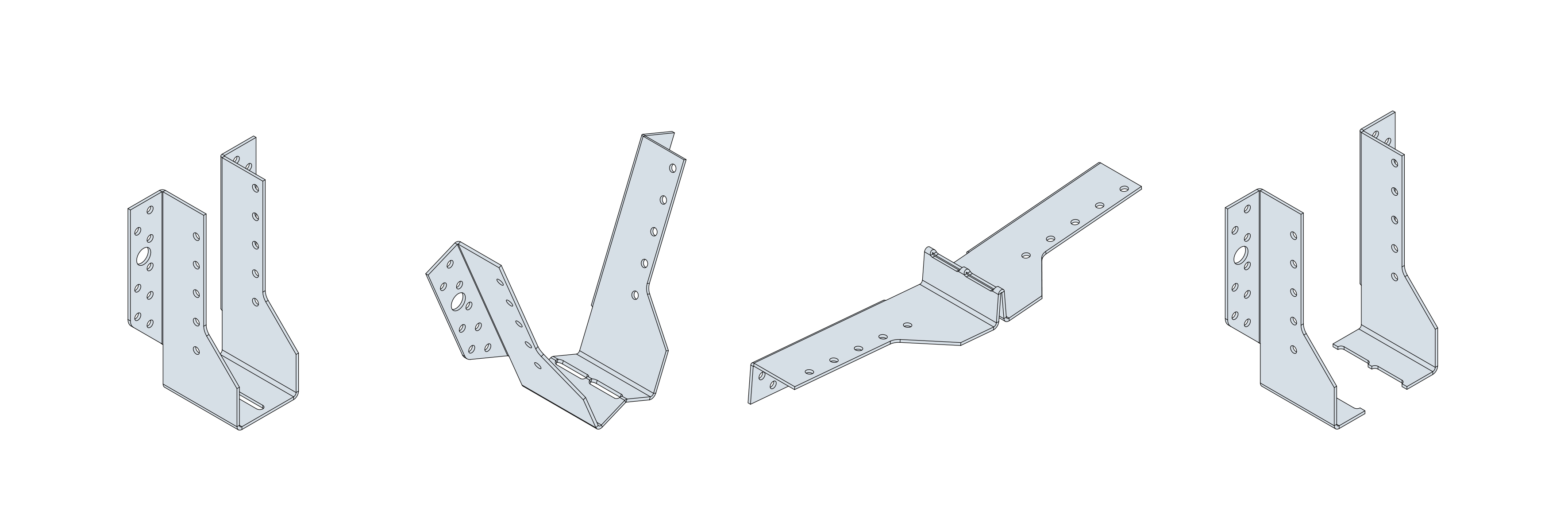

C_DJH_InstIll_Ill_Instld_divising-process_FR_FR_C0

Features

Material

Steel quality:

S250GD + ZPRO

Corrosion protection:

ZPRO coating - corresponding to a zinc layer of approx. 55 μm

Benefits

  • Divisible joist hanger to be adapted to supported joist widthes between 45 and 160 mm,
  • Suitable for outdoor use....

Application

Suitable On

Supporting member :

  • Solid wood, engineered wood...

Supported member :

  • Solid wood, engineered wood...

When to Use

DJH-Z joist hangers are suitable for outdoor use.

  • Terraces,
  • Outdoor Facilities...

Technical Data

Dimensions

C_DJH_ProdIll_Ill_Prod_FR_FR_CY

Product Dimensions

References Dimensions [mm] Joist Dimensions [mm] Holes
A B C D Thickness Width Height Header Joist
Min. Max. Min. Max. Ø5 Ø11,5 Ø5
DJH92/46Z4692602824516095138826
DJH137/46Z46137602824516014720516210
DJH167/46Z46167602824516017725018412

Product characteristic capacities - Timber to Timber - Full nailing

References Characteristic values - Timber to timber - Full nailing
Fasteners Product characteristic capacities - Timber C24 [kN]

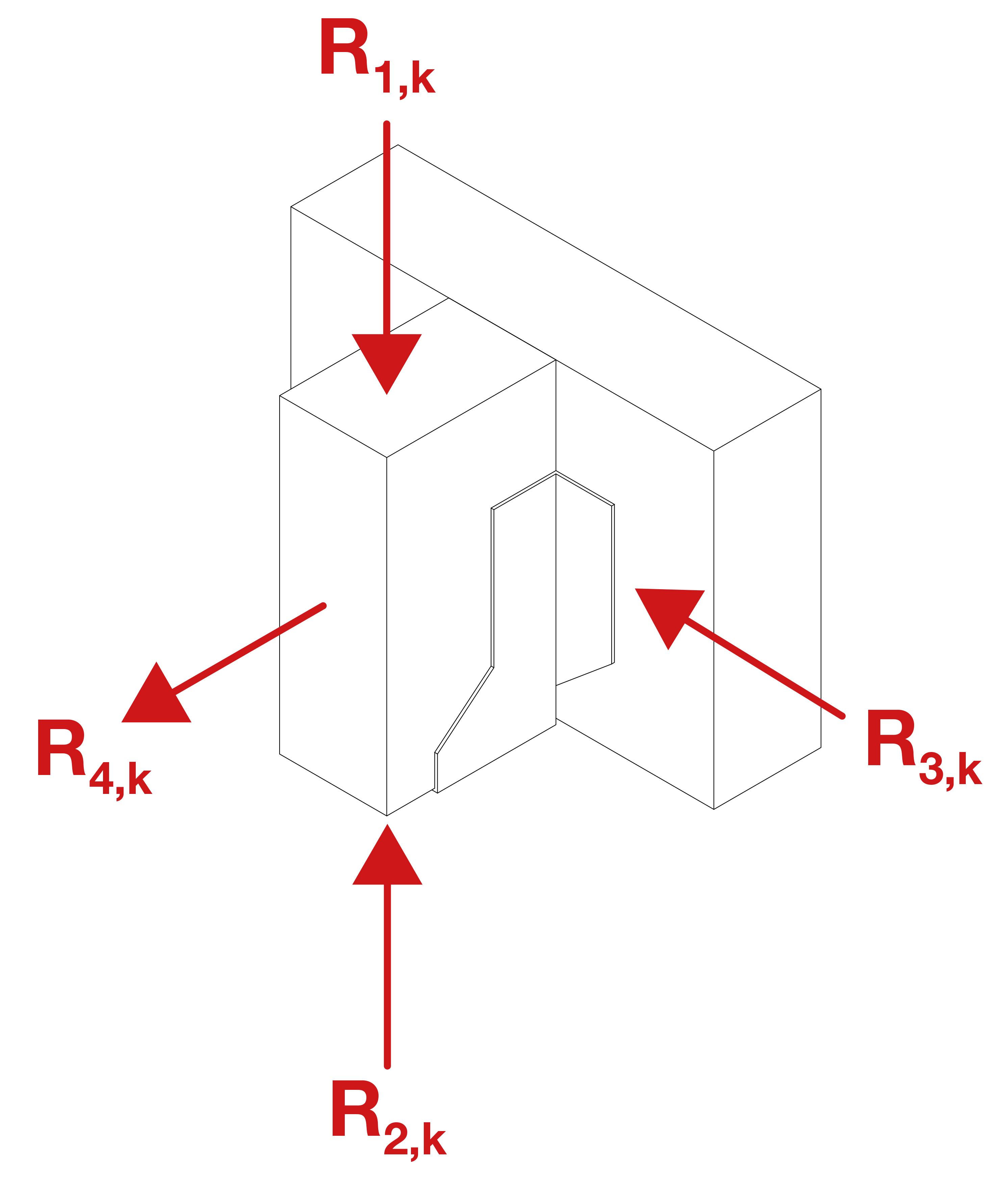

Header Joist R1,k R2,k R3,k R4,k
Qty Qty CSA5.0x35Z CSA5.0x40Z CSA5.0x35Z CSA5.0x40Z CSA5.0x35Z CSA5.0x40Z CSA5.0x35Z CSA5.0x40Z
DJH92/46Z8611.913.510.311.71.8210.111.5
DJH137/46Z161019.922.518.721.24.4516.919.1
DJH167/46Z181223.92722.325.455.620.323

Product characteristic capacities - Timber to timber - Partial nailing

References Characteristic values - Timber to timber - Partial nailing
Fasteners Product characteristic capacities - Timber C24 [kN]
Header Joist R1,k R2,k R3,k R4,k
Qty Qty CSA5.0x35Z CSA5.0x40Z CSA5.0x35Z CSA5.0x40Z CSA5.0x35Z CSA5.0x40Z CSA5.0x35Z CSA5.0x40Z
DJH92/46Z6366.85.56.31.51.75.15.7
DJH137/46Z10611.913.511.212.72.93.310.111.5
DJH167/46Z12611.913.511.613.13.43.910.111.5

Product characteristic capacities - Timber to timber - with connector screw SSH

References Characteristic capacities - Timber to timber - with connector screw SSH
Fasteners Product characteristic capacities - Timber C24 [kN]
Header Joist R1,k R2,k R3,k R4,k
Qty Qty Type SSH10.0x40 SSH10.0x50 SSH10.0x40 SSH10.0x50 SSH10.0x40 SSH10.0x50 SSH10.0x40 SSH10.0x50
DJH92/46Z26CSA5.0x35Z5.87.95.87.72.53.455
DJH137/46Z210CSA5.0x35Z5.885.881.21.655
DJH167/46Z412CSA5.0x35Z10.214.110.214.122.71010

Installation

Installation

Fixing

  • CSA5.0x35Z,
  • CSA5.0x40Z,
  • SSH10.0x40,
  • SSH10.0x50...

Installation

Divide the joist hanger into two, if neededn, before installation.

Certification

Declaration of Performance (DoP)

uk-dop-e06-0270-issue-6.pdf (97.22 KB)
uk-dop-e06-0270-issue-5.pdf (42.13 KB)
uk-dop-e06-0270-issue-4.pdf (42.18 KB)
75780fe8534b90ce48aebde45823ff74574278a8-pdf.pdf (34.34 KB)
995c4380357c32ba7cedd75630244e75762cfbf9.pdf (34.88 KB)
25094a836344f558ba0765b8df770af81e7c45a7.pdf (31.95 KB)

European Technical Assessment (ETA)

eta-060270-sst-rev-9-2024.pdf (14.09 MB)
