SSH

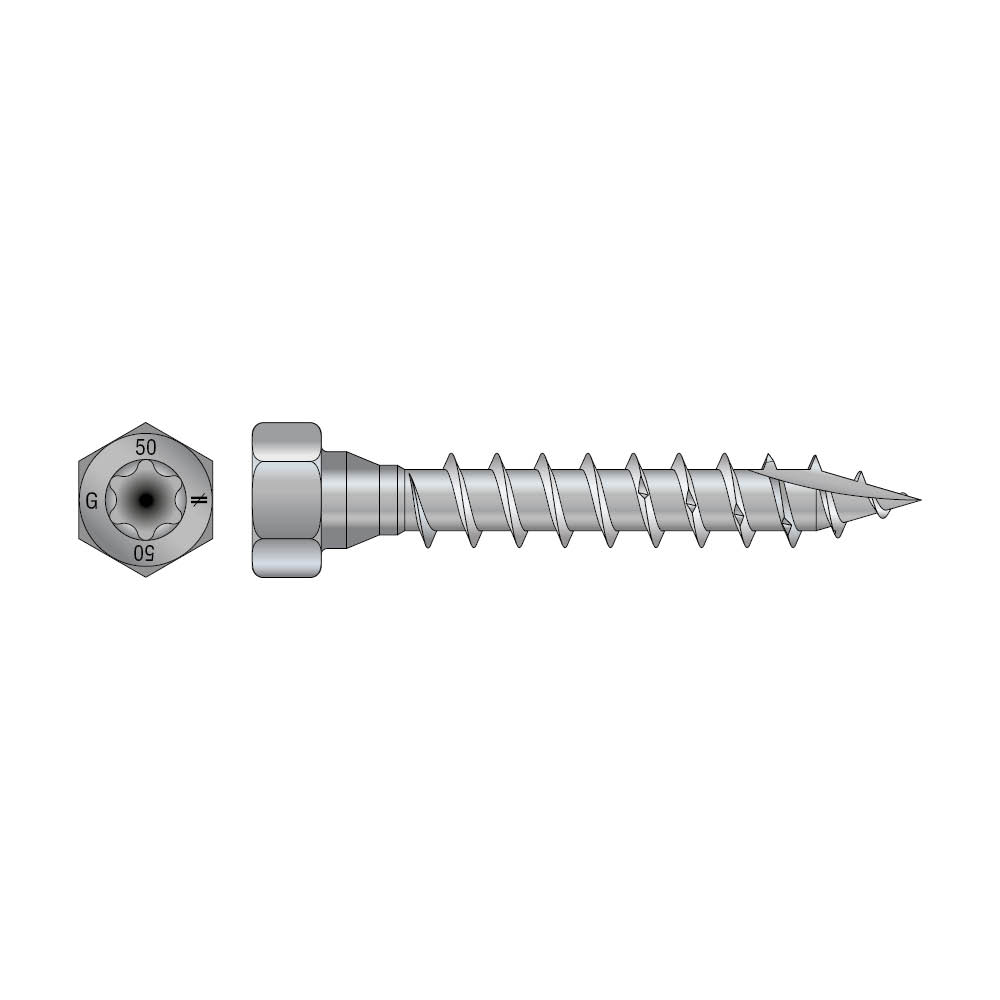

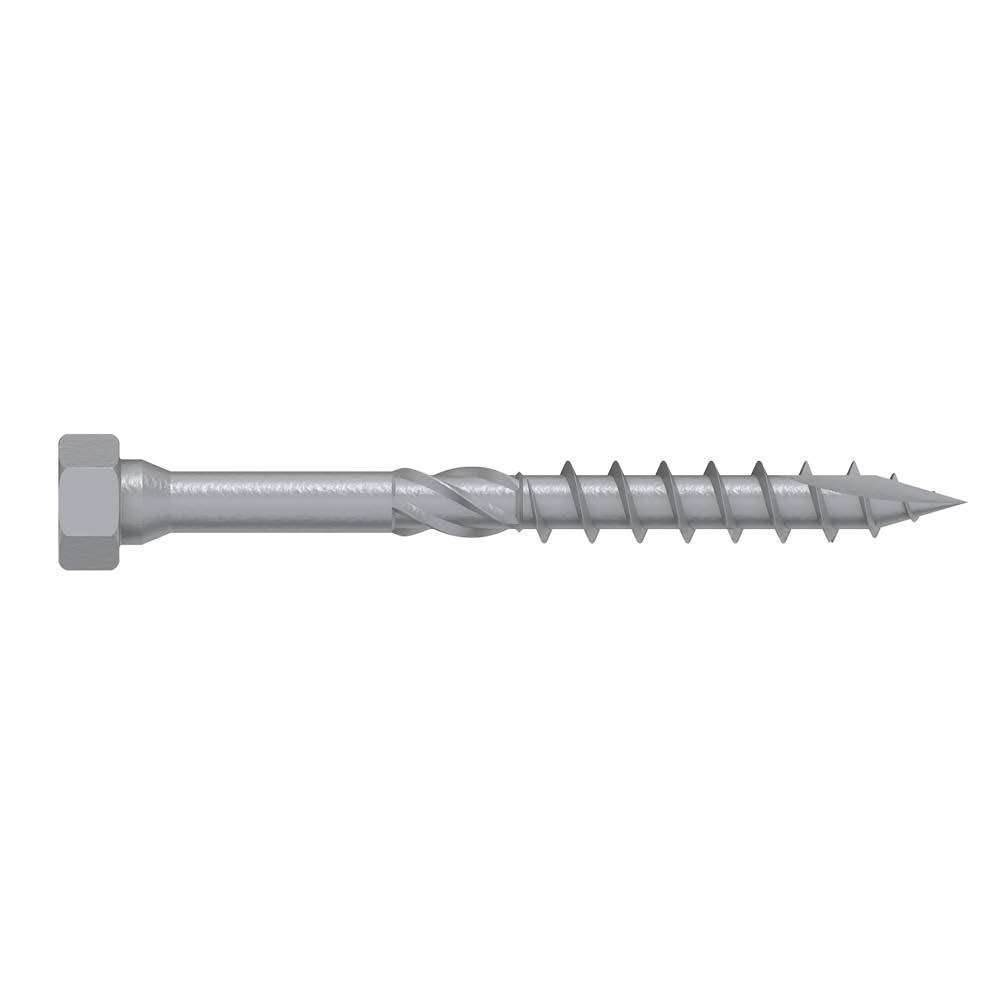

Hexagon Head Connector Screw Impreg®+

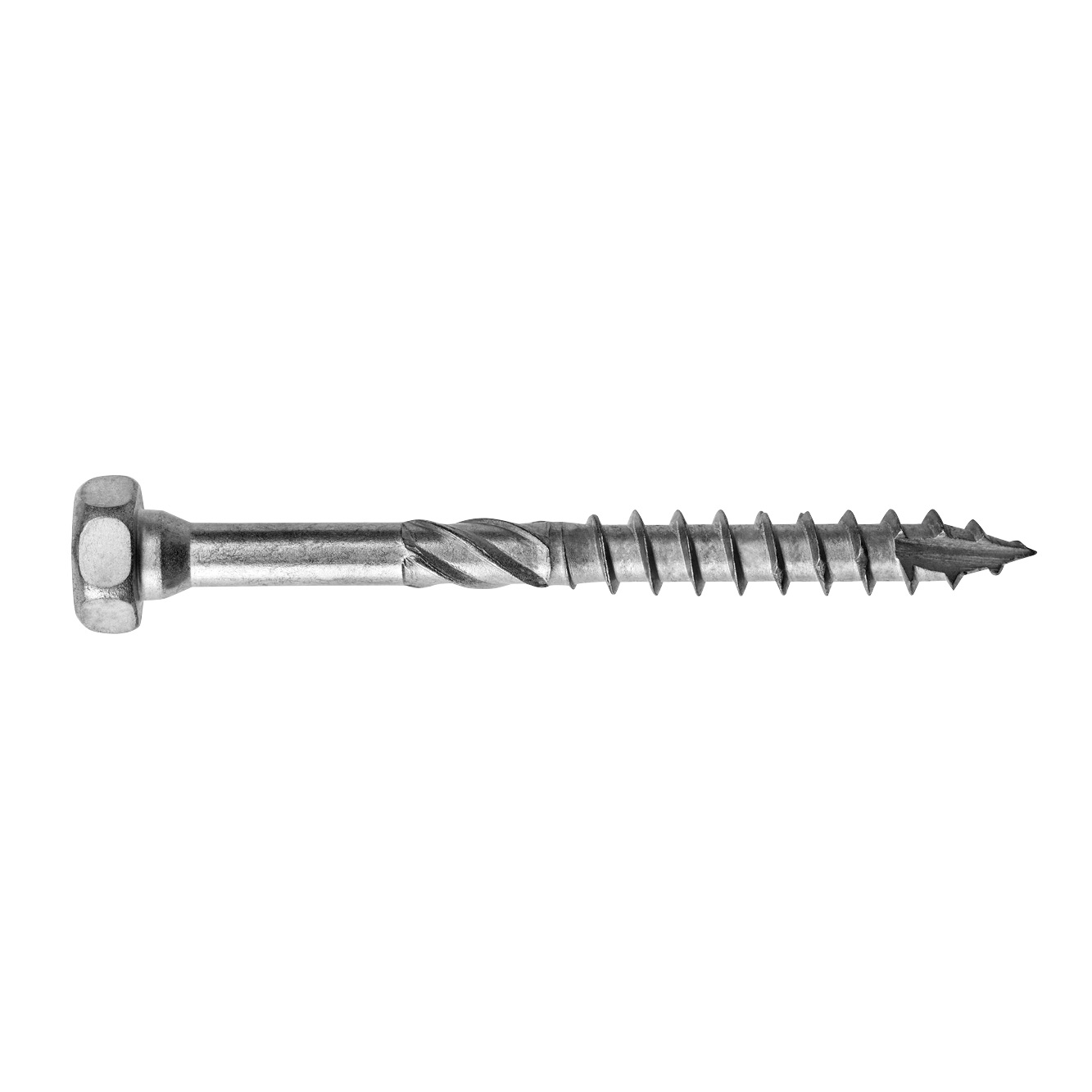

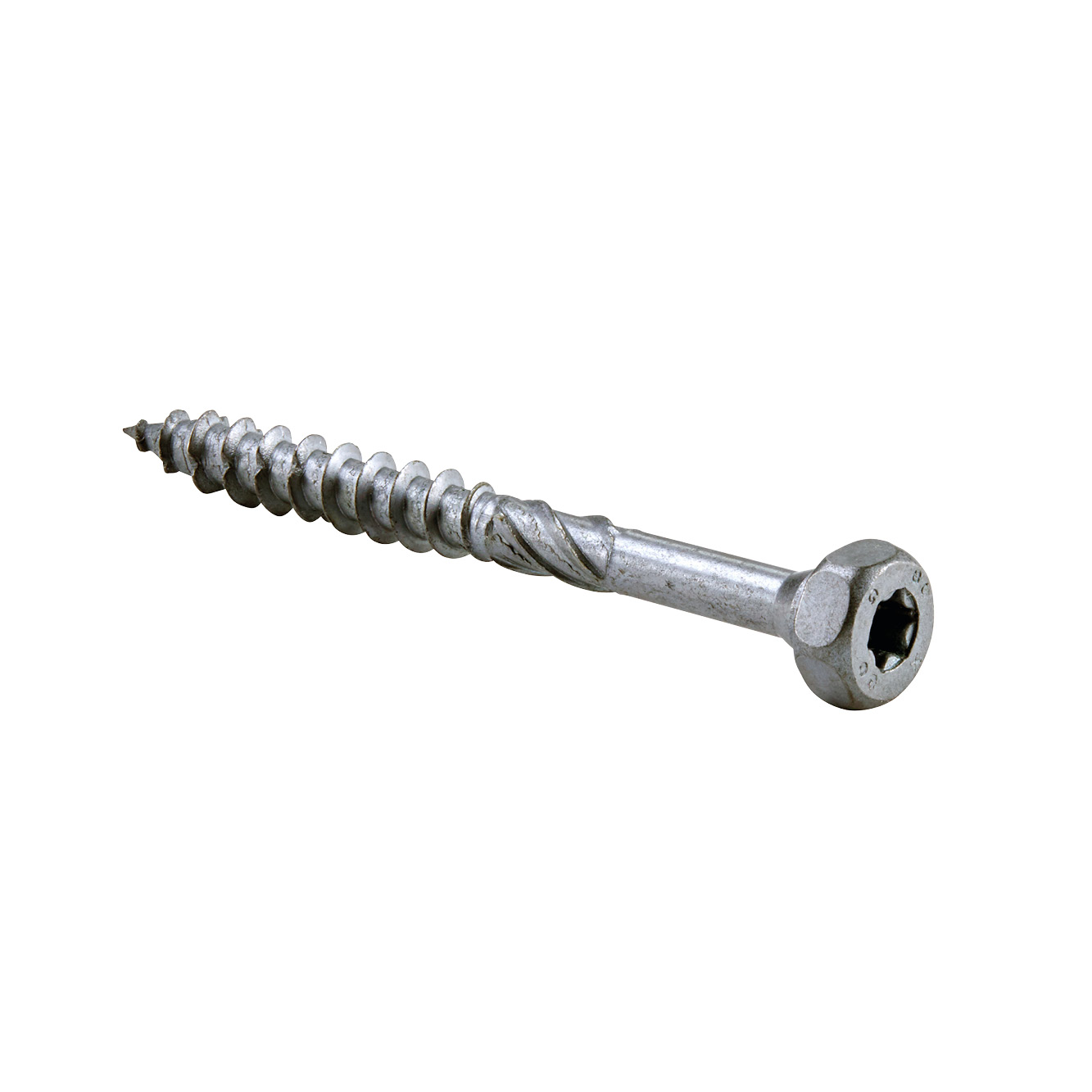

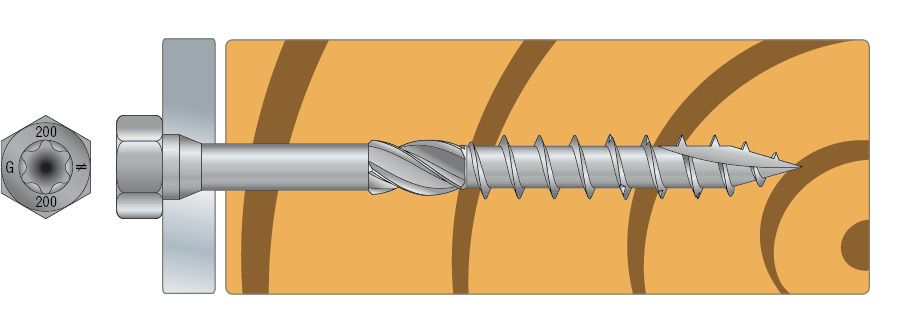

SSH is used together with connectors where high load capability is required. The conical shape under the head ensures full contact with the connector, creating a firm assembly. The superior Impreg^®+ coating makes the screw suitable for exterior use. The type 17 cut point prevents timber from splitting, and the milling thread and serrated thread reduce the insertion torque. SSH has both 6 lobe drive and a hexagonal head, enabling installation both with torx bits or hex wrench.

Find it in the Solid Wood Application >

Technical Data Sheet

CE Marking

ETA

Service class 2

Impreg® +

Outdoor

Solid Wood

Product Details

Images

Features

Material

Steel - Impreg®+ coating

Features

CE marked to EN14592
Hex head with integrated 6 lobe drive
6.Ø diameter screws feature a Hex-Washer head to ensure pull-through resistance
Conical shape under the head for secure fit in connector holes
No predrilling required
Milling thread reduces insertion torque
Type 17 point prevents splitting of timber

Application

Assemblies

Connectors to wood

Common Applications

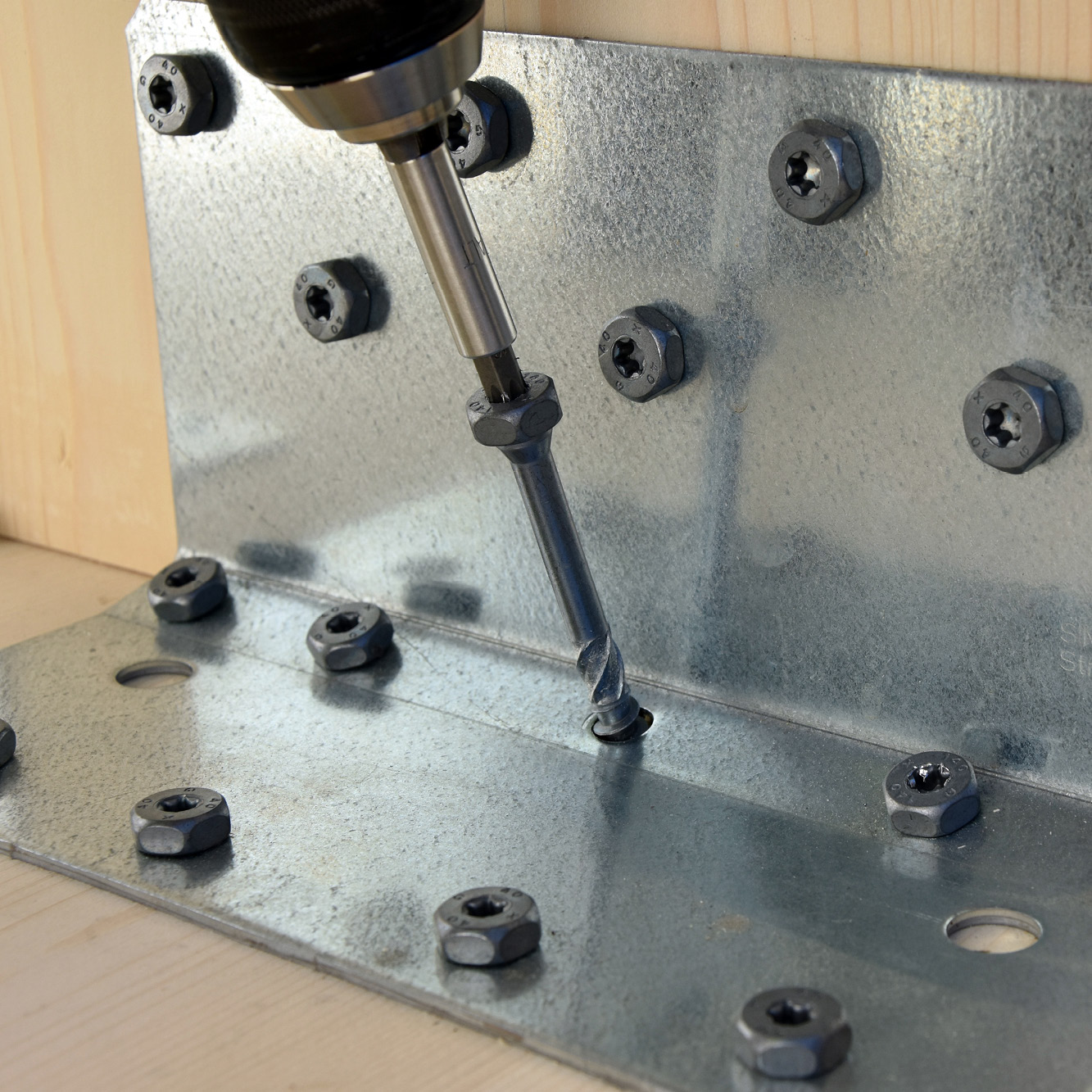

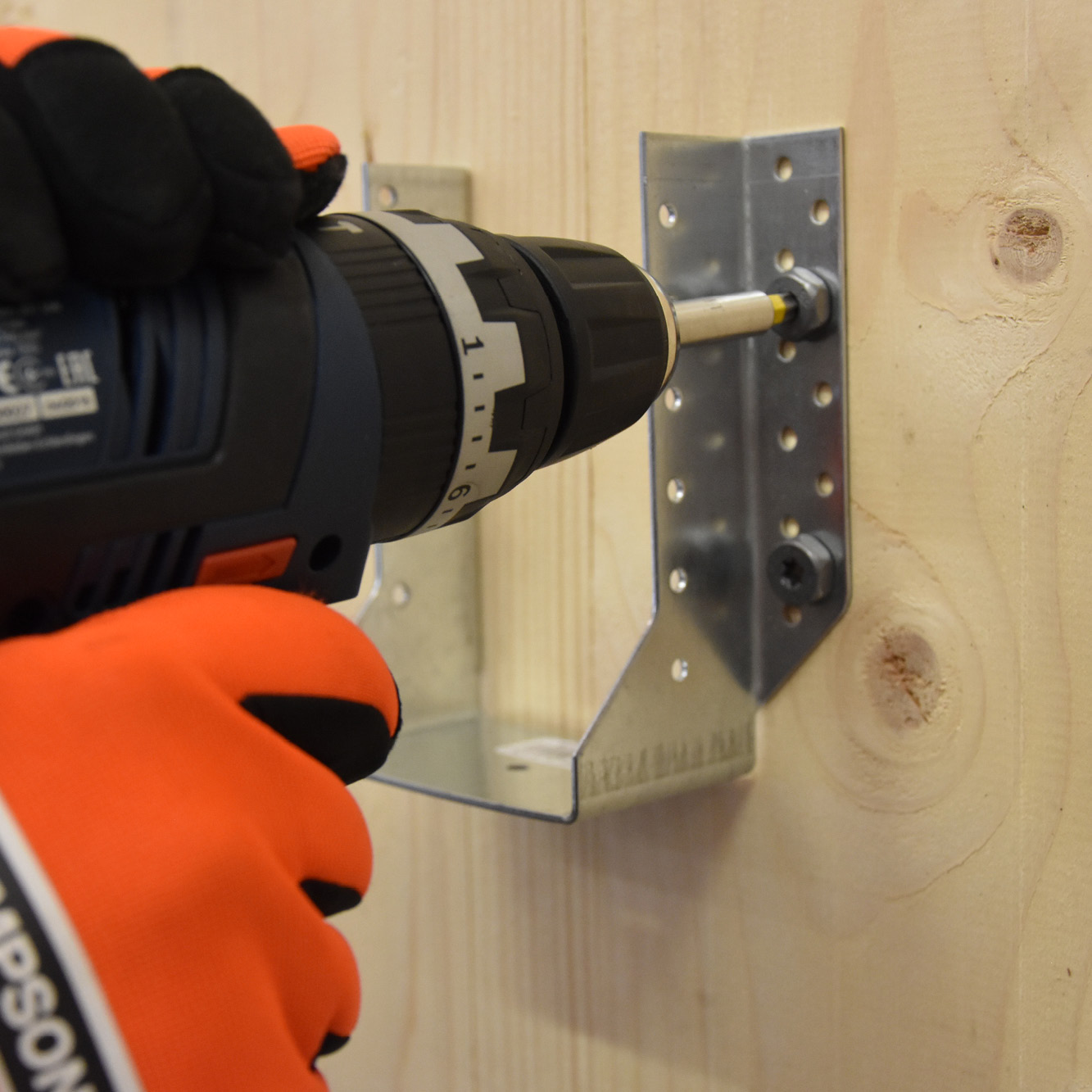

Fixing connectors to timber
Suitable for outdoor applications

Technical Data

Dimensions

Product dimensions


References	Item code	Gunnebo art. nr.	Fastener dimensions [mm]							bit	Qty per blister
References	Item code	Gunnebo art. nr.	d	l	d_h	h_t	d_uh	d₁	l_g	bit	Qty per blister
SSH6.0X40	75128	71644	6	40	10	4.75	6.1	3.7	24	T-30	-
SSH6.0X50	75129	71645		50	10	4.75	6.1	3.7	33	T-30	-
SSH6.0X60	75130	71646		60	10	4.75	6.1	3.7	42	T-30	-
SSH6.0X75	75131	71647		75	10	4.75	6.1	3.7	42	T-30	-
SSH6.0X90	75132	71648		90	10	4.75	6.1	3.7	42	T-30	-
SSH6.0X120	75133	71649		120	10	4.75	6.1	3.7	75	T-30	-
SSH8.0X40	75134	71688	8	40	13	5.75	8.2	5.1	32	T-40	-

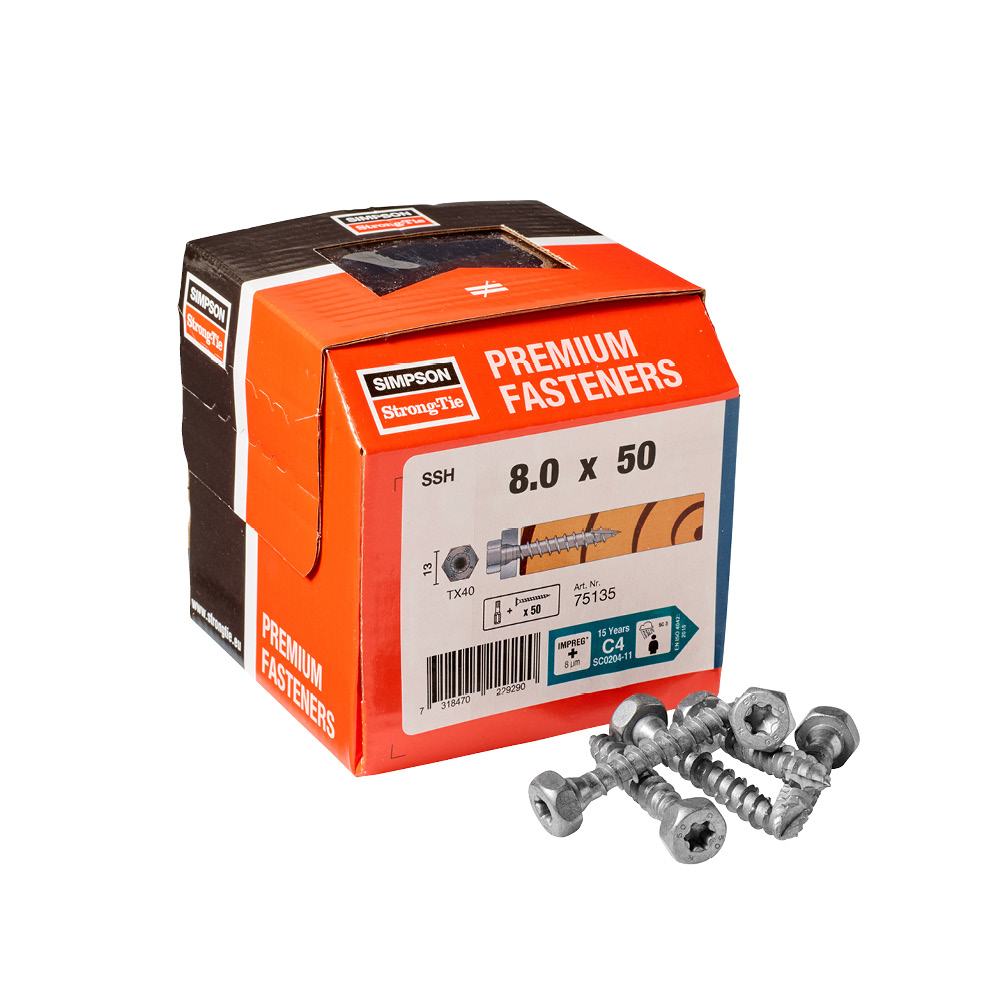

SSH8.0X50	75135	71689		50	13	5.75	8.2	5.1	42	T-40	-
SSH8.0X60	75136	71690		60	13	5.75	8.2	5.1	42	T-40	-

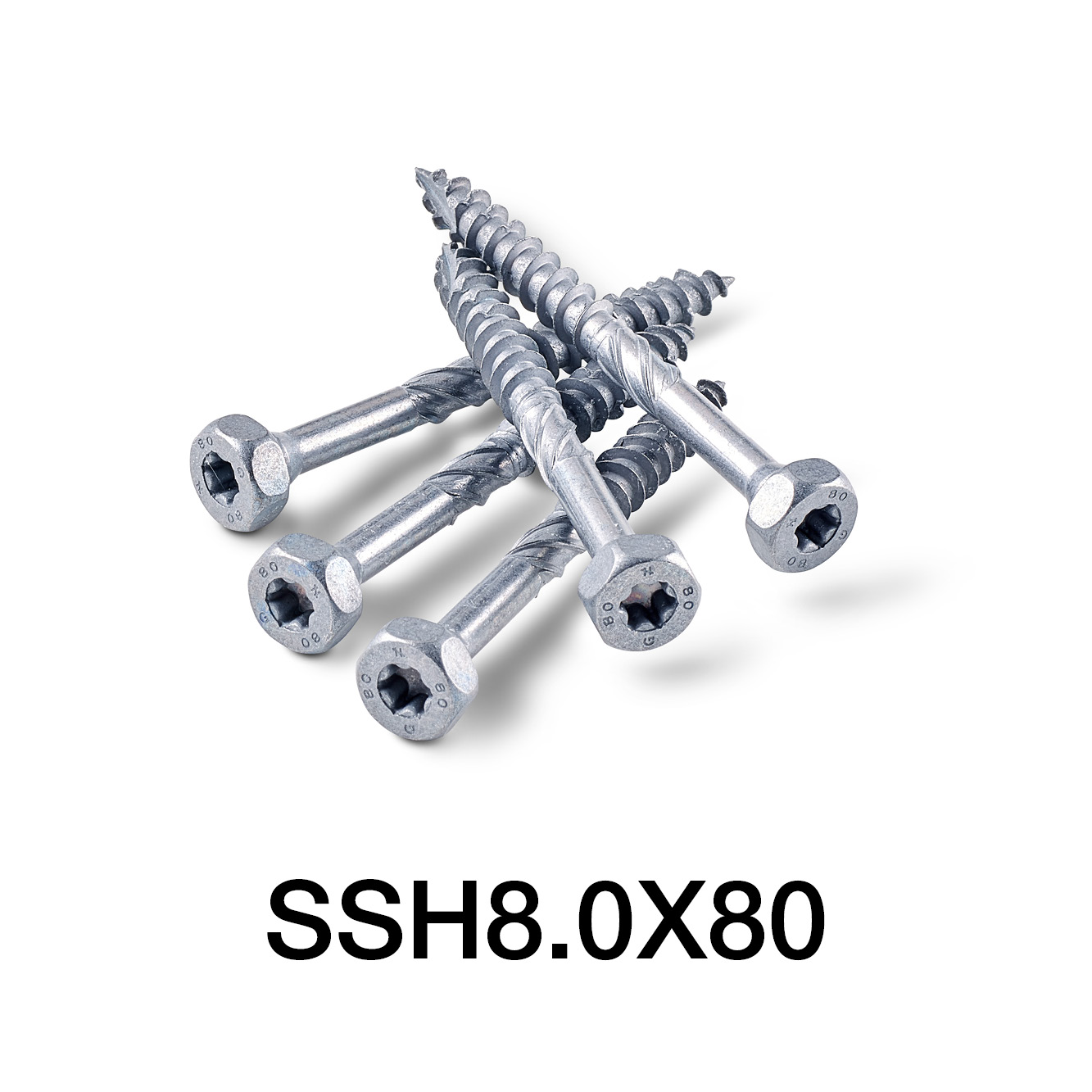

SSH8.0X80	75137	71691		80	13	5.75	8.2	5.1	42	T-40	-
SSH8.0X90	75138	71692		90	13	5.75	8.2	5.1	42	T-40	-
SSH8.0X100	75139	71609		100	13	5.75	8.2	5.1	55	T-40	-
SSH8.0X120	75140	76762		120	13	5.75	8.2	5.1	85	T-40	-
SSH8.0X140	75141	71701		140	13	5.75	8.2	5.1	85	T-40	-
SSH8.0X160	75142	73255		160	13	5.75	8.2	5.1	110	T-40	-
SSH8.0X180	75143	73256		180	13	5.75	8.2	5.1	110	T-40	-
SSH8.0X200	75144	73257		200	13	5.75	8.2	5.1	110	T-40	-
SSH8.0X240	75145	73258		240	13	5.75	8.2	5.1	110	T-40	-
SSH8.0X260	75146	73212		260	13	5.75	8.2	5.1	110	T-40	-
SSH8.0X280	75147	73213		280	13	5.75	8.2	5.1	110	T-40	-
SSH8.0X300	75148	73214		300	13	5.75	8.2	5.1	110	T-40	-
SSH10.0X40	75149	71707	10	40	15	6	10.2	6.2	32	T-40	-
SSH10.0X50	75150	71708		50	15	6	10.2	6.2	42	T-40	-

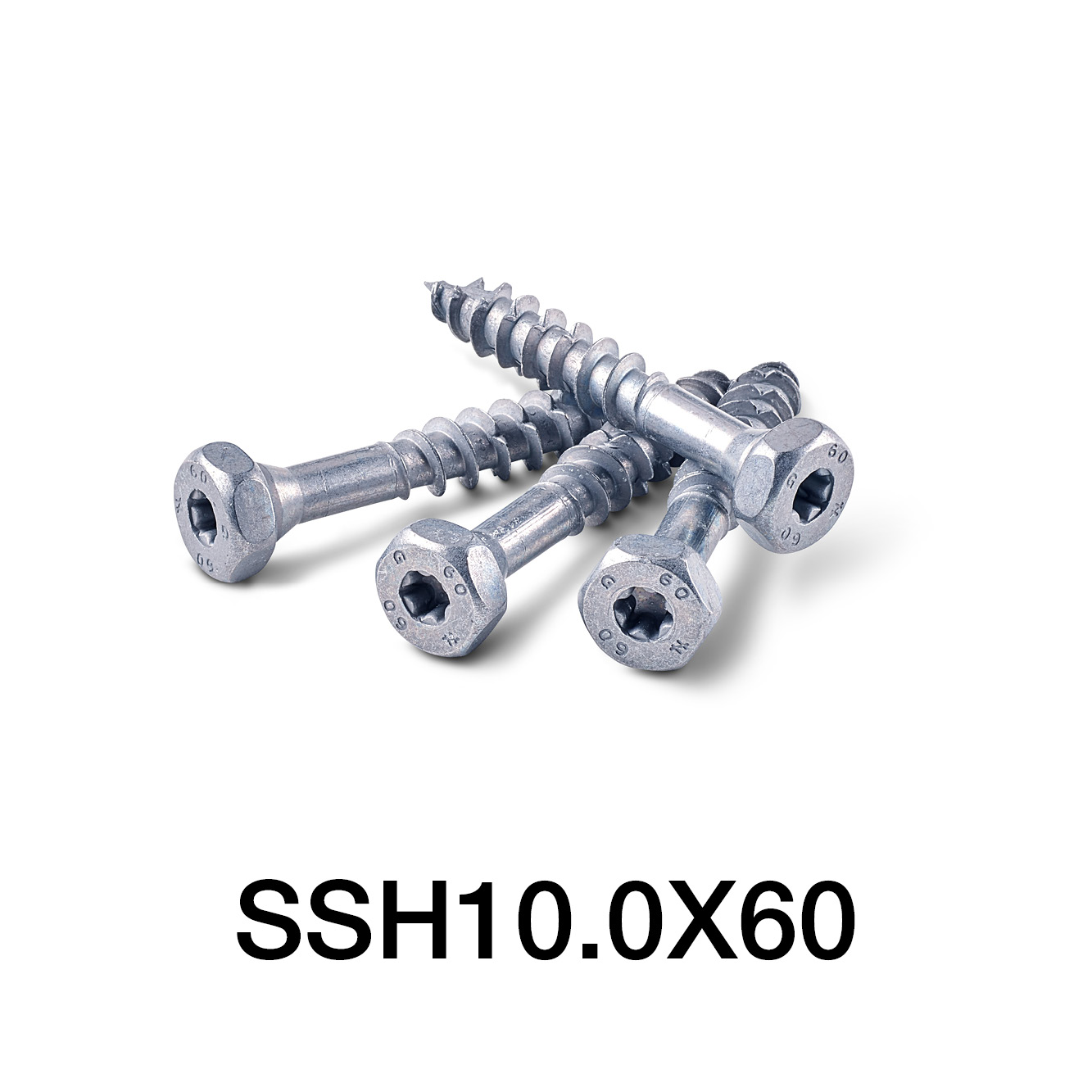

SSH10.0X60	75151	71709		60	15	6	10.2	6.2	42	T-40	-
SSH10.0X80	75152	71710		80	15	6	10.2	6.2	42	T-40	-
SSH10.0X90	75153	71711		90	15	6	10.2	6.2	42	T-40	-
SSH10.0X100	75154	71712		100	15	6	10.2	6.2	55	T-40	-
SSH10.0X120	75155	71713		120	15	6	10.2	6.2	85	T-40	-
SSH10.0X140	75156	71714		140	15	6	10.2	6.2	85	T-40	-
SSH10.0X160	75157	71715		160	15	6	10.2	6.2	110	T-40	-
SSH10.0X180	75158	71716		180	15	6	10.2	6.2	110	T-40	-
SSH10.0X200	75159	73215		200	15	6	10.2	6.2	110	T-40	-
SSH10.0X240	75160	73216		240	15	6	10.2	6.2	125	T-40	-
SSH10.0X280	75161	73217		280	15	6	10.2	6.2	125	T-40	-
SSH12.0X60	75162	71721	12	60	17	6.25	12.2	6.7	48	T-40	-
SSH12.0X80	75163	71722		80	17	6.25	12.2	6.7	48	T-40	-
SSH12.0X90	75164	71723		90	17	6.25	12.2	6.7	48	T-40	-
SSH12.0X100	75165	71724		100	17	6.25	12.2	6.7	55	T-40	-
SSH12.0X120	75166	76761		120	17	6.25	12.2	6.7	85	T-40	-
SSH12.0X140	75167	71726		140	17	6.25	12.2	6.7	85	T-40	-
SSH12.0X160	75168	71727		160	17	6.25	12.2	6.7	110	T-40	-
SSH12.0X180	75169	71728		180	17	6.25	12.2	6.7	110	T-40	-
SSH12.0X200	75170	71729		200	17	6.25	12.2	6.7	110	T-40	-

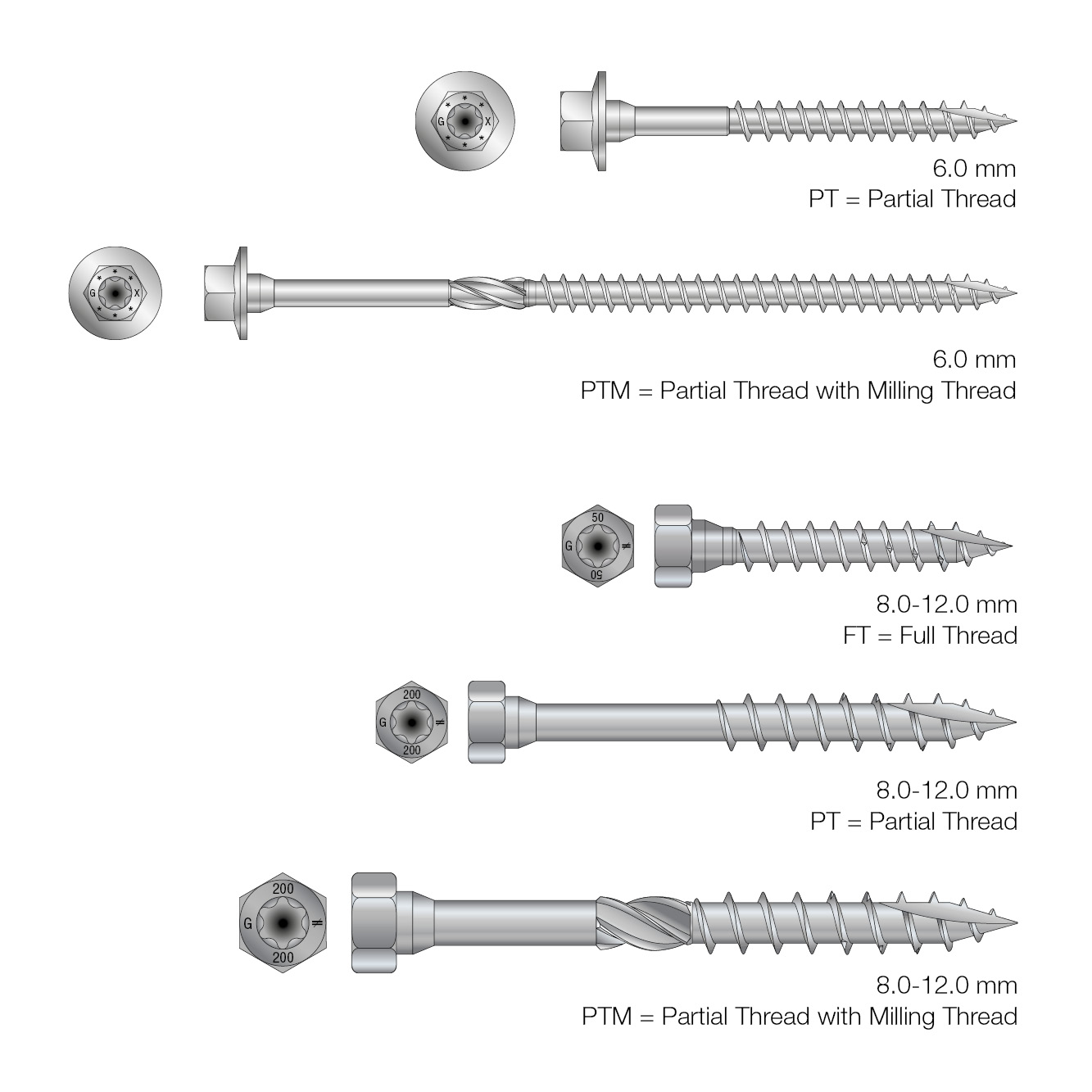

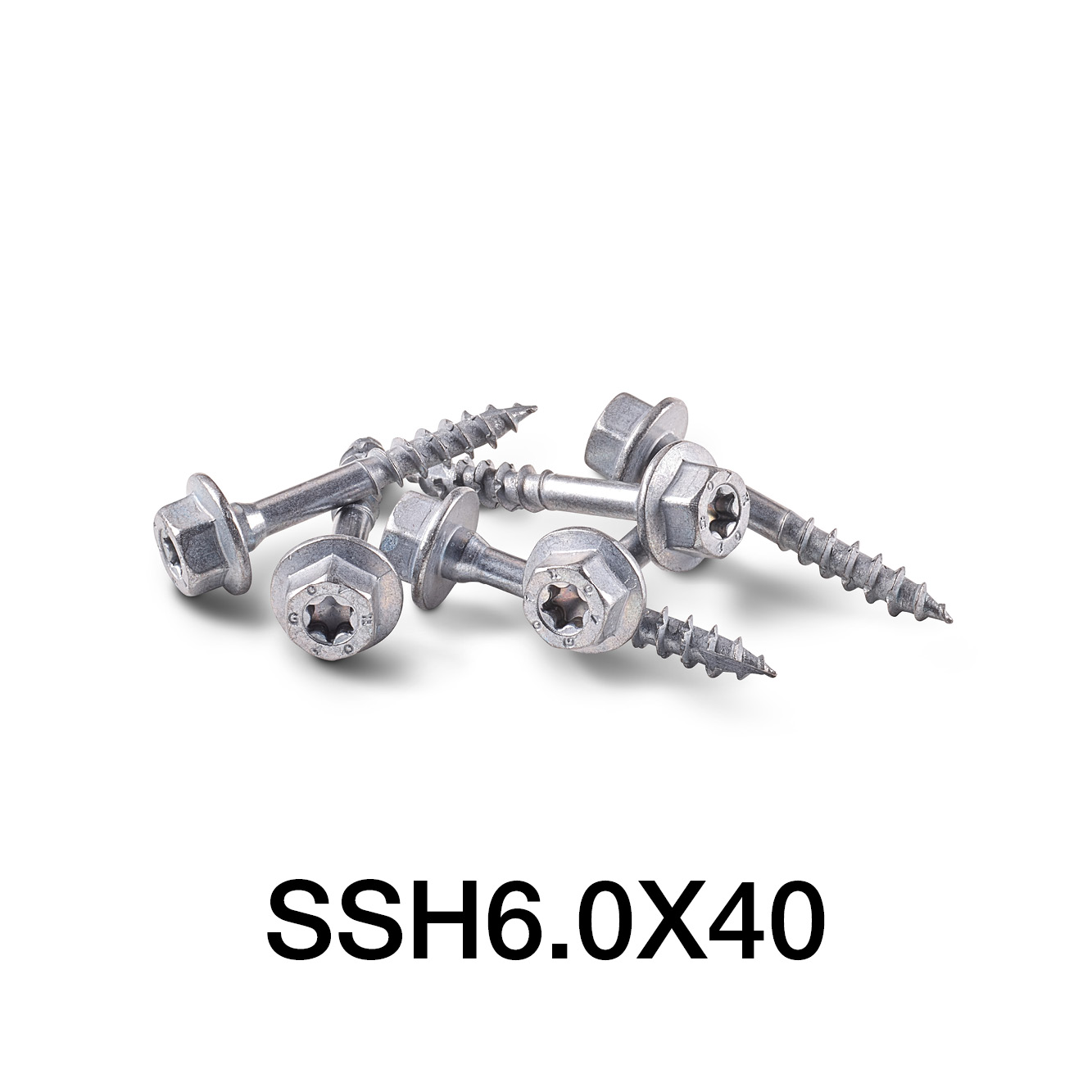

6.Ø diameter SHH screws feature a Hex-Washer head.

Characteristic properties

References	Product characteristic properties
References	Characteristic Yield Moment - M_y,k [Nm]	Characteristic withdrawal parameter - f_ax,k,90° [N/mm²]	Characteristic head pull-through parameter - f_head,k [N/mm²]	Characteristic tensile capacity - f_tens,k [kN]	Characteristic torsional strength - f_tor,k [Nm]	Torsonial ratio
SSH6.0	10.4	13.3	17.9	13.1	11	≥ 1,5
SSH8.0	25.3	13.9	19.5	24.1	26.4	≥ 1,5
SSH10.0	38.7	12.1	19.3	32.8	43	≥ 1,5
SSH12.0	52.3	12.2	18.8	40.4	62.4	≥ 1,5

SSH8.0x40 and SSH10.0x40 characteristic properties are available in compatible products datasheets with these screws (see above table).

Abacus

Steel to Timber characteristic capacities

SSH6.0X40
SSH6.0X50
SSH6.0X60
SSH6.0X75
SSH6.0X90
SSH6.0X120
SSH8.0X40
SSH8.0X50
SSH8.0X60
SSH8.0X80
SSH8.0X90
SSH8.0X100
SSH8.0X120
SSH8.0X140
SSH8.0X160
SSH8.0X180
SSH8.0X200
SSH8.0X240
SSH8.0X260
SSH8.0X280
SSH8.0X300
SSH10.0X40
SSH10.0X50
SSH10.0X60
SSH10.0X80
SSH10.0X90
SSH10.0X100
SSH10.0X120
SSH10.0X140
SSH10.0X160
SSH10.0X180
SSH10.0X200
SSH10.0X240
SSH10.0X280
SSH12.0X60
SSH12.0X80
SSH12.0X90
SSH12.0X100
SSH12.0X120
SSH12.0X140
SSH12.0X160
SSH12.0X180
SSH12.0X200

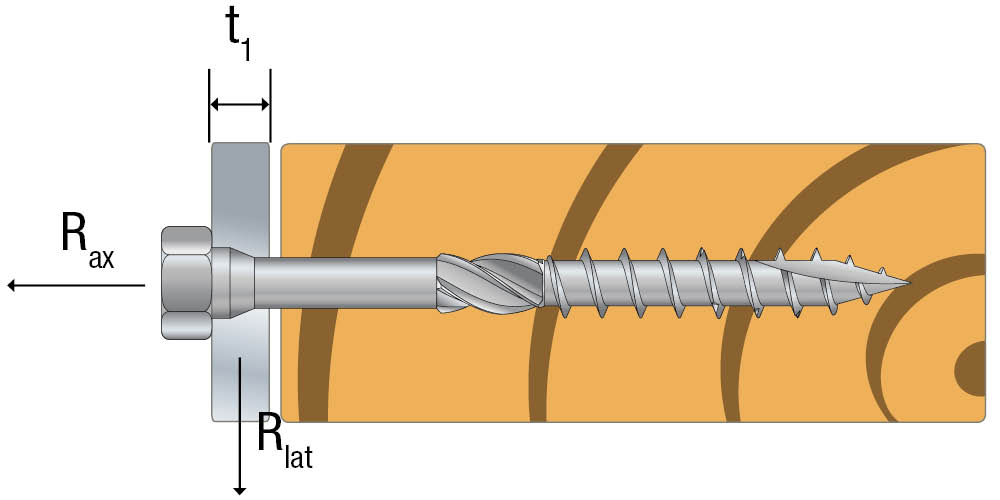

Shear capacities are given for thick (t_st = d) and thin (t_st = 0,5xd) steel plates under the following configurations:

Load axis at 0° from timber grain R_v.0°.k
Load axis at 90° from timber grain R_v.90°.k

These capacities are valid for C24 timber grades or higher.
For intermediate steel thicknesses, capacities shall be calculated by linear interpolation between the limiting thin and thick plate values.
The pre-drilled hypothesis for capacity and distances calculation is fulfilled.
