Connectors
Timber Connectors

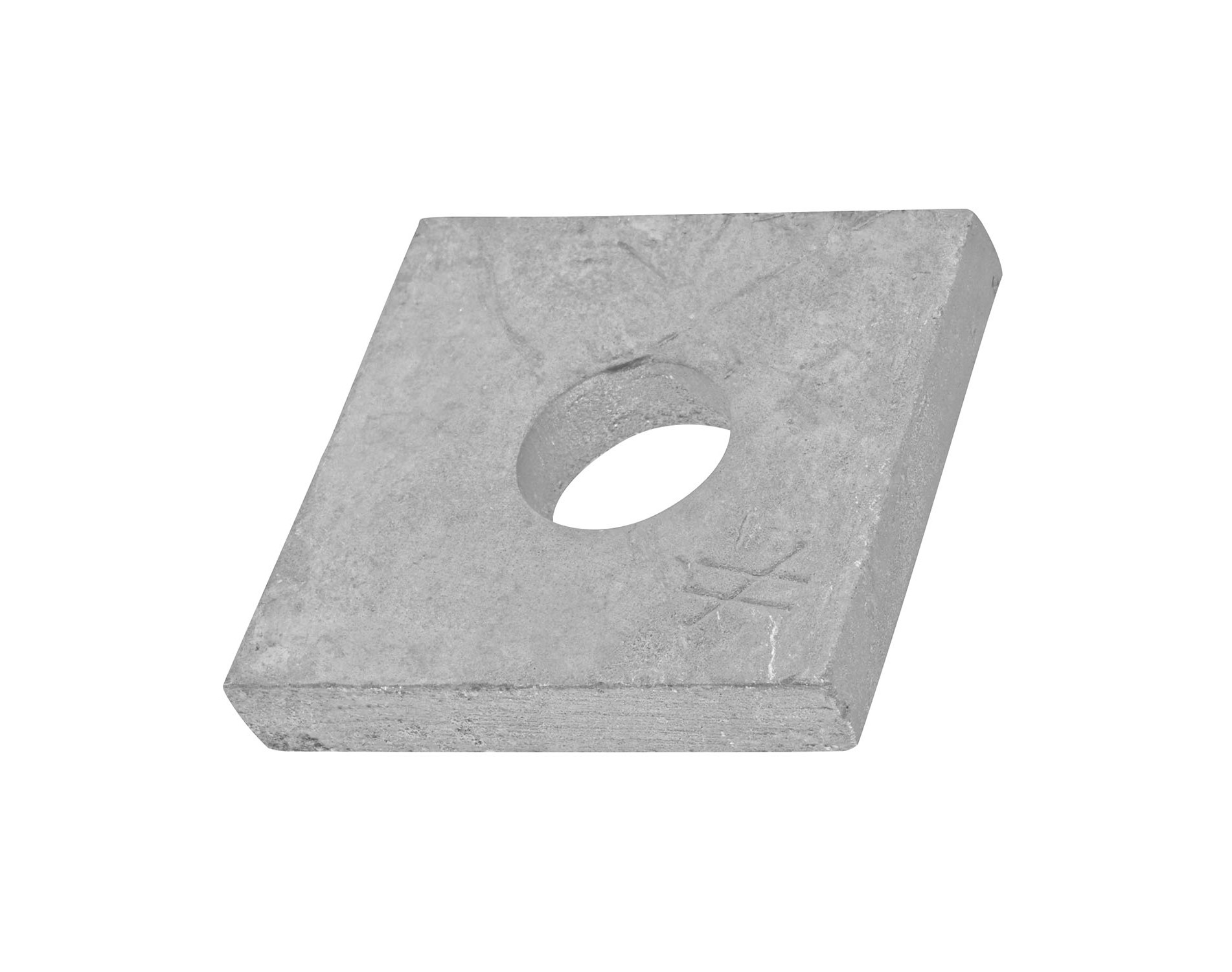

US40

US washer

Pads of various sizes are designed to suit the products Simpson Strong-Tie®.

Technical Data Sheet
Service class 3
Outdoor
Galvanised steel

Product Details

Images

Fig. 1: Installation med 1 plade i bunden, 45 mm
HTT5 + US50-50-8G-B profil.jpg

Features

Material

  • AH29050/2-FR: galvanized steel S250GD + Z275 according to NF EN 10346.
  • US40/50/10G washer: steel S235JR + hot-dip galvanized finish.

Benefits

  • Low-width anchor for use in frame uprights 45 mm wide.
  • Anchors the wood-frame wall solidly into the ground (recommended in seismic zones).
  • Reinforces the upright-lower plate connection by preventing the uplift of the upright.

Thus, energy is dissipated in the panel through the stitching.


Application

Applicable materials

Wood, wood products, steel

Application area

• Load distribution in surface tension rods or angle

Technical Data

Dimensions


Dimensioner

References Dimensioner [mm]
A B Tykkelse Holes
US40/40/10G-B40401013.5
US40/50/10G-B40501013,5x25
US50/50/8G-B5050817.5

Installation

Installation

Installation

  • Det er vigtigt at underlagsskiven vælges og vendes således, at skiven er tæt på beslagets bukkekant
Fig. 1: Installation med 1 plade i bunden, 45 mm
Fig. 2: Installation med 2 plader i bunden, 45 mm
Fig. 3: Installation af indvendig væg
HTT5 + US50-50-8G-B profil.jpg
